G703 Корпус батареи

Источник:

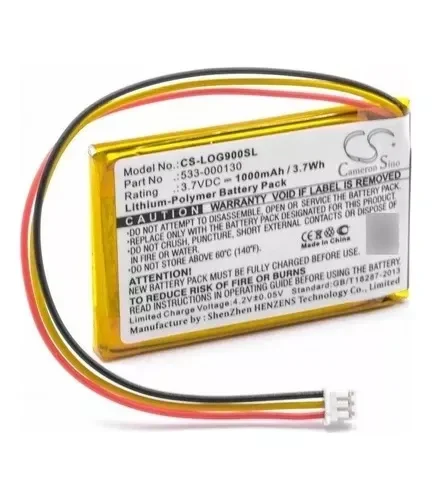

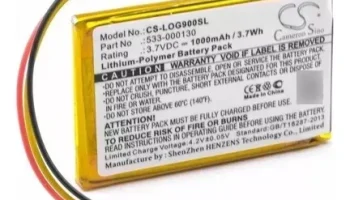

The battery life of my Logitech G703 Hero started to decrease, so I wanted to change it, but I could not find a 240mAh replacement, so I bought a 1000mAh one (CS-LOG900SL).

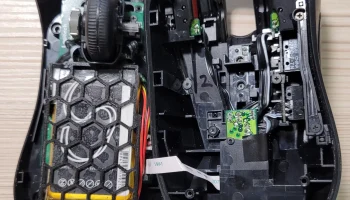

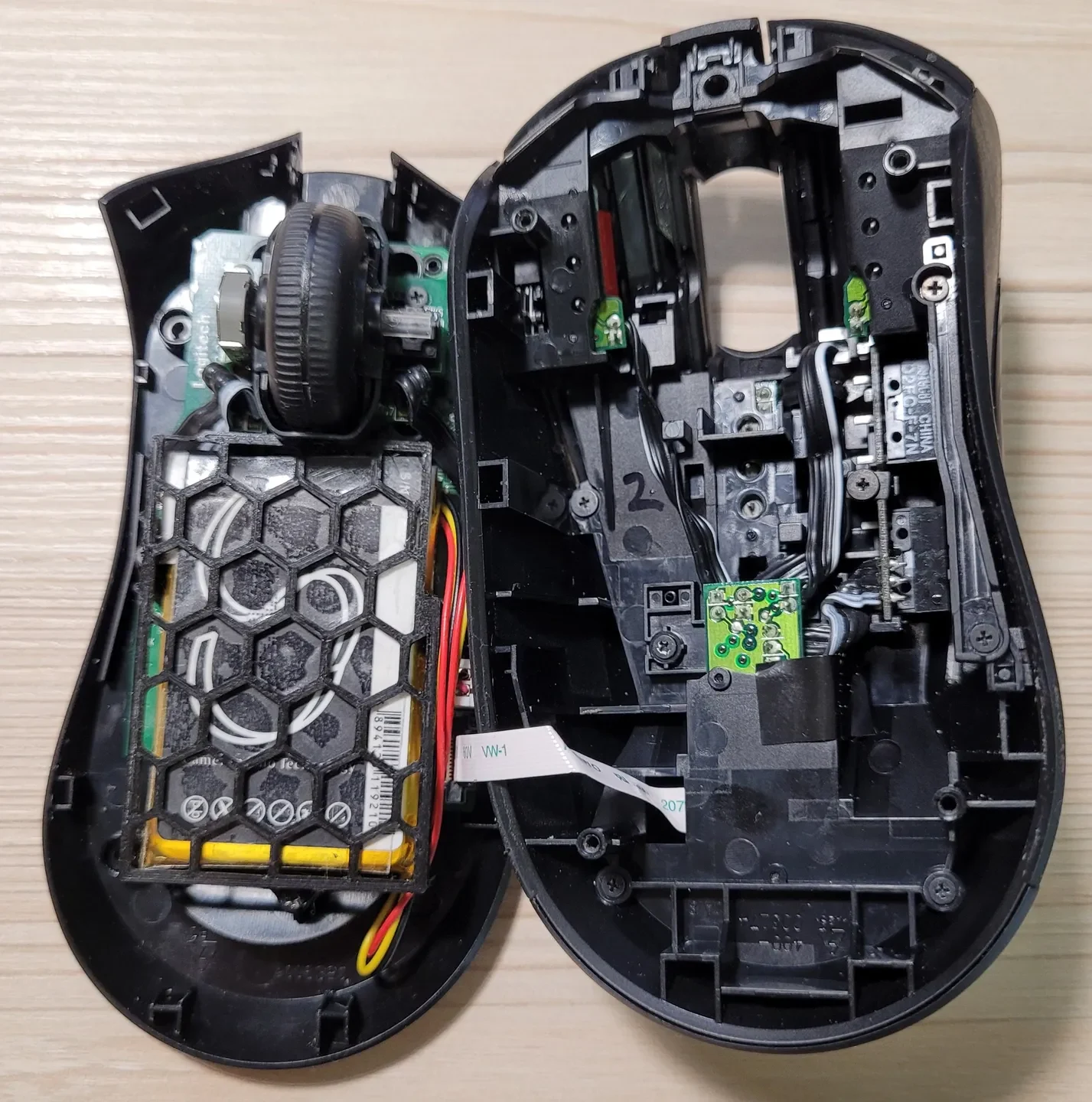

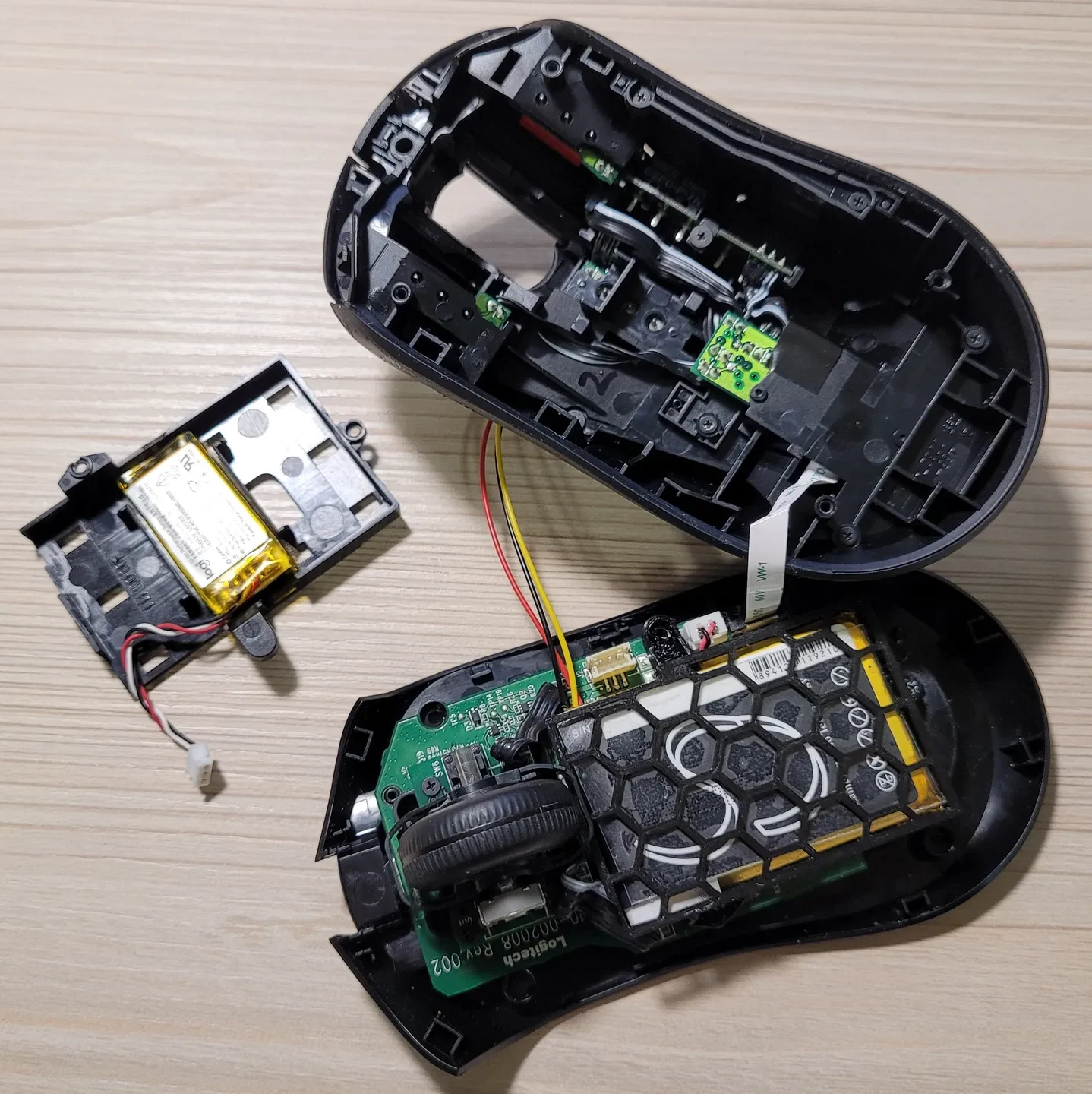

However the battery housing of the G703 Hero is designed for a 533-000151 battery and doesn't fit a 533-000130 one, so I had to design this. The bigger battery weighs 22g (ouch) so I tried to make the housing as light as possible.

Use your lightest material.
Print with 5 walls, 5 tops, 5 bottoms.
Supports: Yes

Weight: ~1g
