Sink Edge Driptray Wide

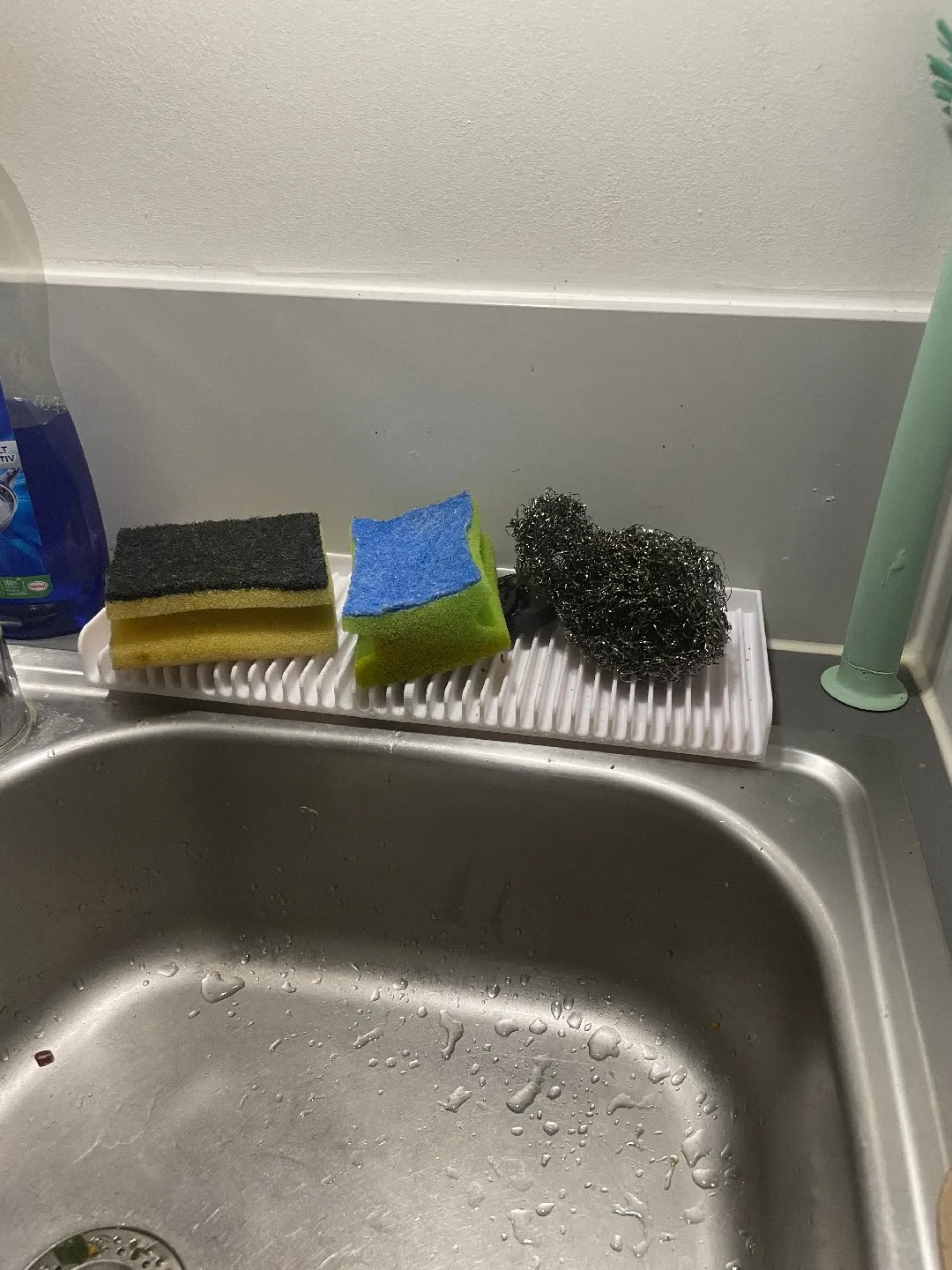

A driptray I designed myself since I didn't finde any suitable ones. It fits my sink perfectly so don't expect it to be perfect for yours. I recommend cutting the edge of one side off to print it and hold it against your sink to check!

It is designed to not drip inbetween the connecting rib. The connector is supposed to be screwed in with M3 screws. You might want to drill the holes out larger if your print isnt as flush on the connecting surfaces of the two pieces. The front edge prodtrudes over the sink edge so that any drips are joining the sink.

Print the file with at least 2-3 perimeters. Print it on the backside on the build plate to not have to use any support material!

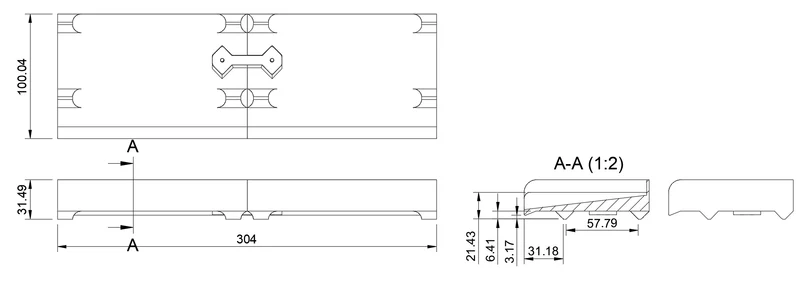

Dimensions are posted in the drawing in mm.

Hmu if you like it or printed it! It's worked very fine for me so far!
