Система крепления внешней отделки точечного светильника

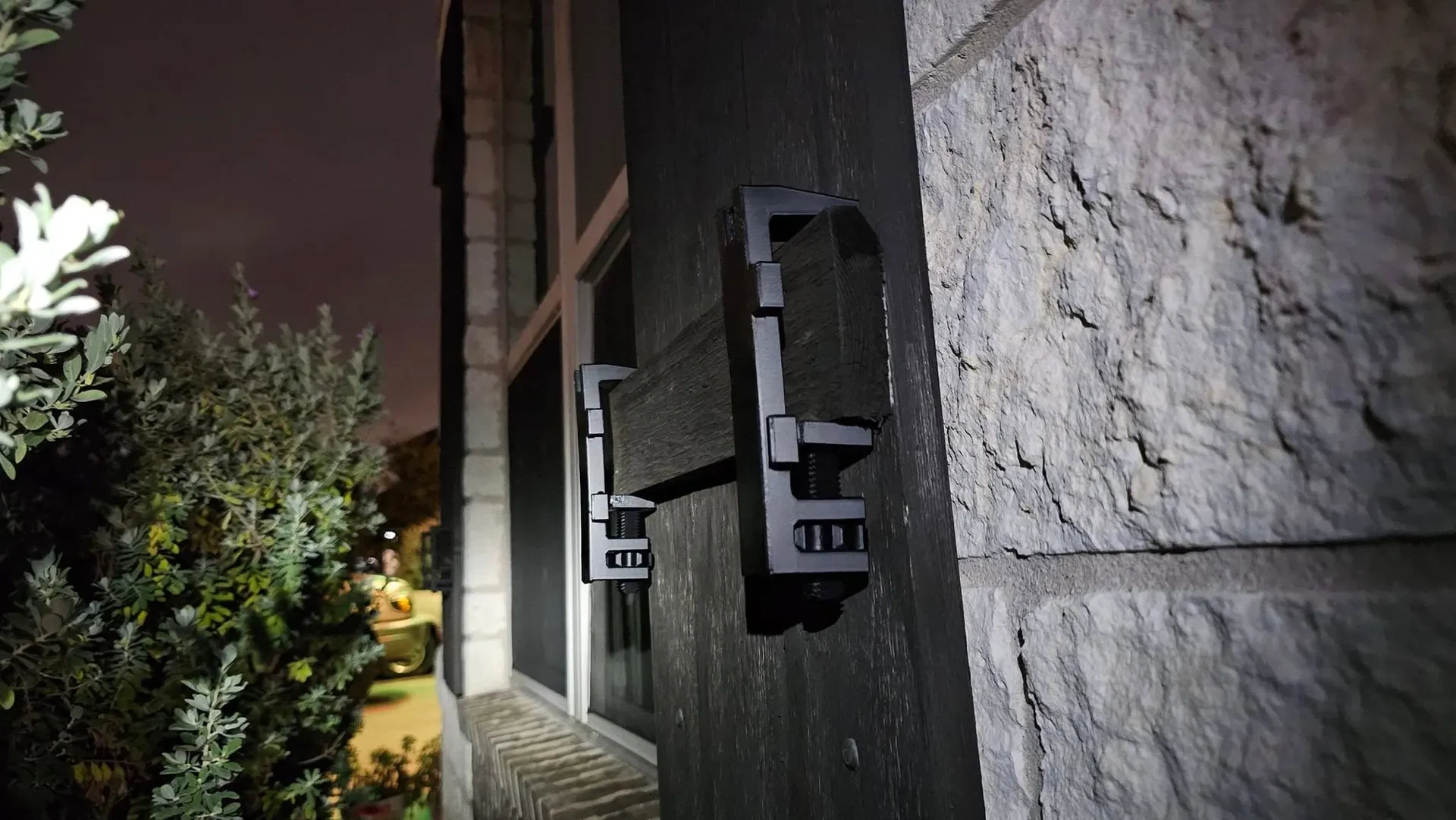

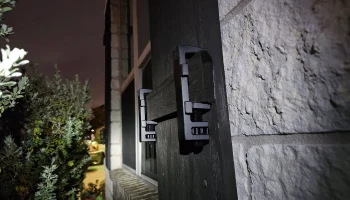

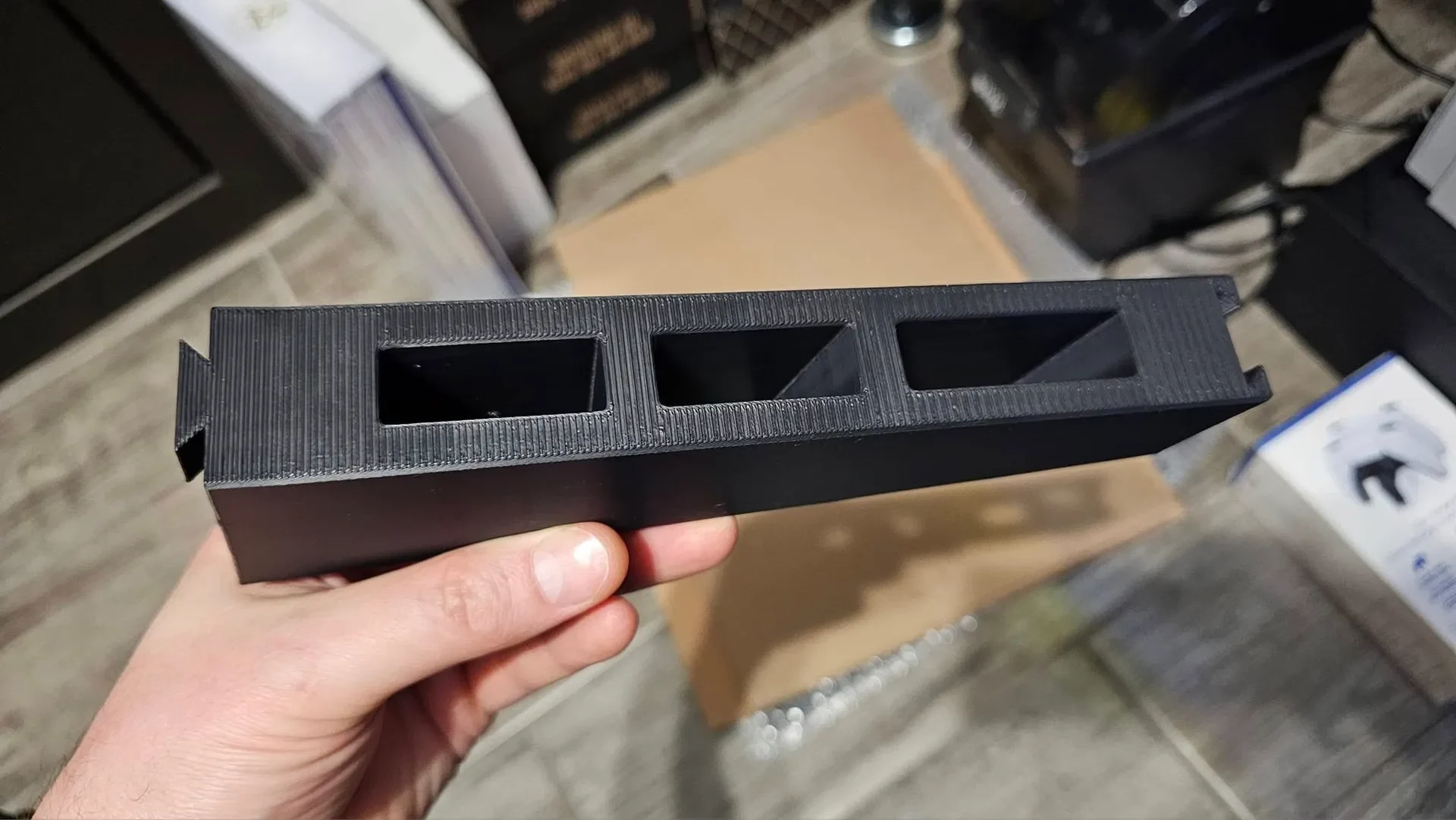

Remix of the modular table clamp system that I adapted for clamping to horizontal home exterior wood trim pieces, in my case wood fake shutters. I added traction grip to the top jaw plus a small hook to the «beak» that lets it bite into the top of the wood and changed up the bottom jaw to a square design with traction added to let it bite into the bottom of the wood. I lengthened the clamp itself plus elongated the slots for the screw to pass through to allow the top and bottom jaws to clamp closer to the bottom of the clamp itself. Also added to the clamp body is 2 cable hooks on the side to help guide device cables in a more organized manner.

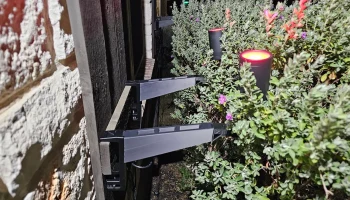

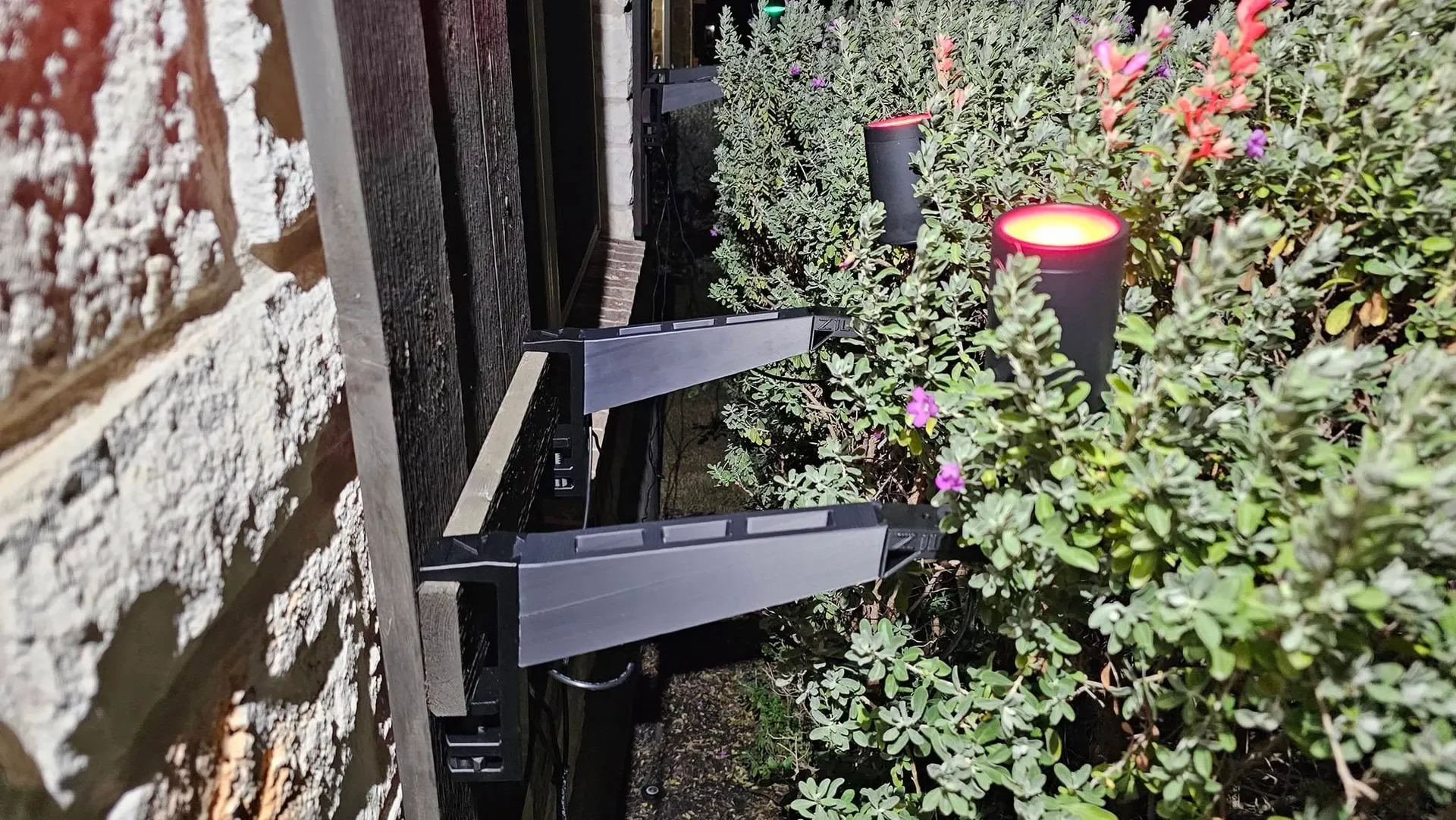

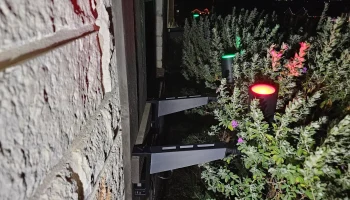

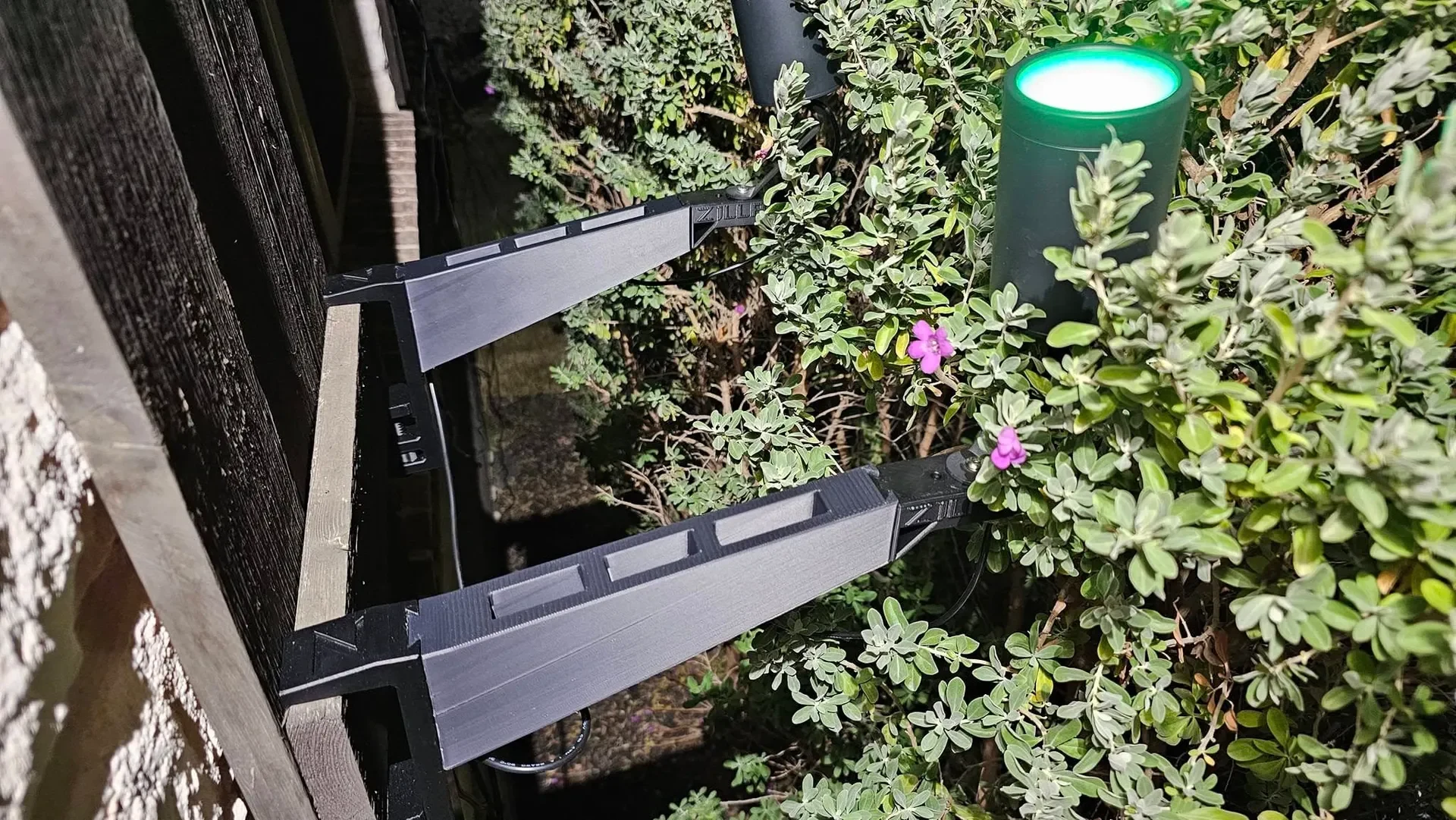

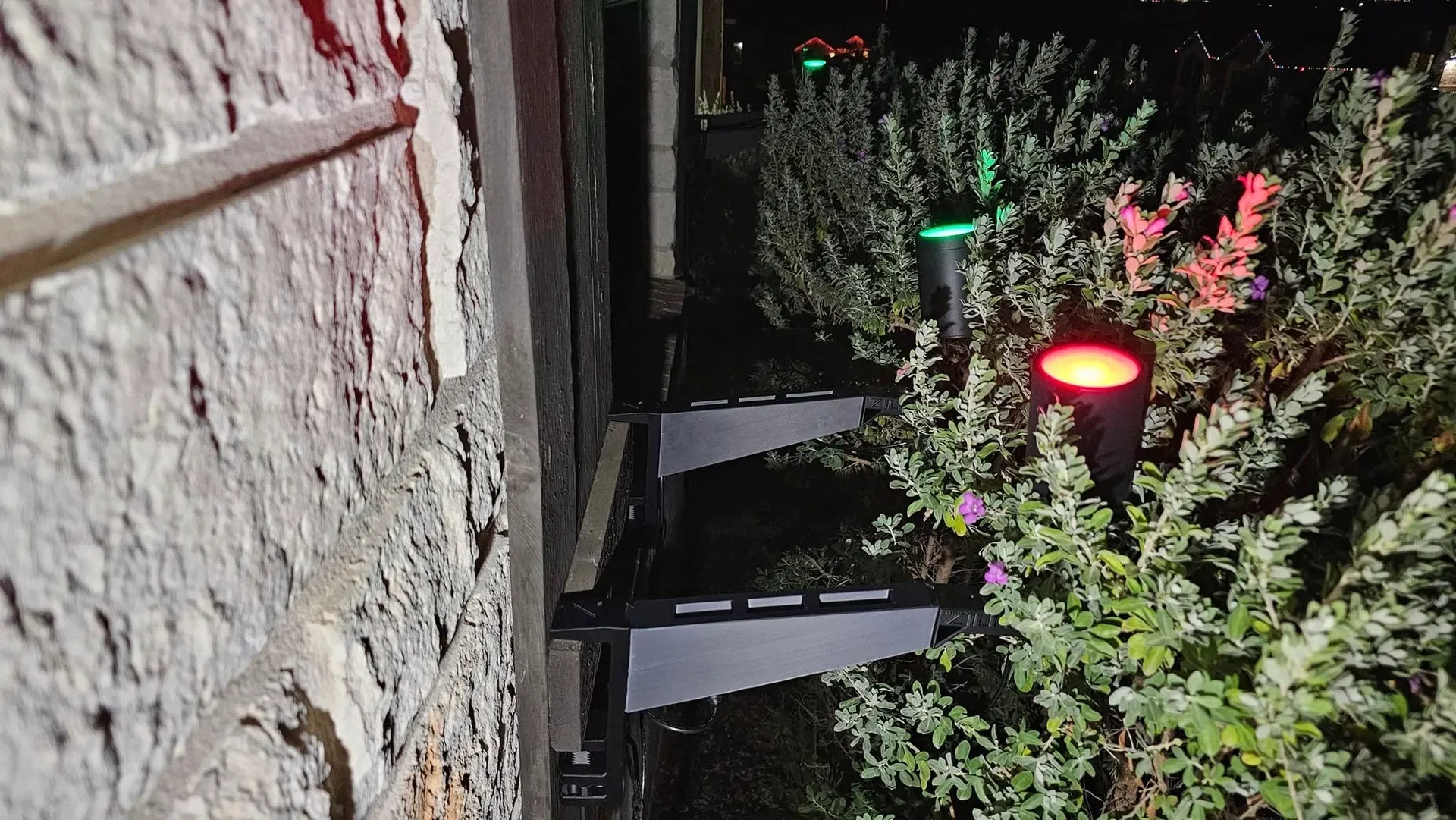

With the changes to the clamp and lower jaw I also changed the clamp attachment piece to full new design for bolting on spot lights, cameras, and other objects. For my use I printed 4 of these systems and bolted on 4 Govee spot lights that I clamped to the front of my home, as shown in photos. I also designed an extension arm to help push the spot lights further from the home. The extension arm uses the same attachments so you can bolts the attachment plate directly to the clamp body or to the end of the extension arm which you attach to the clamp body depending on your needs.

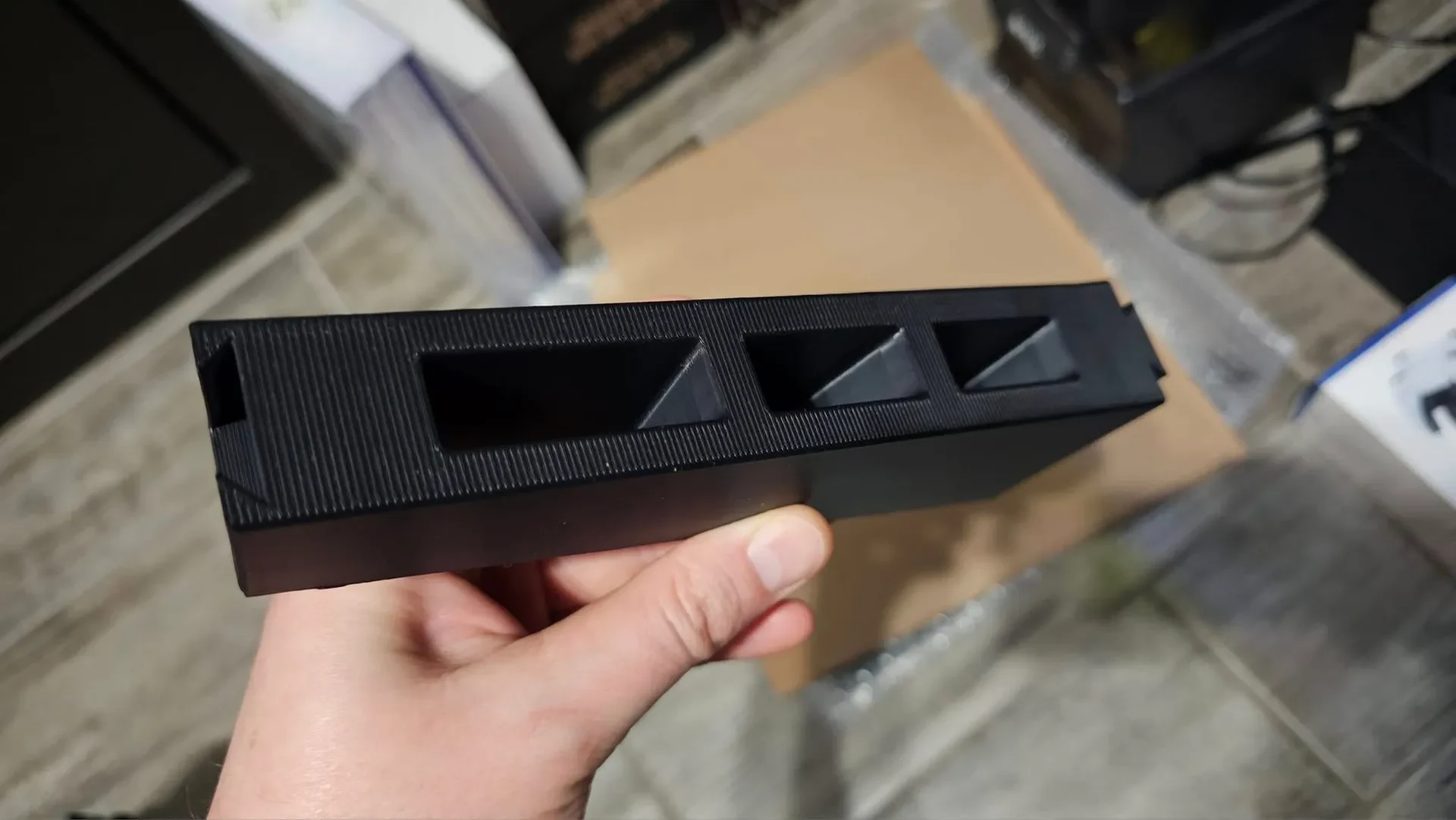

I printed these for my own use in ASA with 30% infill utilizing gyroid. The clamp body I print on it's back. The extension arm I print on the slope side down. I used organic tree supports.

I included the step files and stl files for the parts I built or modified/remixed from the original.
