Надувная шайба

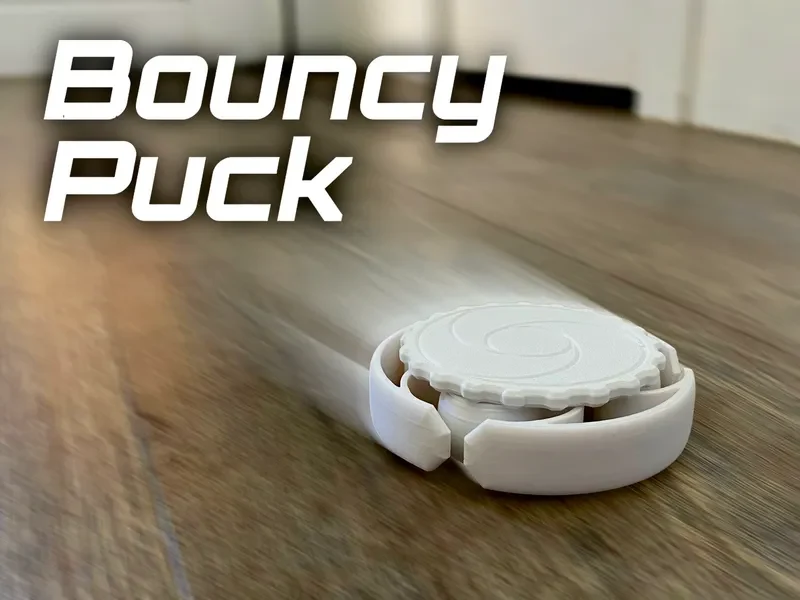

This is a puck that glides across smooth, hard surfaces and bounces off of walls. Чтобы внести ясность: это не хоккейная шайба без льда. It is simply too weak to handle the force of being consistently hit by a hockey stick. Вместо этого его можно пнуть или толкнуть.

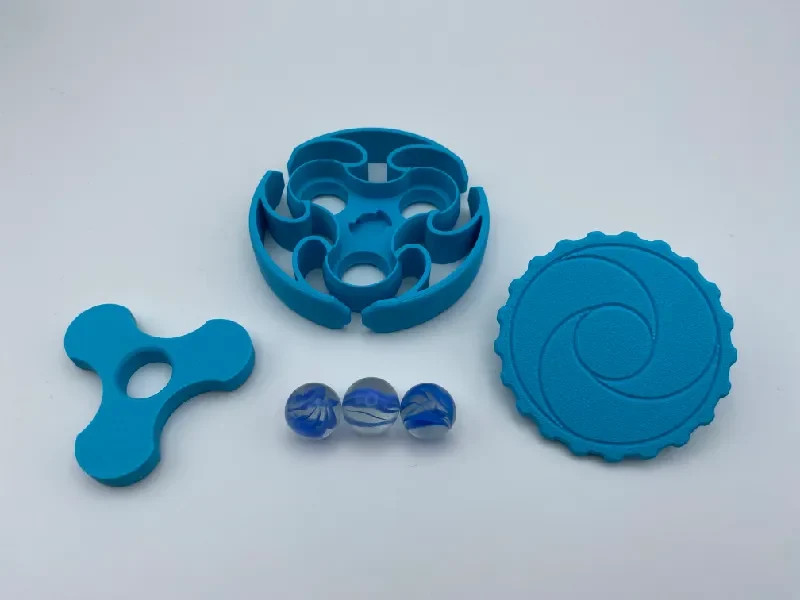

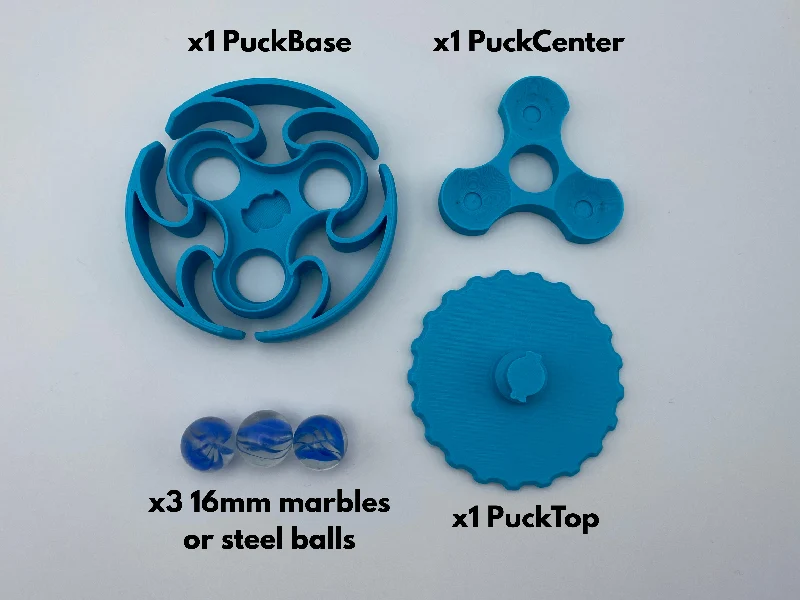

You will need to print the PuckBase, PuckCenter, and PuckTop files. Make each of these with their recommended filament (listed below). You will also need three 16mm precision chrome steel balls OR three 16mm marbles. Note: Marbles don't have the same dimensional accuracy as the steel balls. «16mm» marbles can actually range from having 15mm to 17mm diameters. Make sure that if you are using marbles, their diameters are in the range of 15.5mm to 16.5mm.

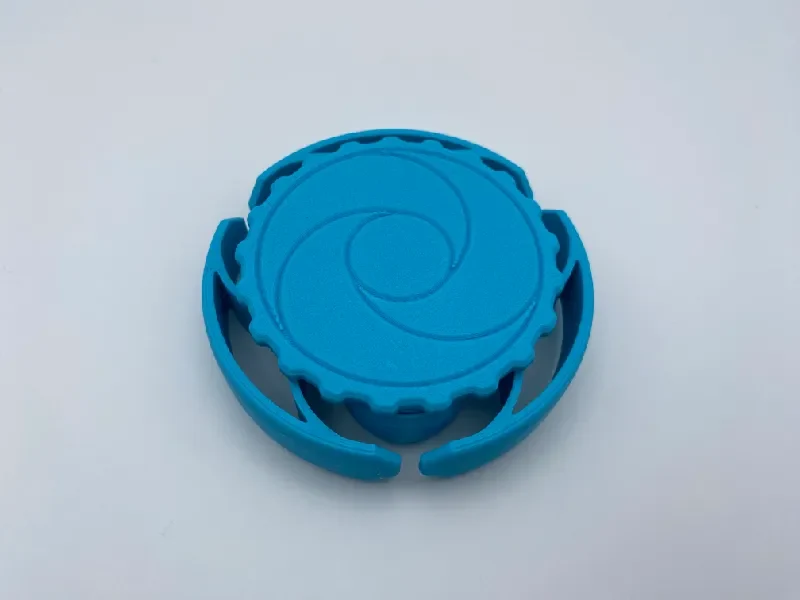

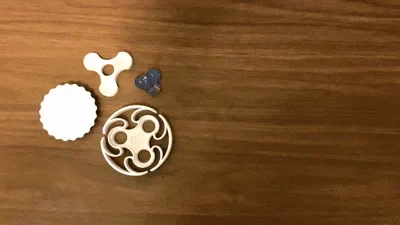

Place the three balls into the PuckBase, then cover them with the PuckCenter part. Insert the shaft of the PuckTop into the center hole and twist it clockwise until it snaps into place.

Нити для использования в каждой детали

База шайб:

Я рекомендую использовать PETG.

ABS or PLA can work, but PETG will be the most durable

ПакЦентр:

Я рекомендую использовать PLA из-за его гладкой текстуры.

ABS can also work, but it's just harder to print

ШайбаТоп:

PETG, ABS или PLA на ваш выбор.
