Аккумуляторный блок Quicko T12 (Makita 18 В, Parkside 20 В)

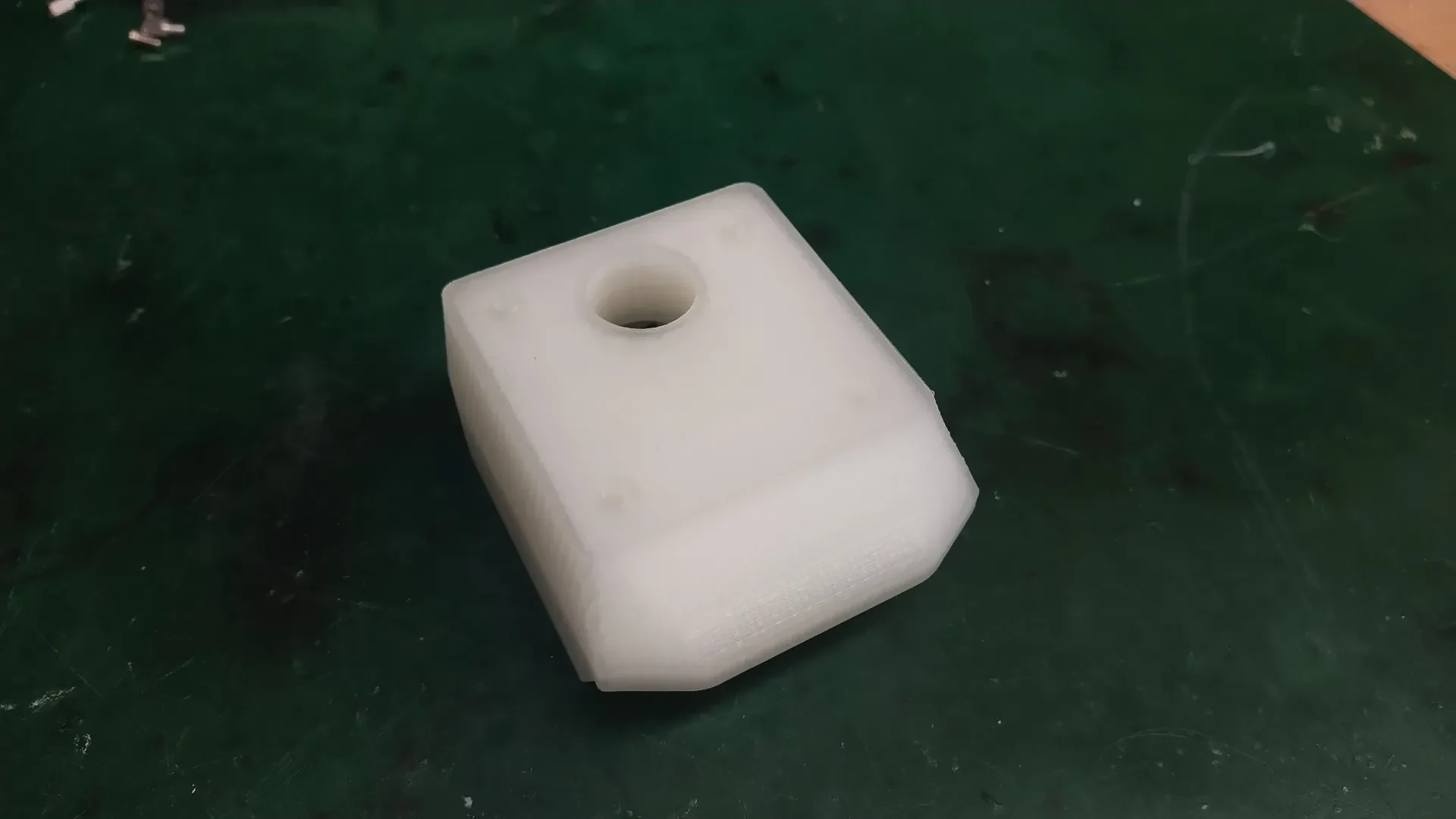

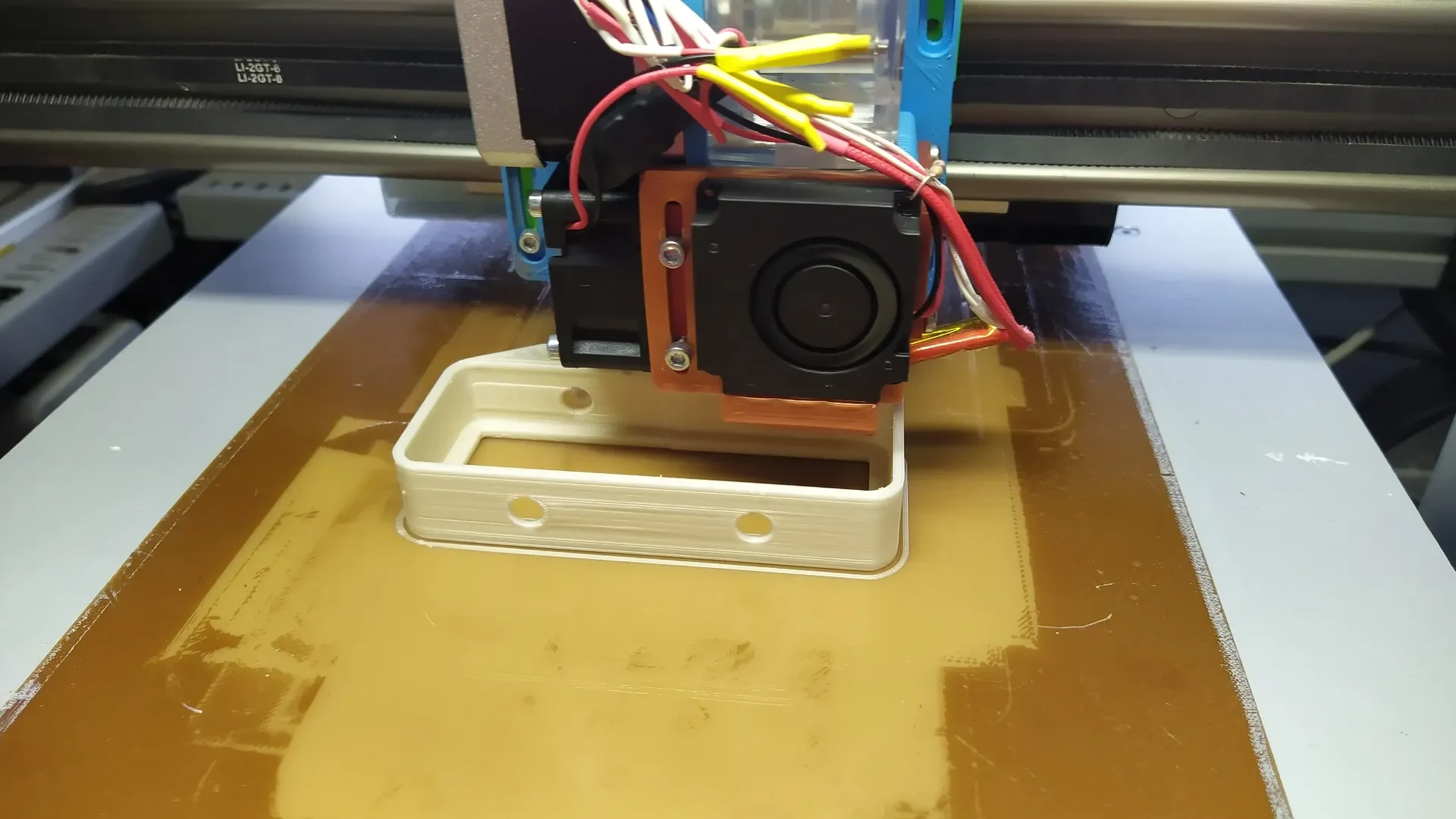

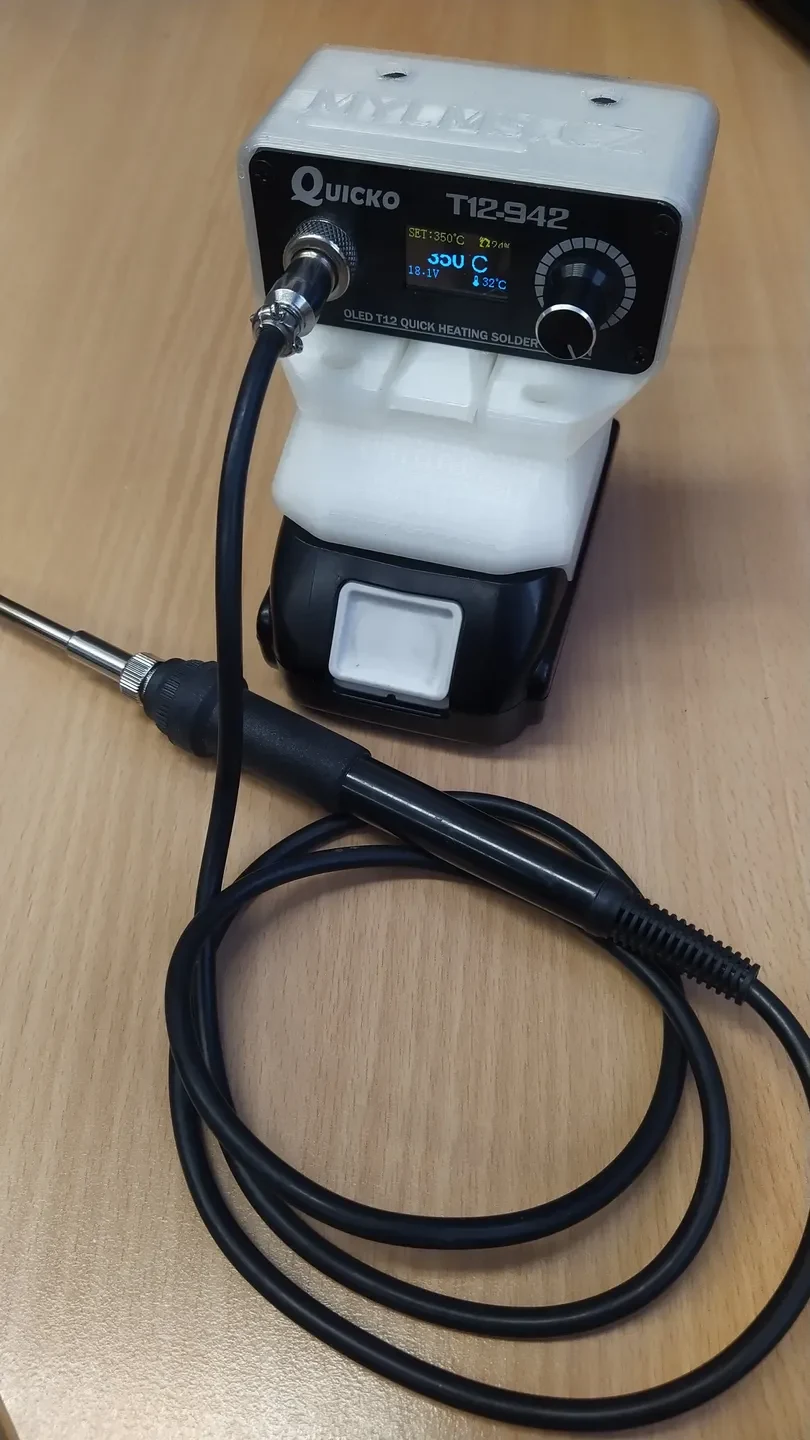

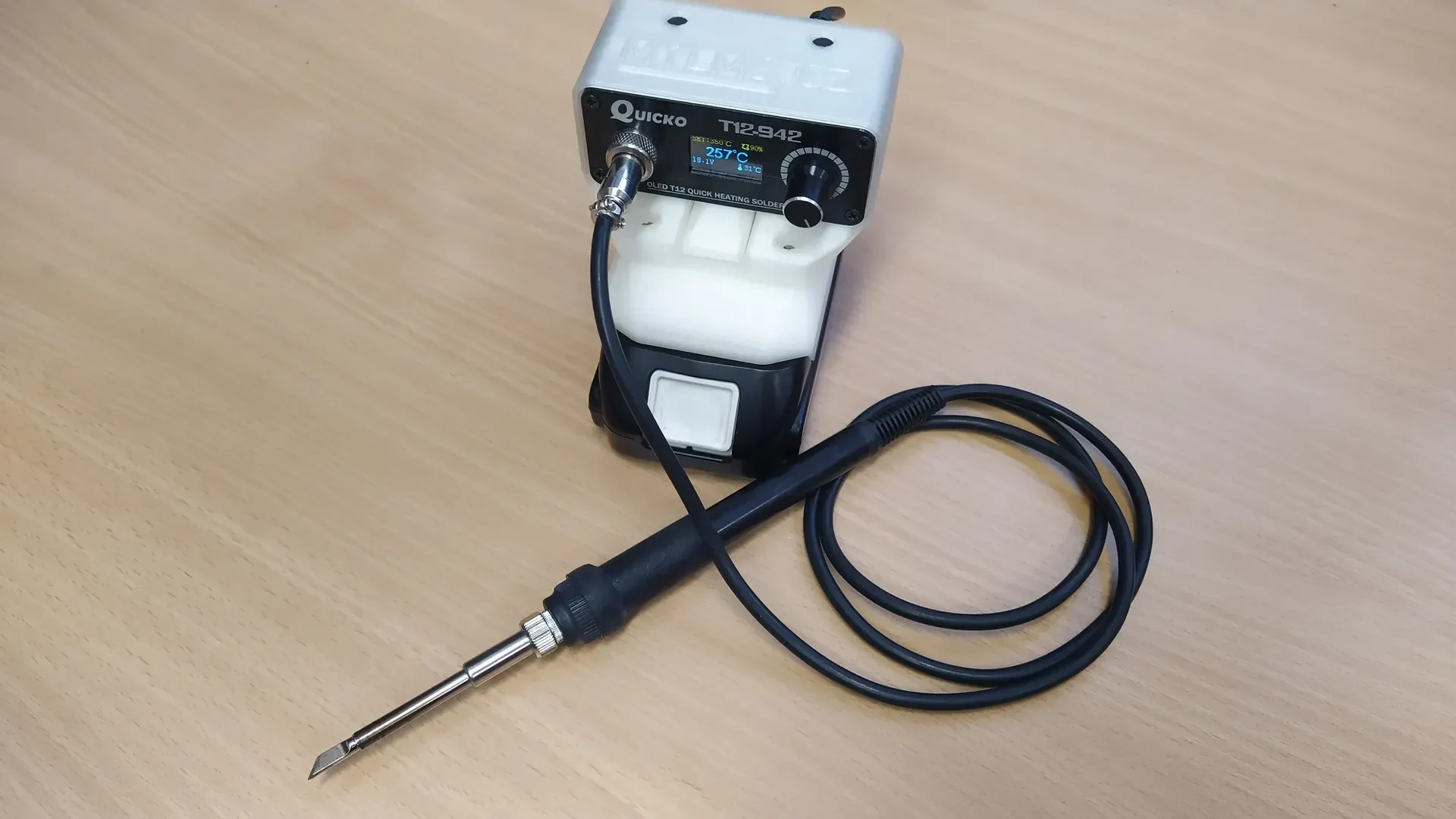

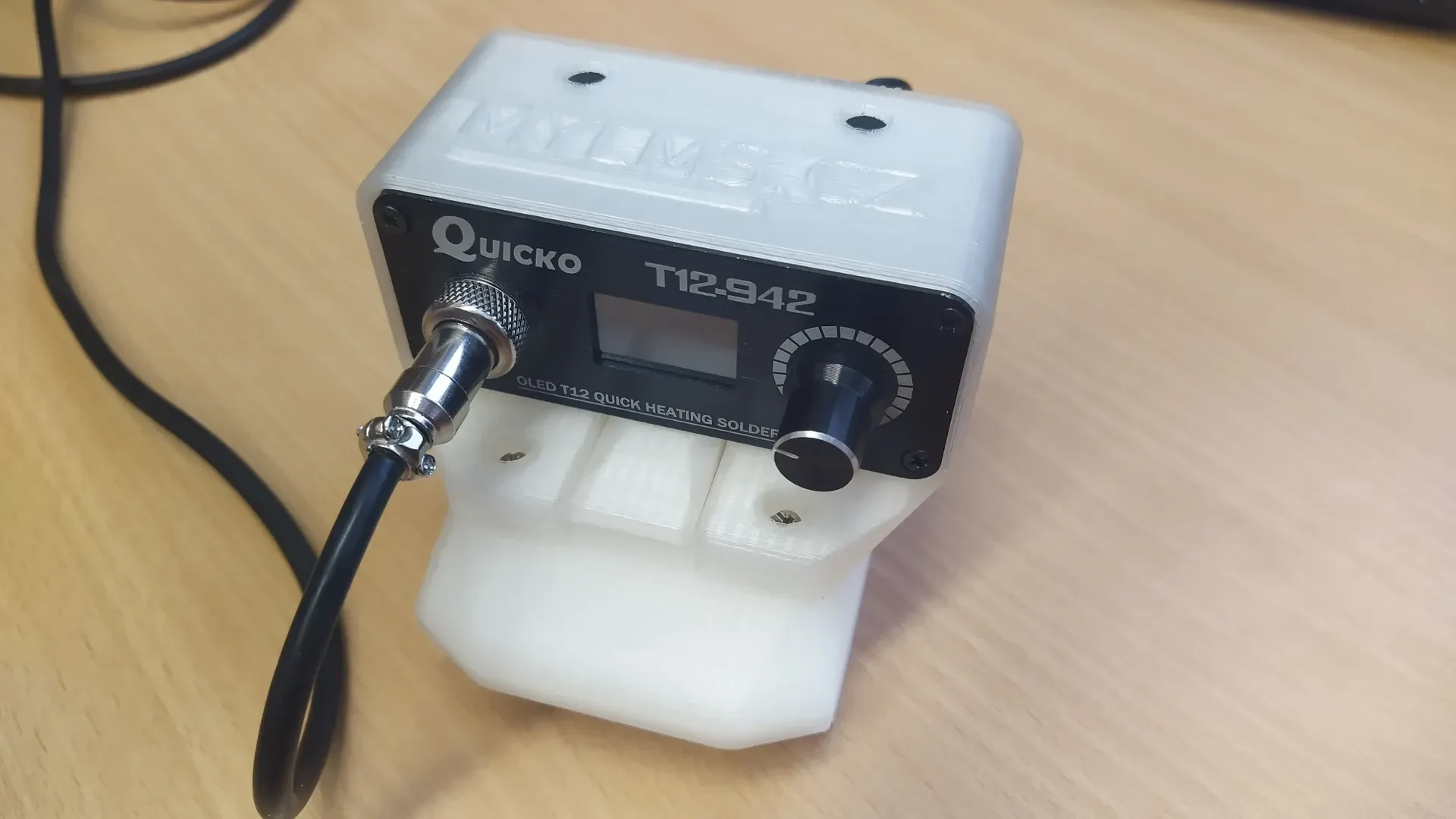

Easily printable extender for Quicko T12 microsolder and its other clones of the same size, which allows this microsolder to be elegantly operated on batteries designed for Makita or Parkside hand cordless tools, which is useful not only in the workshop, but especially for small repairs in the car, or on the road, etc. The soldering station is inserted from the front into the corresponding hole by slightly pressing the latch on the underside of the top part. Чтобы снять станцию, просто еще раз слегка нажмите на рычаг защелки. Это фиксирует станцию в держателе и предотвращает ее выпадение, например, во время манипуляций или протягивания кабеля паяльной ручки. The attachment itself is designed as a two-part unit for easier printing without supports, with the lower part serving for connecting the battery (it is possible to choose a version for Makita or Parkside batteries) and the upper part forming the grip itself. Здесь можно выбрать версию без текста или с текстом (индивидуальную версию можно редактировать в прилагаемом файле .scad).

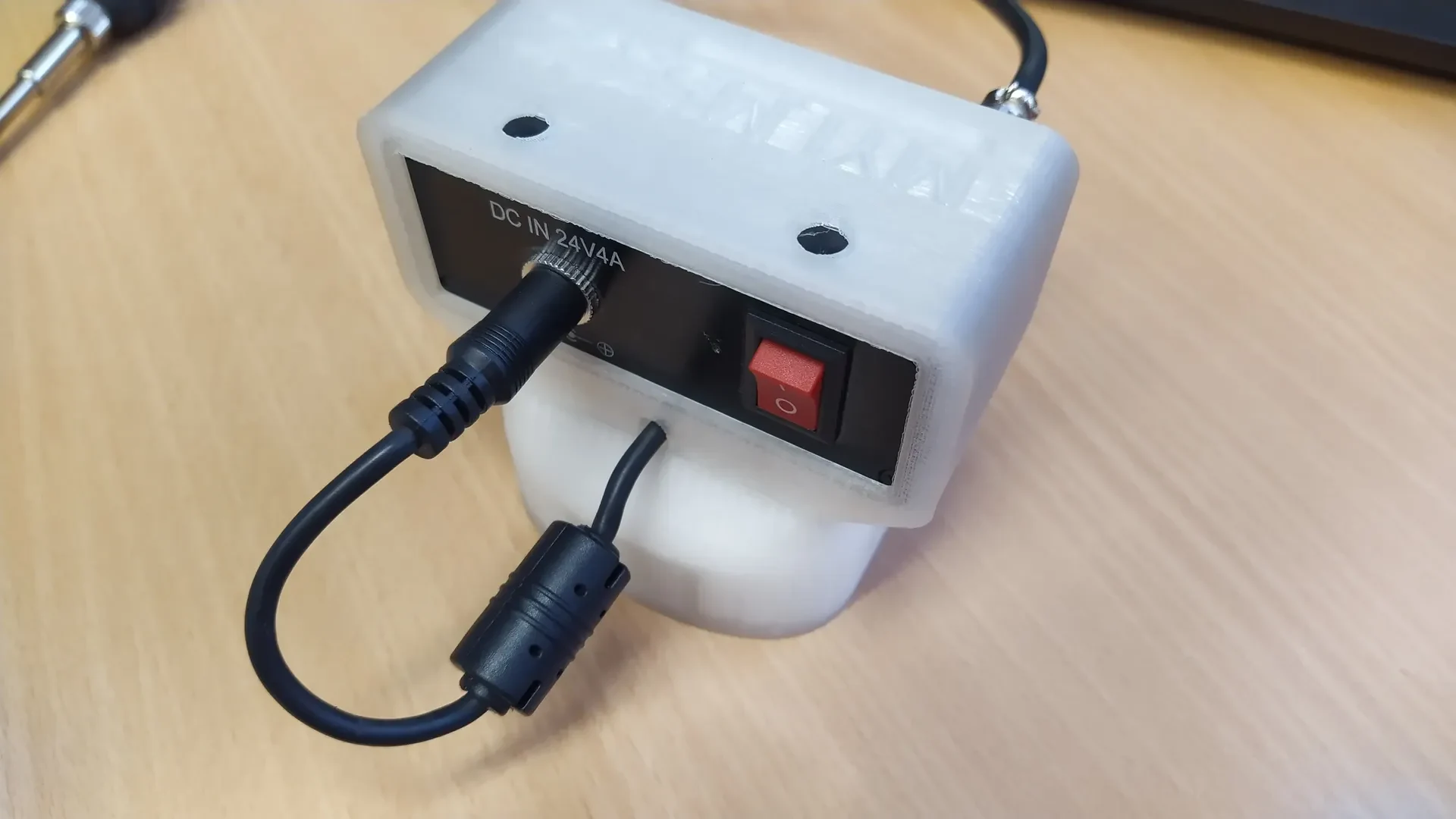

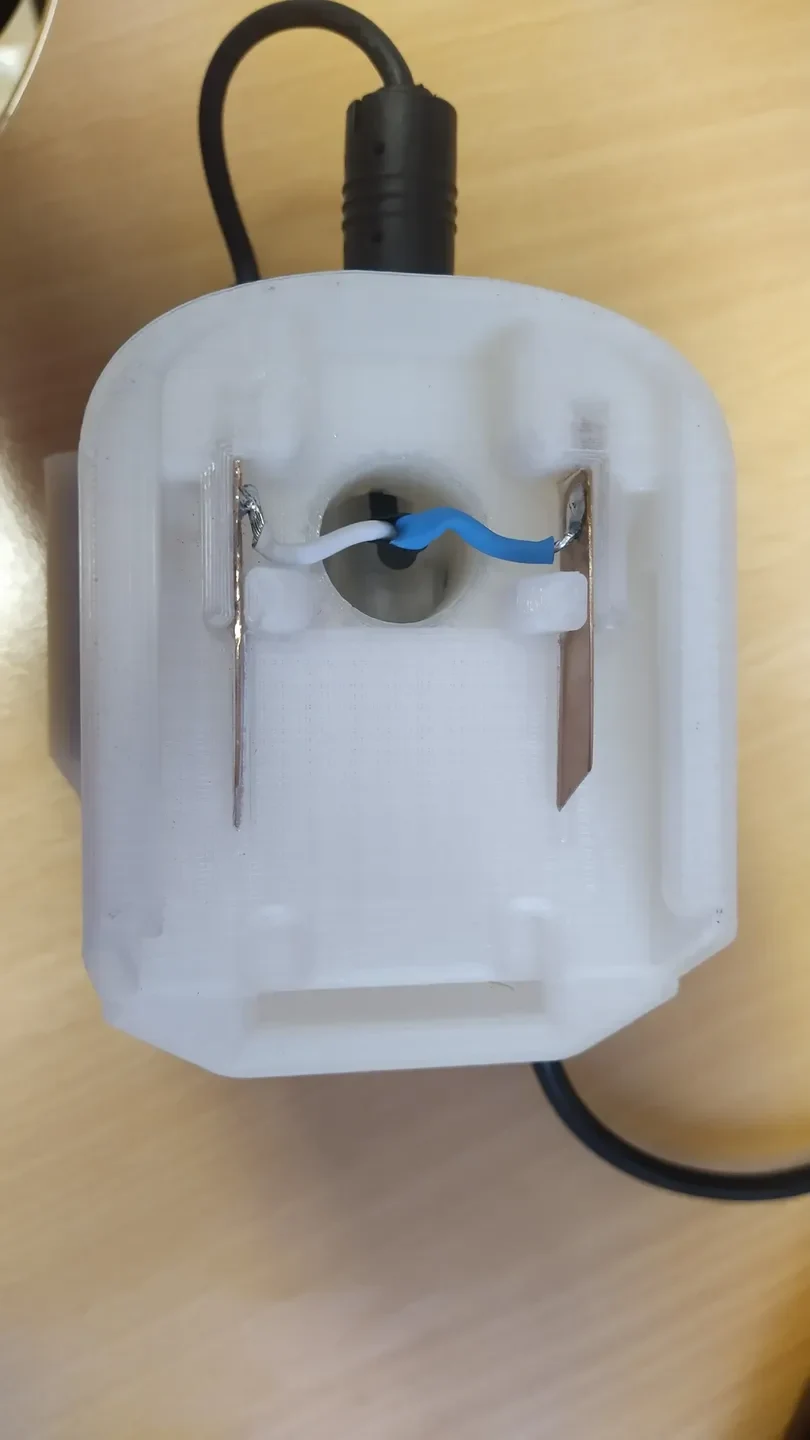

To assemble, you will need 4 M3x10 screws, 4 M3 threaded inserts, a power cord for the soldering iron and suitable material to make the contacts for connecting to the battery (in the case of the Makita battery version this is two ideally 10x45x0.5mm copper strips. For Parkside then two phased connectors — 4.8mm pins)
Материал:

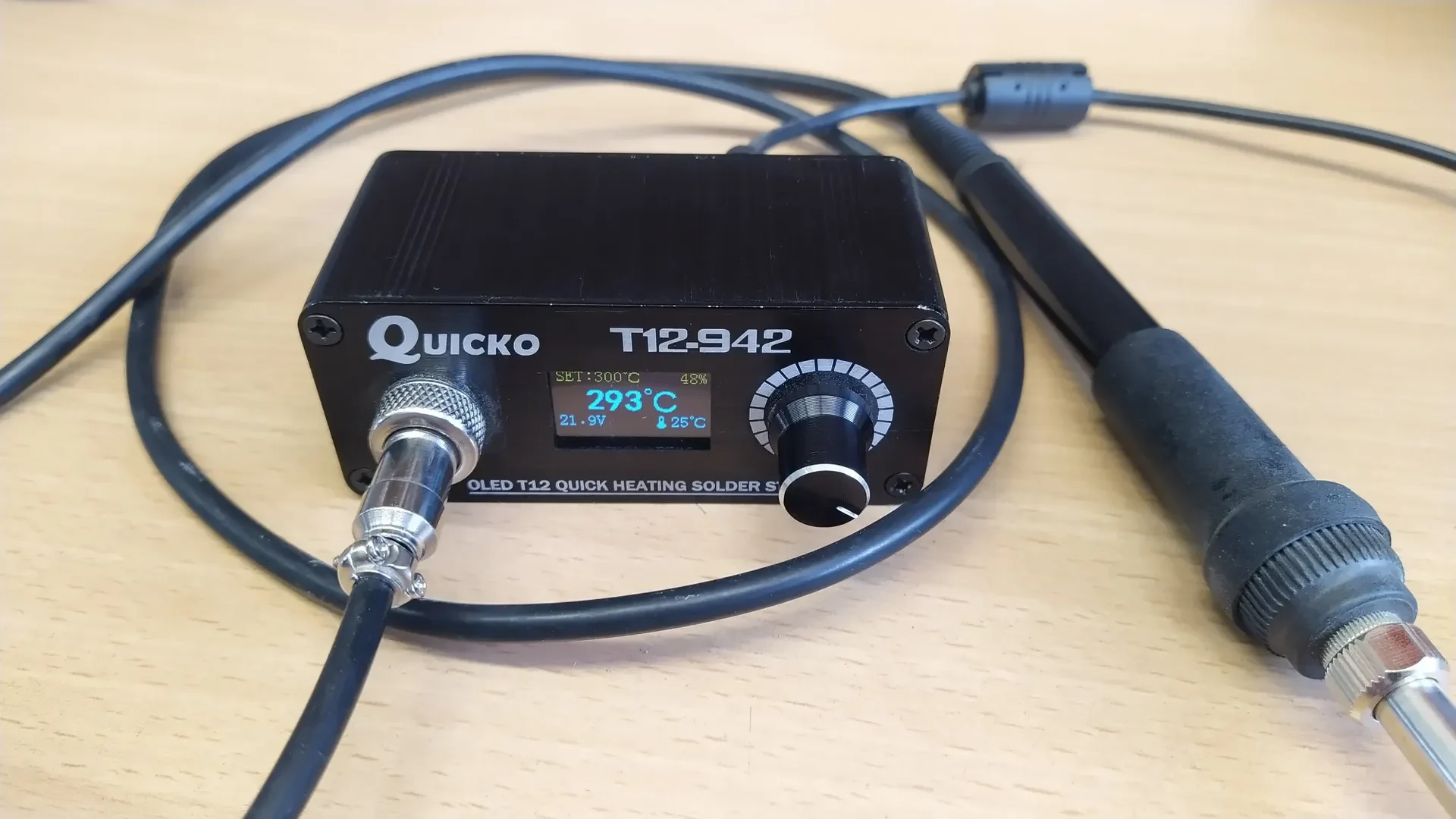

Soldering station — https://www.banggood.com/cs/Quicko-T12-942-MINI-OLED-Digital-Soldering-Station-T12-907-Handle-with-T12-K-Iron-Tips-Welding-Tool-p-1326151.html
Резьбовая вставка вариант 1 — https://www.tme.eu/cz/details/dr11m3/zavitove-vlozky/dremec/11m3/
Резьбовая вставка вариант 2 — https://www.tme.eu/cz/details/kvt-001m3/zavitove-vlozky/kvt-fastening/300113358/
Разъемы Faston — https://www.tme.eu/cz/details/2673.05.00.9/konektory-neizolovane/imp/
[Чехия]
Článek o této pájce od mého kamaráda Peťana, na jehož popud tento úchyt vnikl, je dostupný na: https://www.mylms.cz/pajeci-stanice-t12-s-adapterem-na-akumulator/
