100W PD Power Bank USB-C (IP2368, 4S1P)

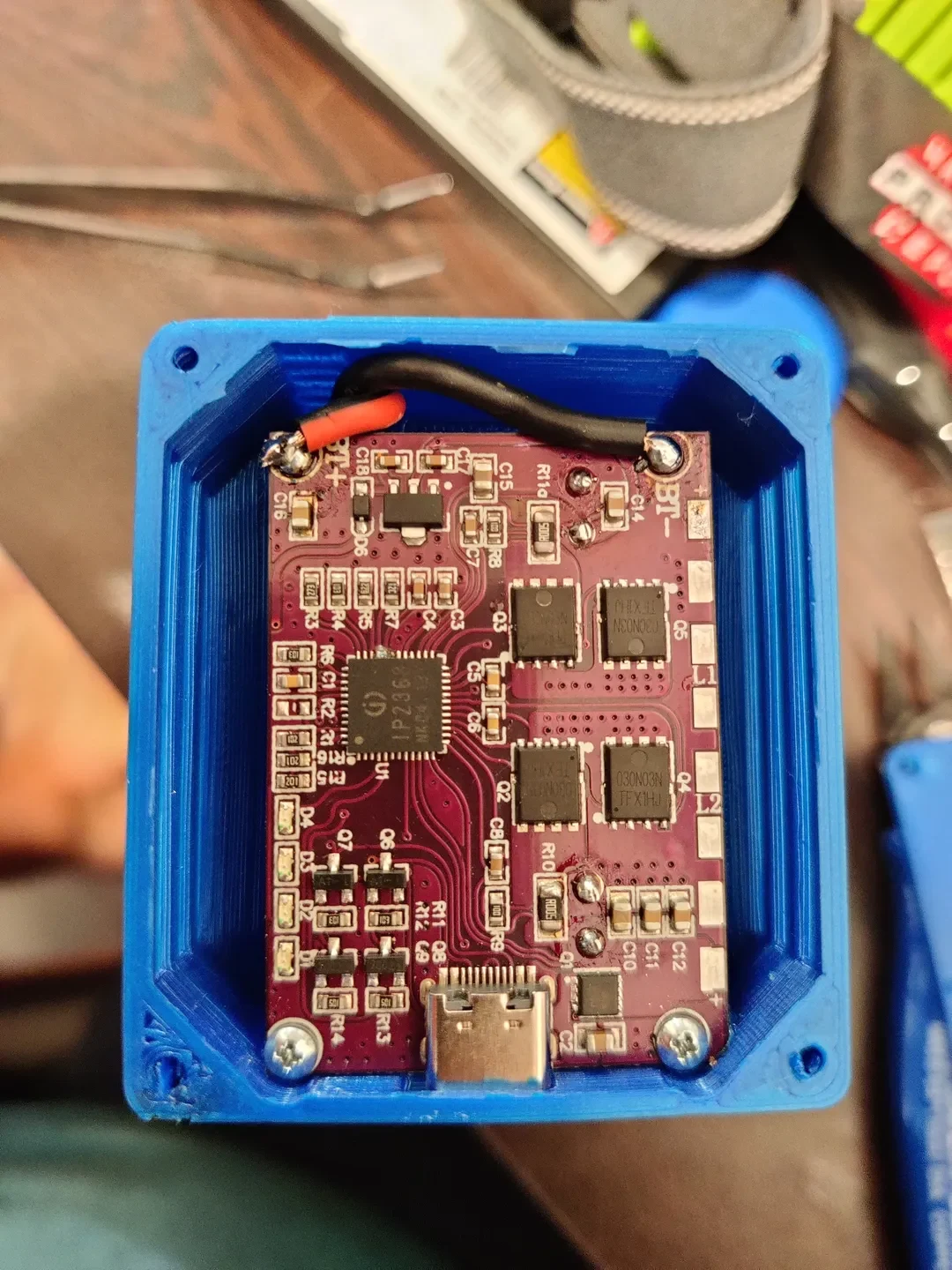

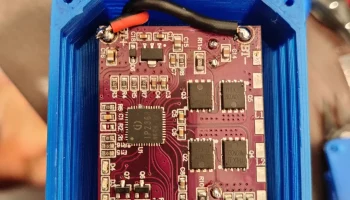

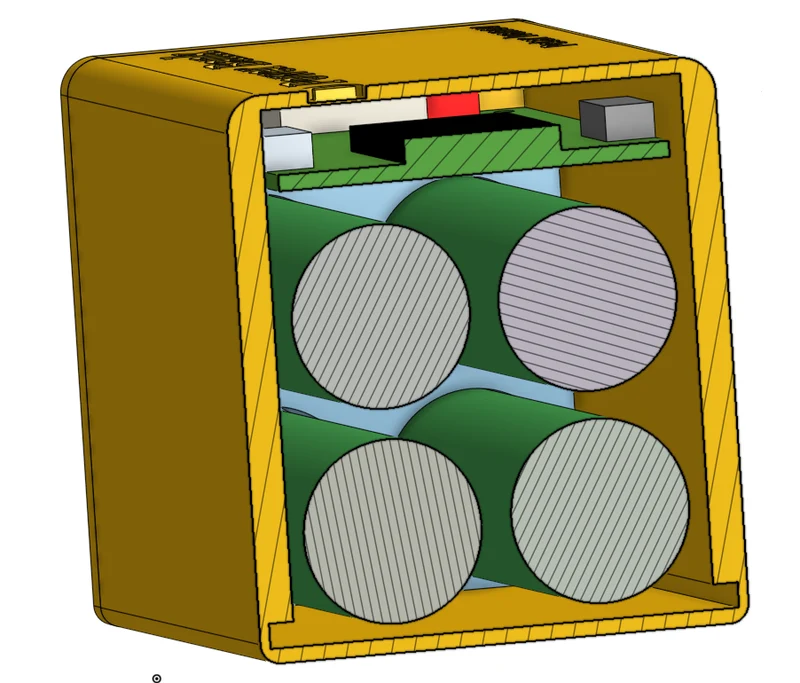

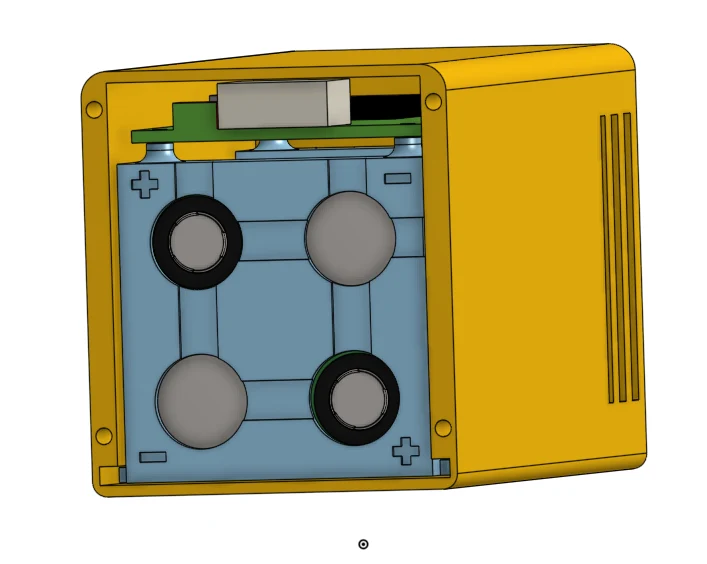

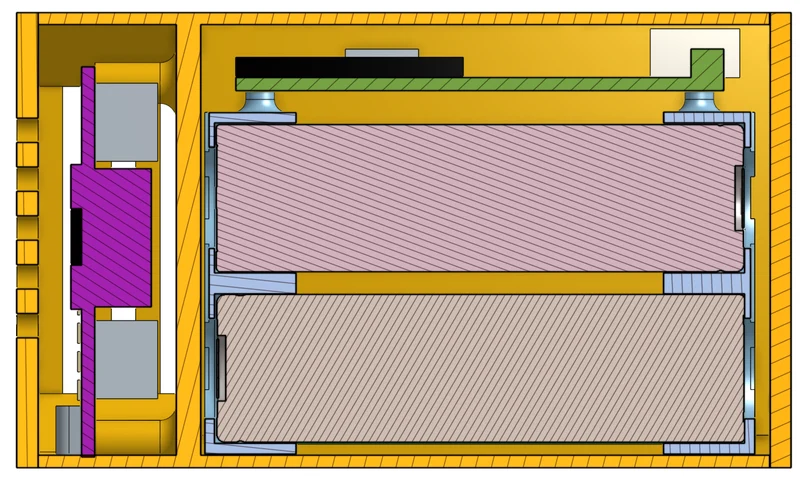

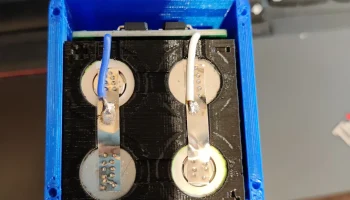

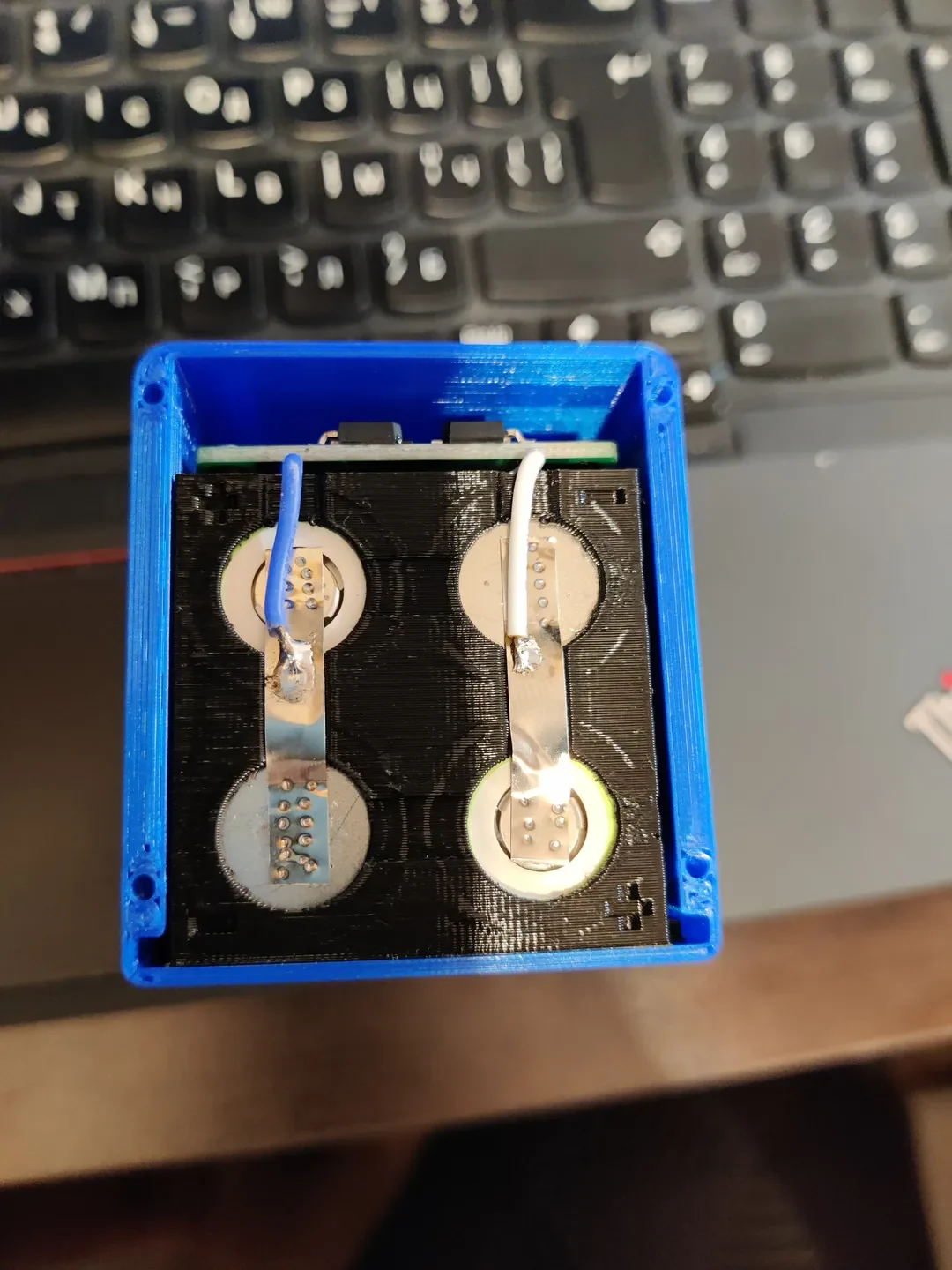

I decided to make my portable power bank with PD using IP2368. I used 4 batteries 18650 connected in series. The battery balancing board must be attached to the battery holders.

No bushings are required! You will need a few screws:

4 x M2.2x5mm — for battery balance board
2 x M2.2x5-10mm — for IP2368 board
4 x M2.2x5-10mm — for back cover

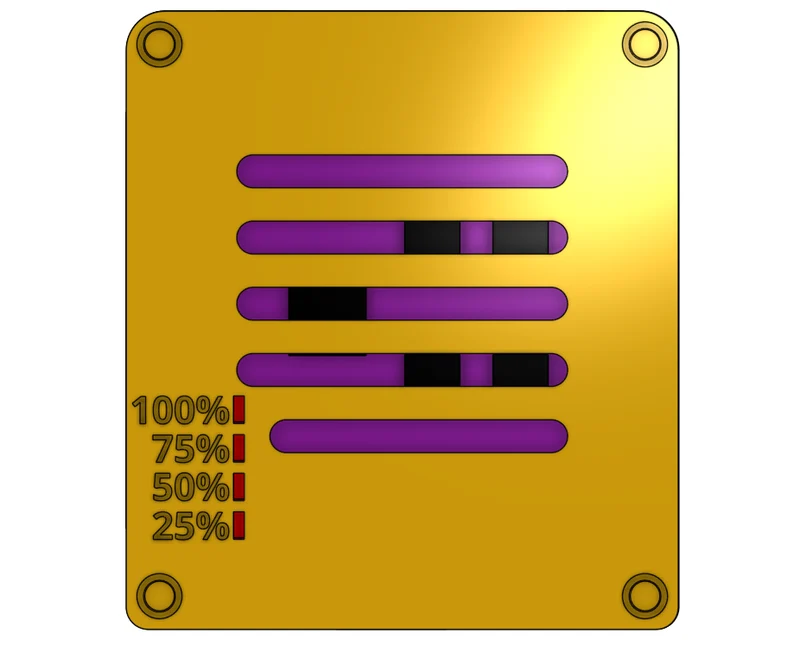

4 x M2.2x5-10mm — for front cover

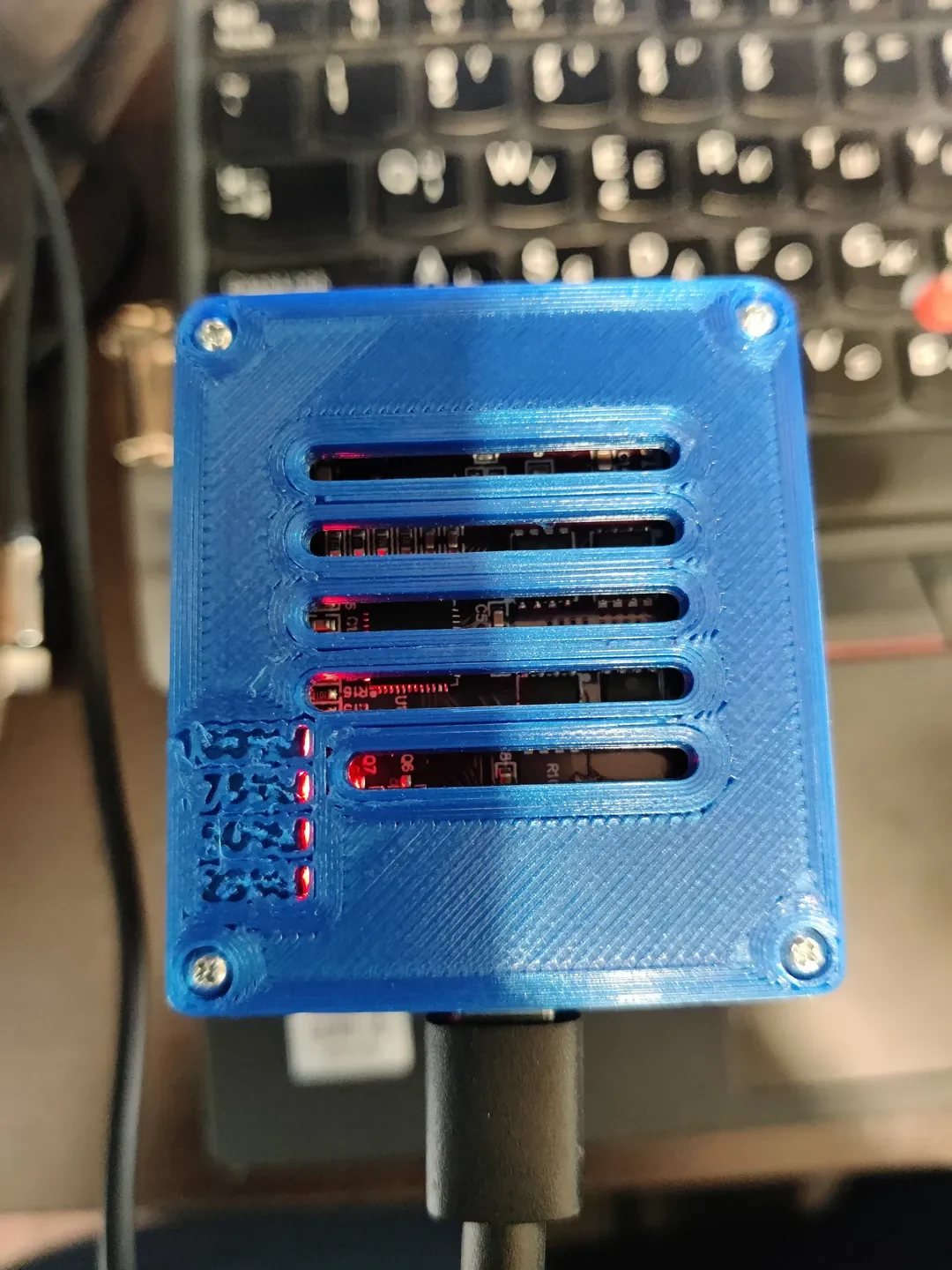

It is preferable to print it with PETG or another material with a higher melting temperature because the IP2368 board heats up at high power.

I have uploaded GCODE files for PLA and PETG.

IP2368 and Battery Balance Board: https://www.aliexpress.com/item/1005003954338954.html
