крепления Wurkkos HD03 Фонаря для Велосипедов

Источник:
📁 Wurkkos HD03 Flashlight Mount for Bicycles
📐 STEP, 3MF
🪵 PETG or PCTG
💡 Print with a dark color for better UV resistance and outdoor longevity.
❤️ Лайкни, если понравилось!
🧩🐾 Поделись опытом печати в комментах!

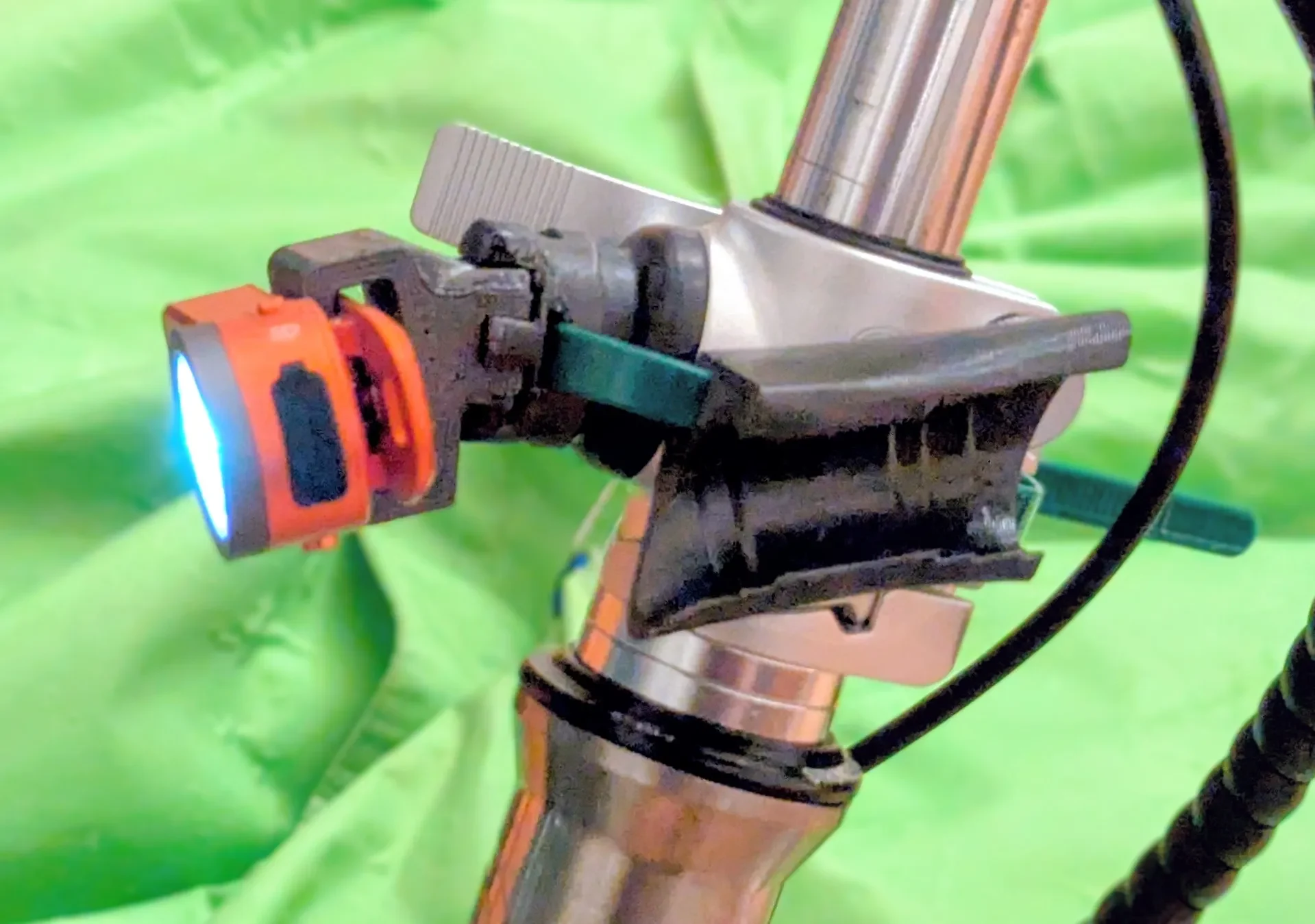

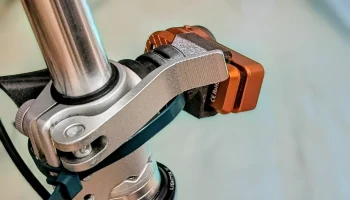

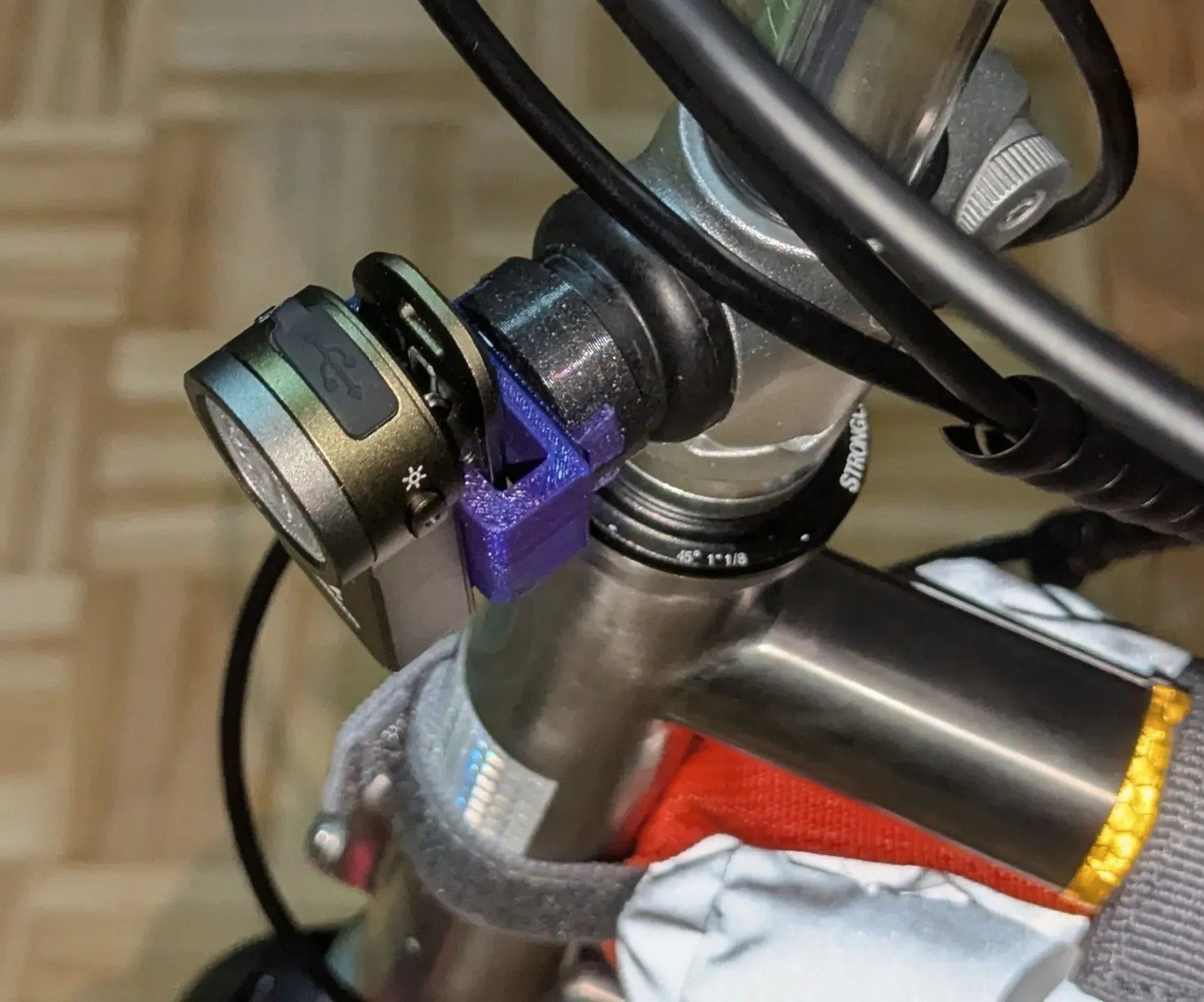

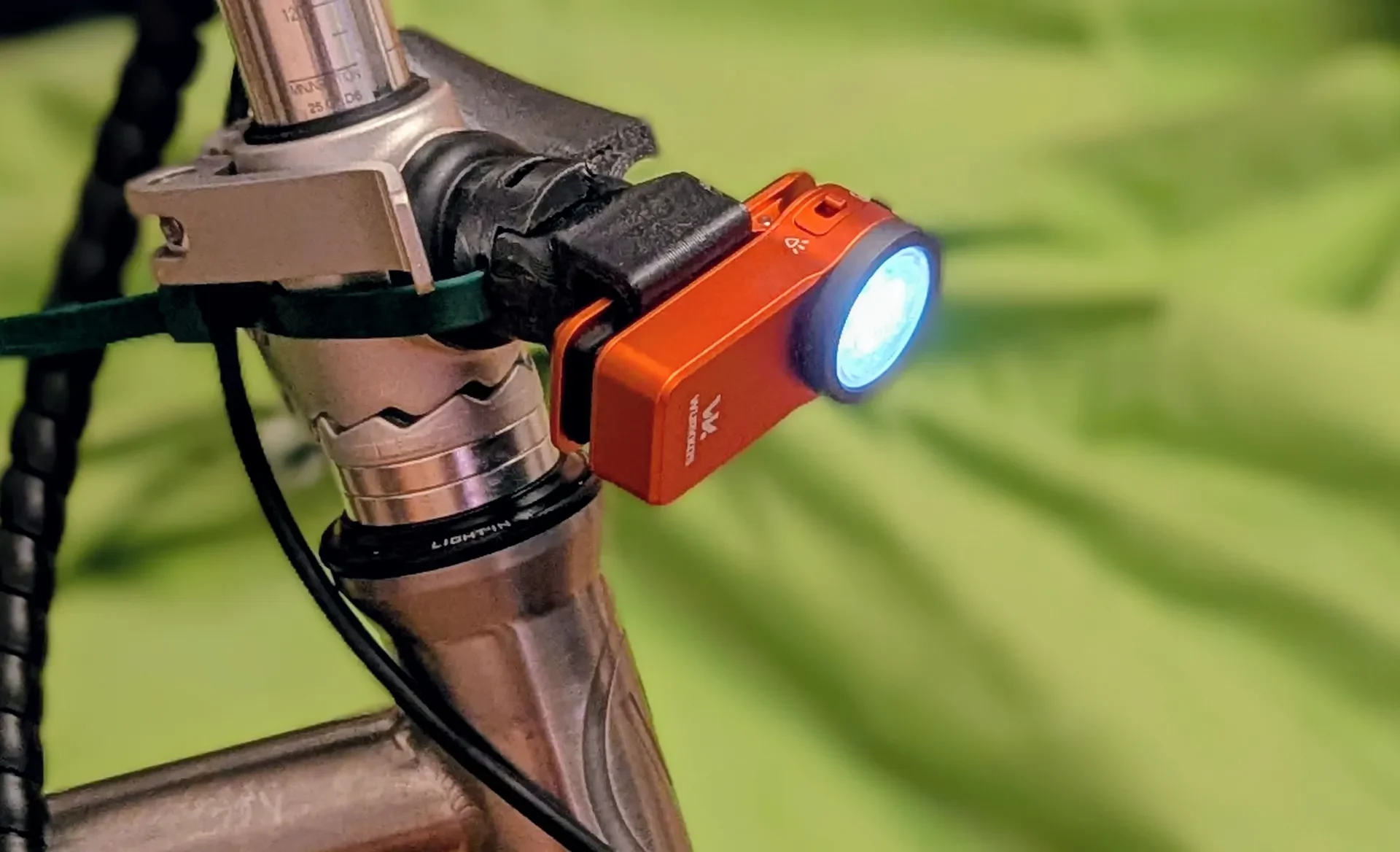

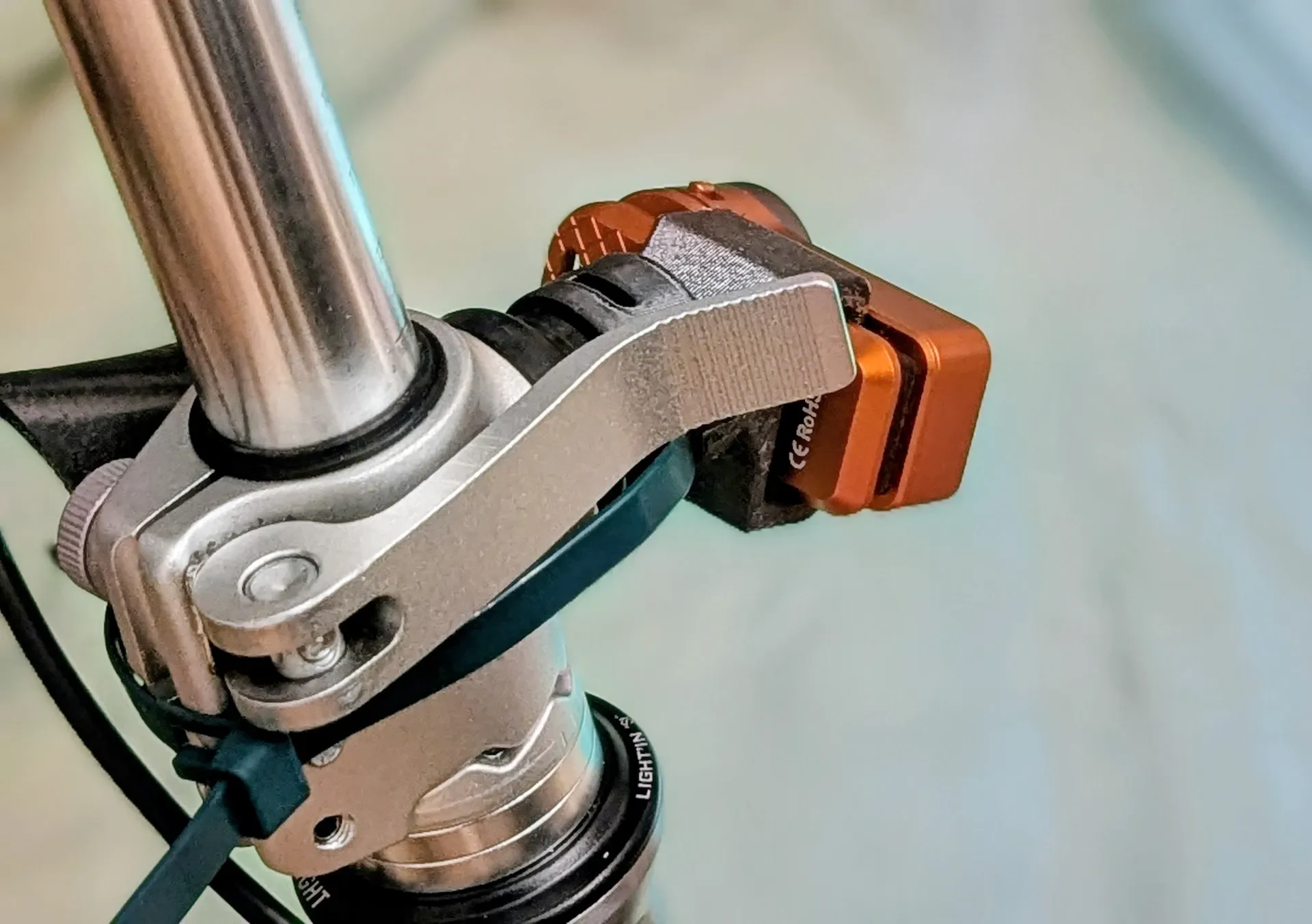

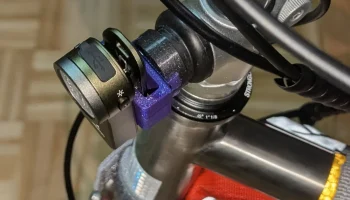

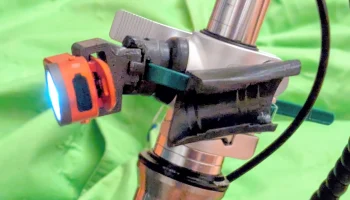

This holder is specifically designed to attach the Wurkkos HD03 flashlight to a bicycle, round pole, or Vello folding-bike magnetic safety-lamp connector. It’s tested and improved over several weeks, making the HD03 suitable as a bicycle light. The removable mounting concept allows easy installation and removal.

Особенности и назначение

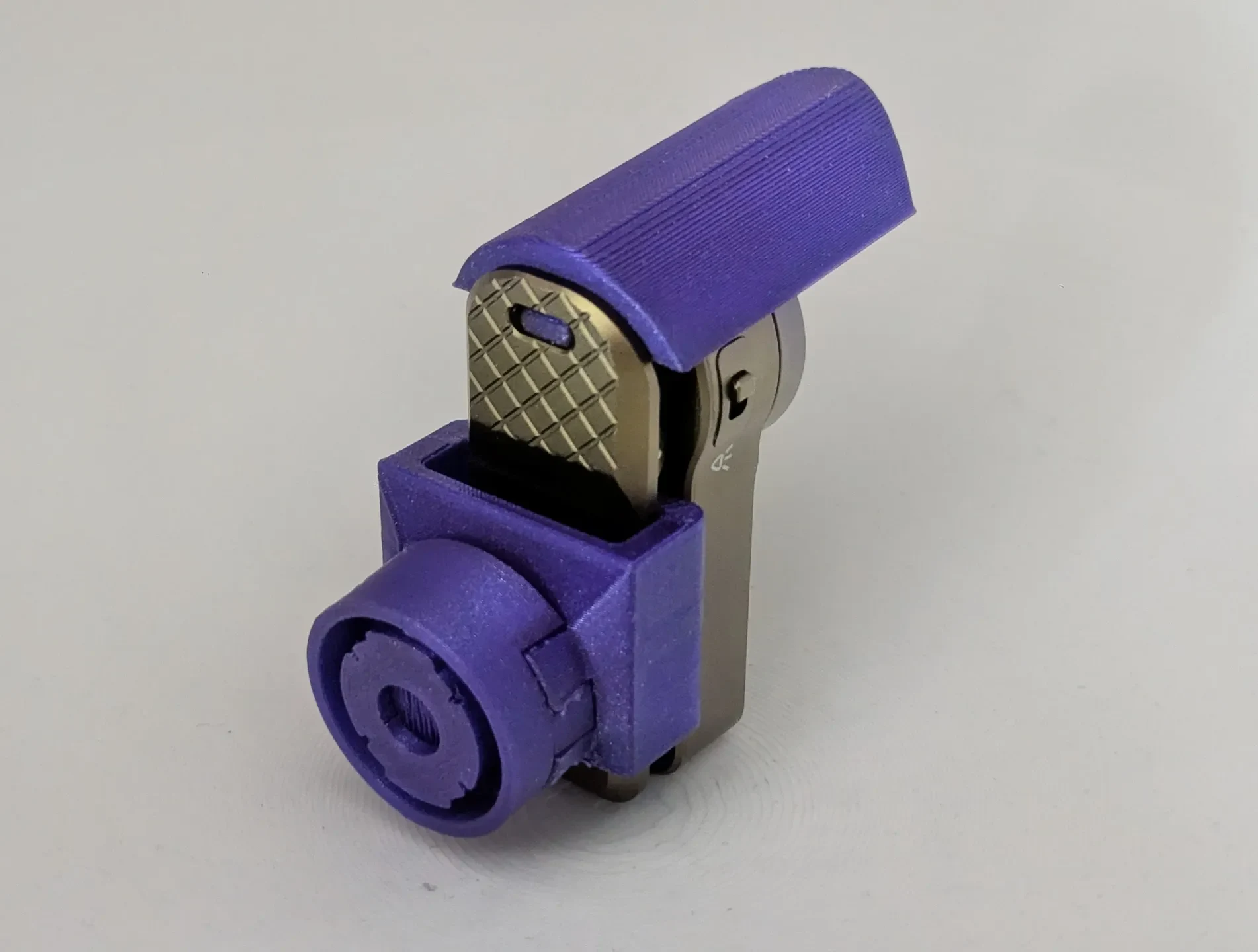

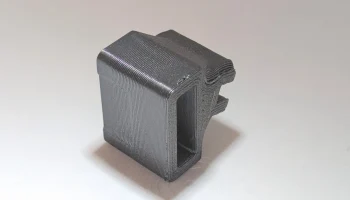

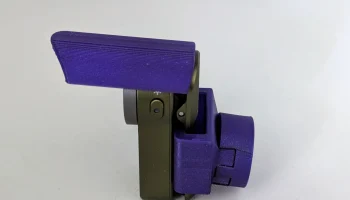

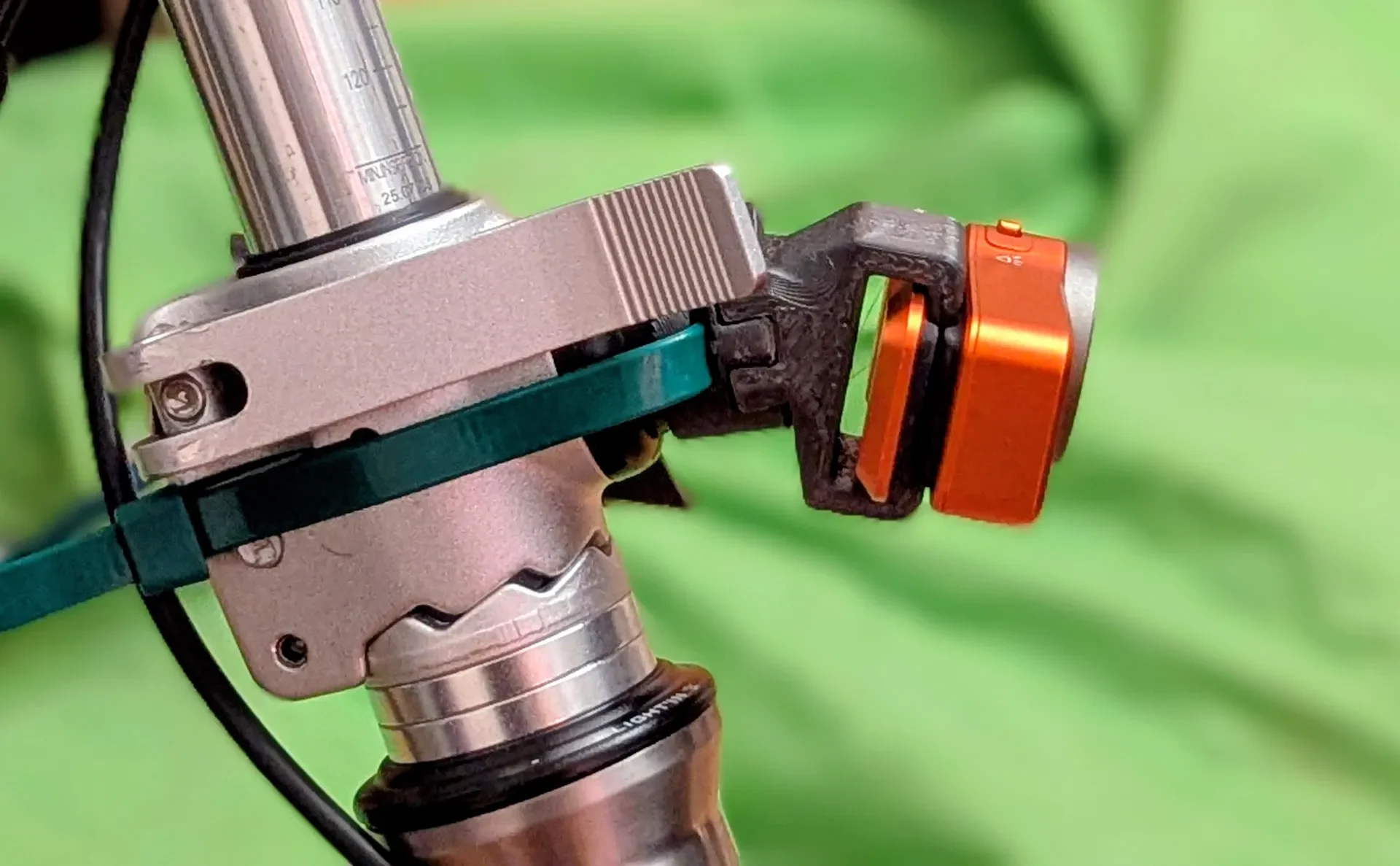

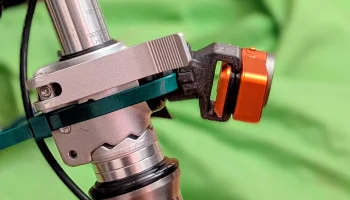

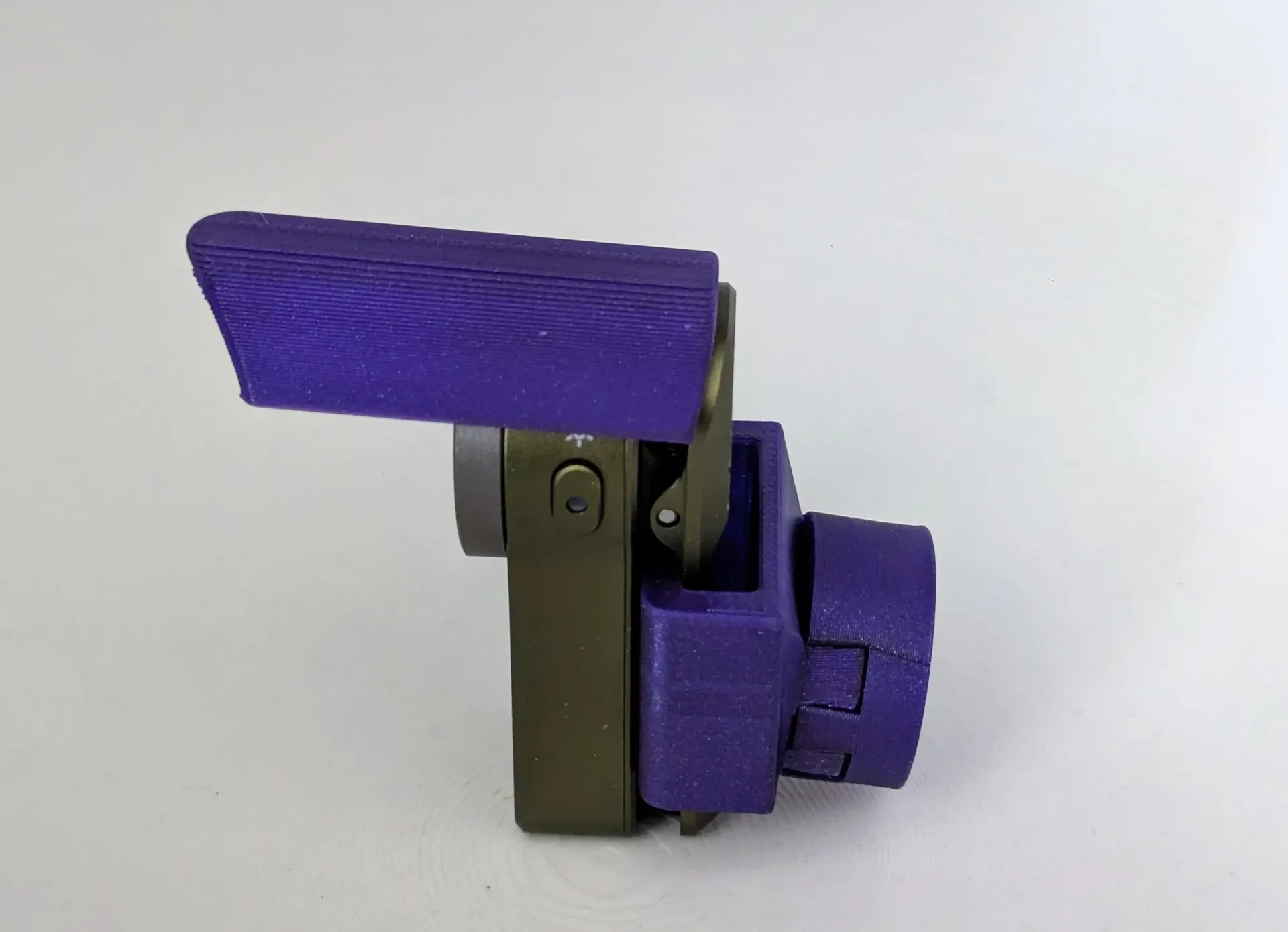

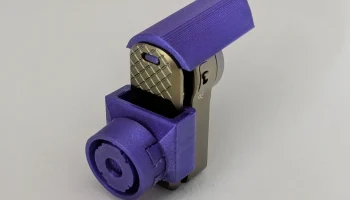

Compatible with the Wurkkos HD03 and similar lights, this mount uses the Vello magnetic safety lamp connector system. The design includes a dovetail joint that requires some force and hammering to assemble properly. Once fitted, the two parts create a permanent press-fit connection.

Печать и сборка

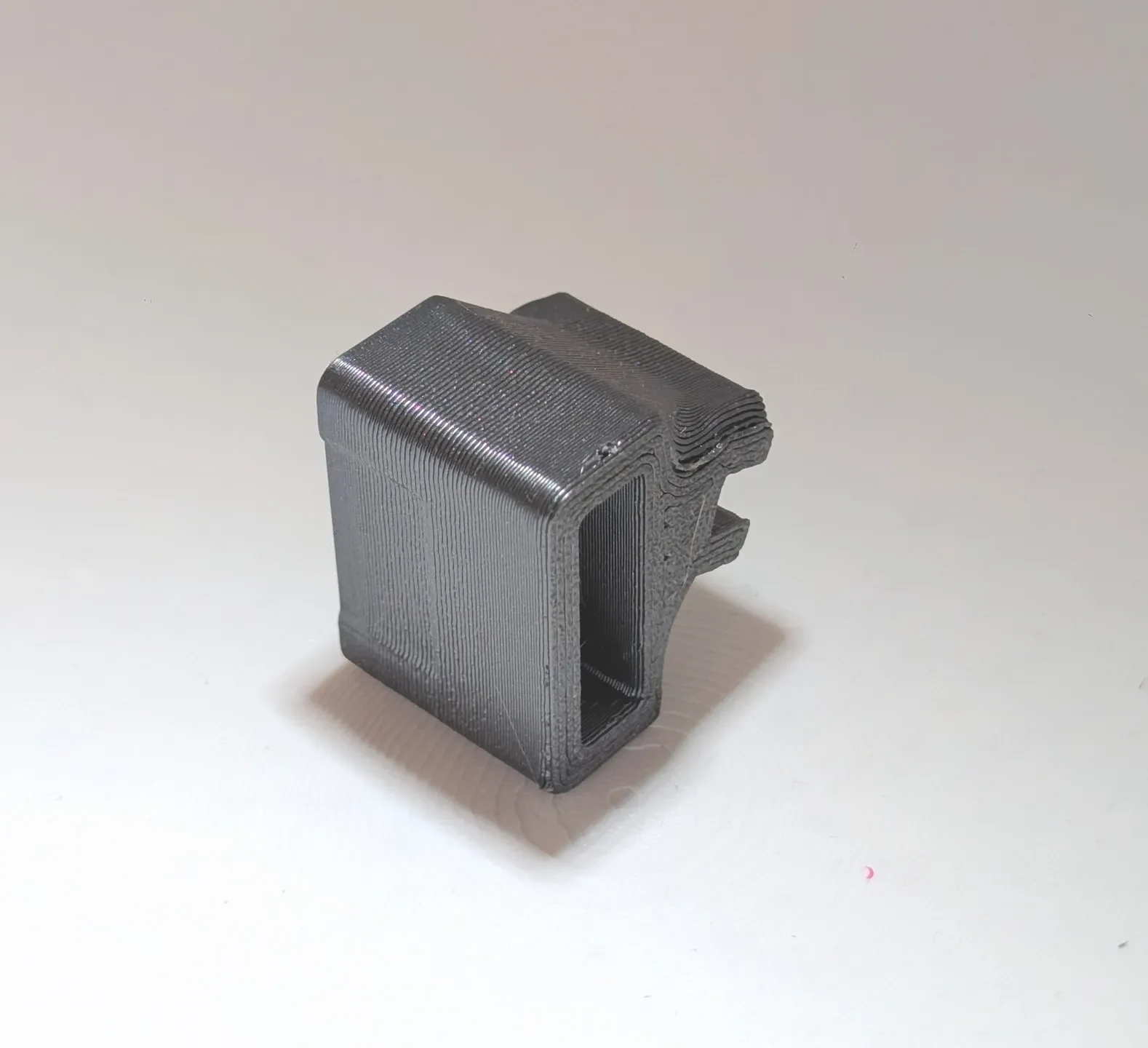

Recommended material: PETG or PCTG. Printing with a dark color enhances durability and UV resistance. Infill settings vary depending on nozzle size—none or default for 0.4mm nozzle, 20% lightning infill for 0.6mm nozzle. No support or brim needed. Wall loops are 4 for 0.4mm nozzle and 3 for 0.6mm nozzle.
