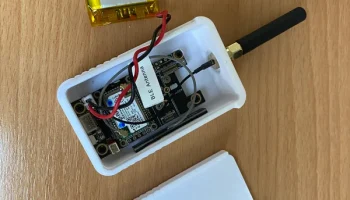

RAK Starter Kit 19007 enclosure for sma antenna - meshta...

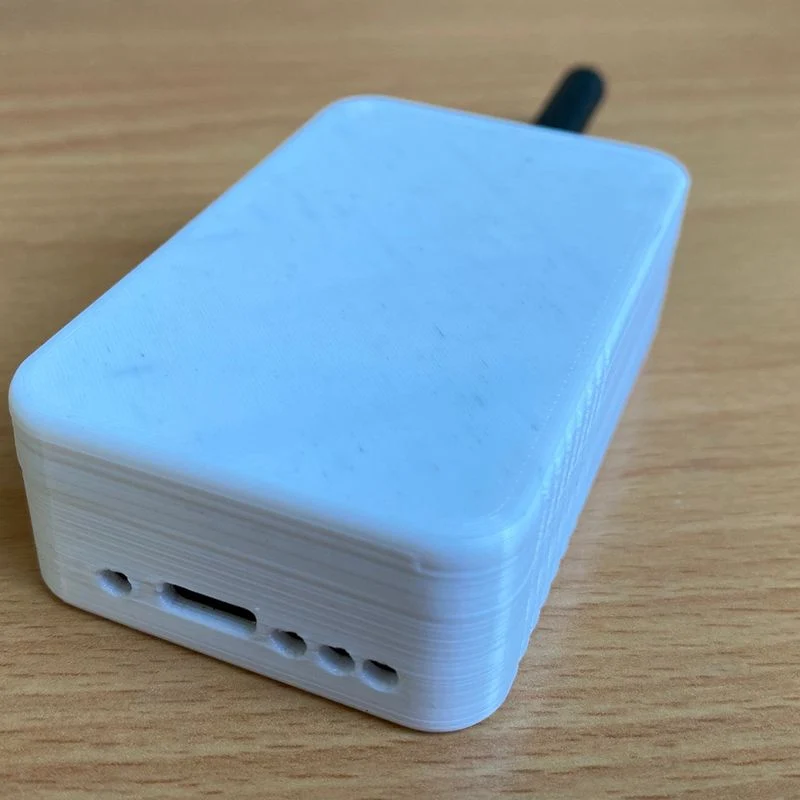

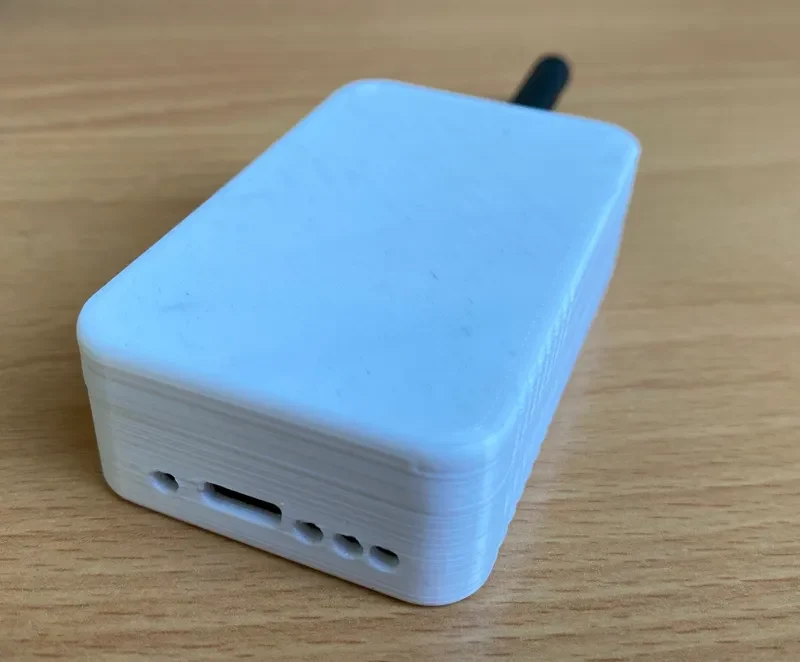

Simple housing with sliding lid with a secure «click» closure.

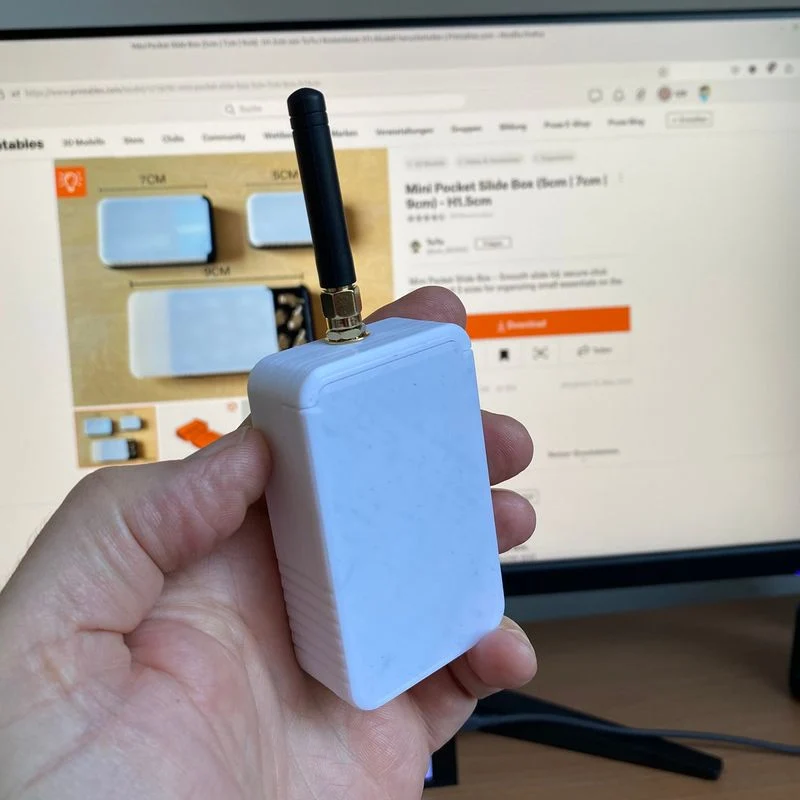

Many thanks to TuTu for the fantastic template!

Hint: Switch off via the meshtastic app, switch on by pressing the reset button. This saves an additional switch.

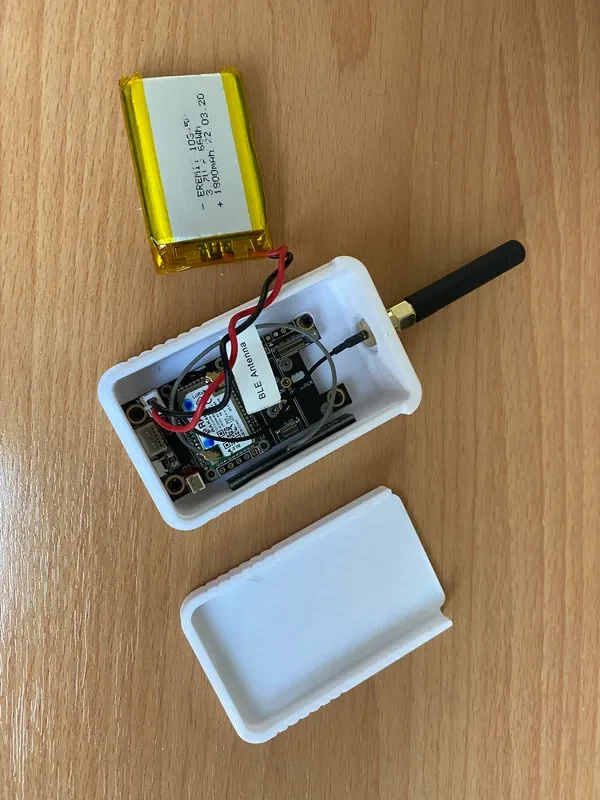

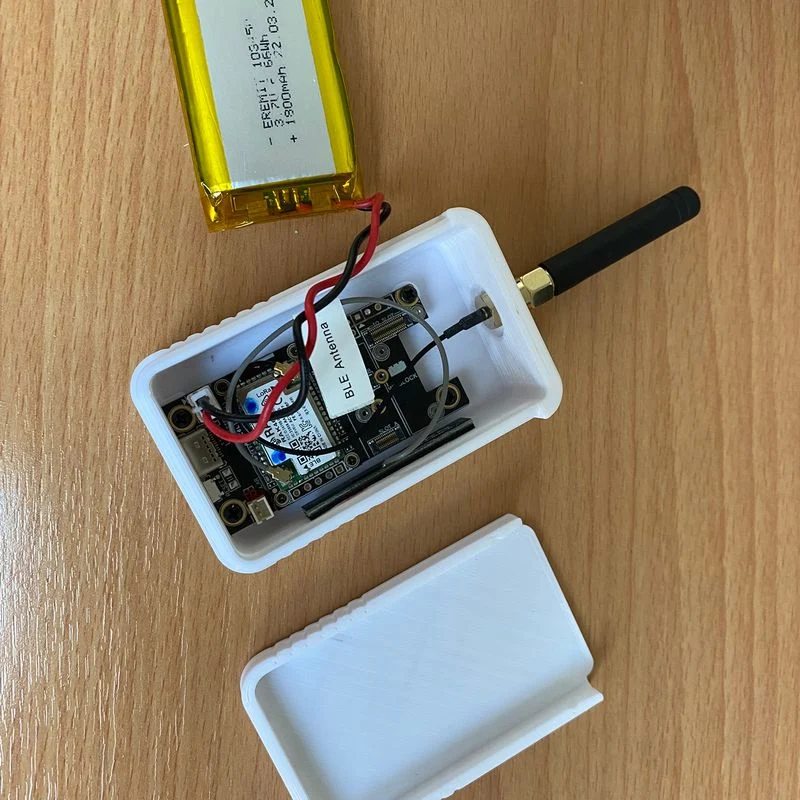

Battery: I used a 1800mAh battery 10x34x50 mm
Pay attention to the polarity — there are batteries with wrong polarity for the RAK out there.

Update V2: Hexagon on the inside of the SMA for easier installation.

Update Box V3: USB little bigger
Update Lid V2: Stability improvement

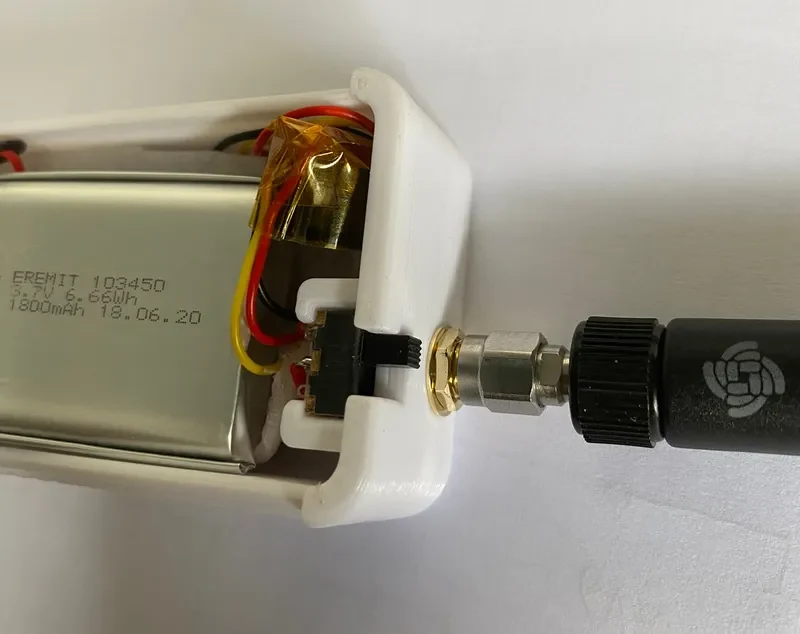

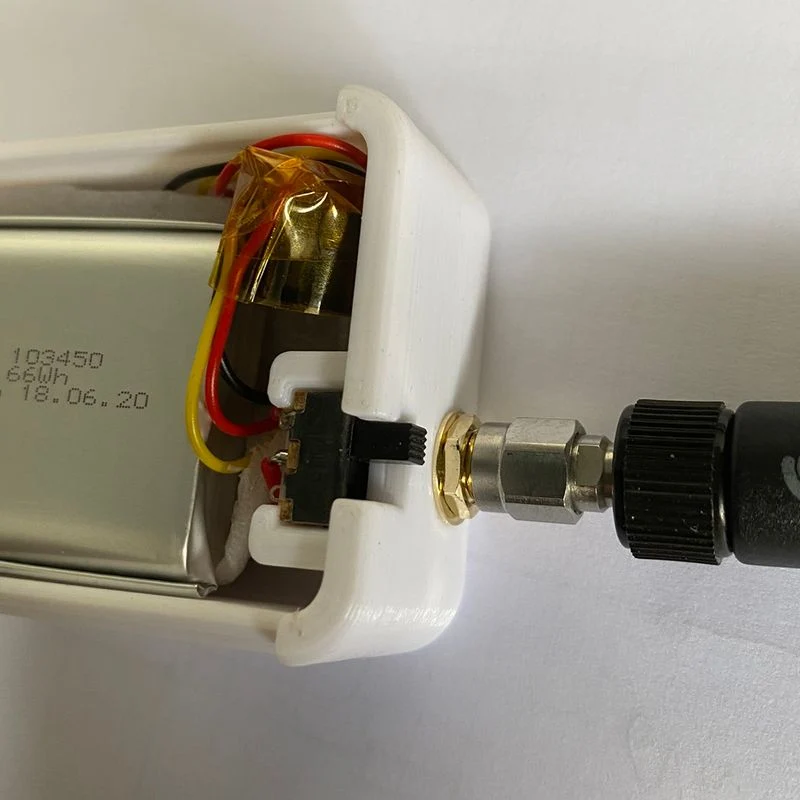

Update Box V4: Moved antenna to the side and added option for a switch — so there is a little more space to fit in a buzzer (see photo)

Update: Don't miss the ability to clip the node to a 4m leifheit mop :-)
https://www.printables.com/model/1813469-leifheit-mop-adapter-for-meshcore-meshtastic
