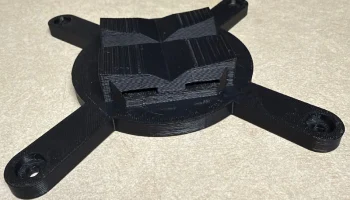

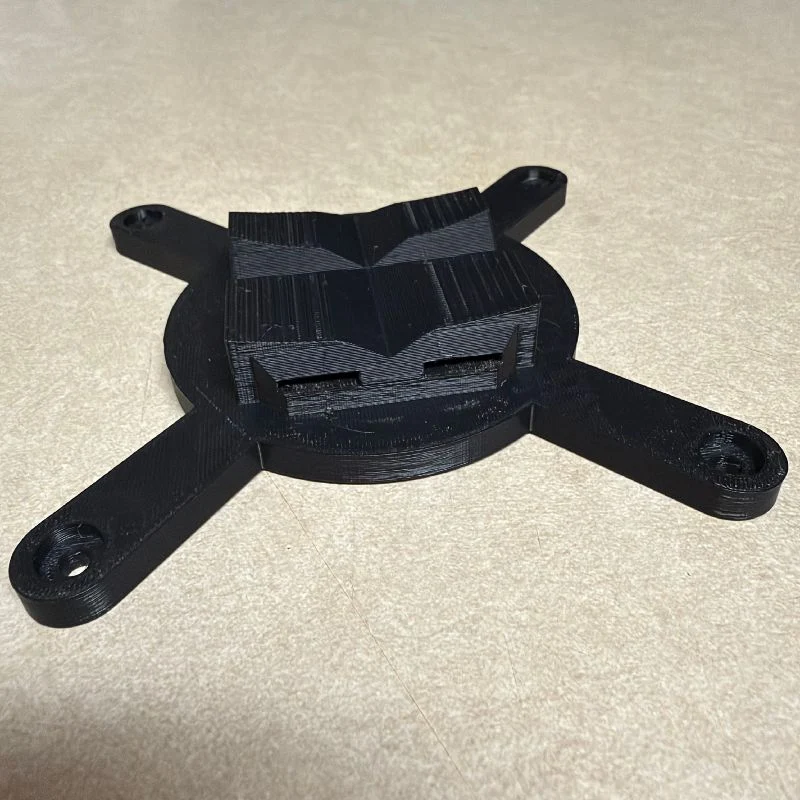

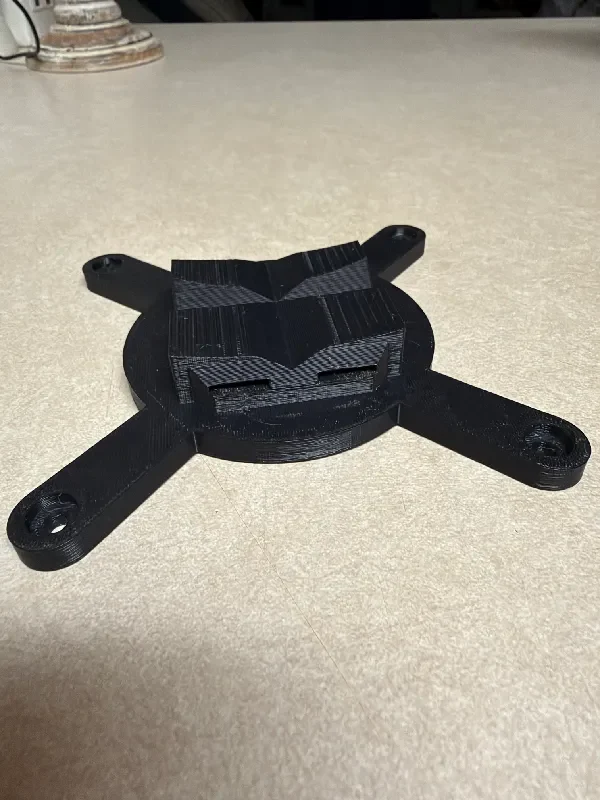

Zip-Tie Pole Mount for LuSumtly Outdoor Junction Box

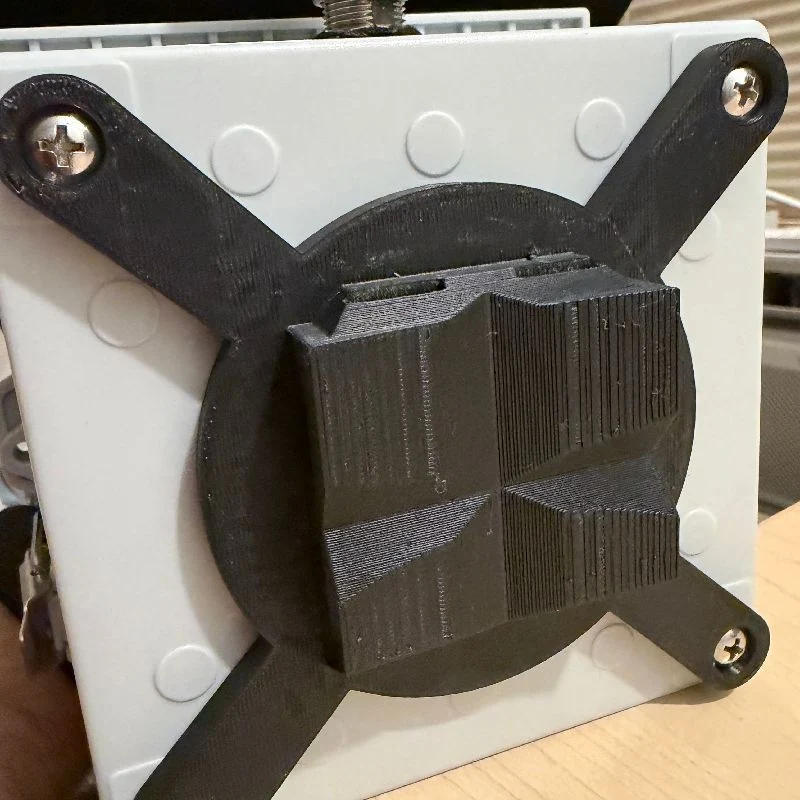

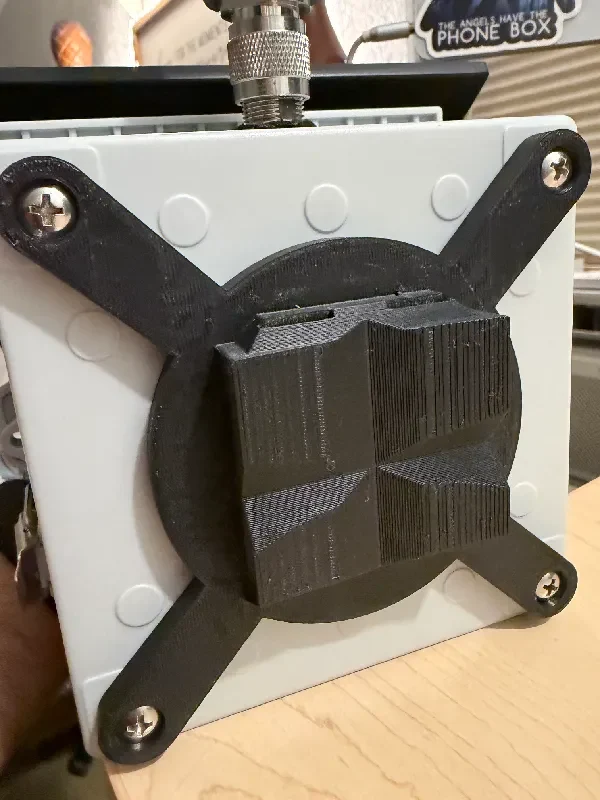

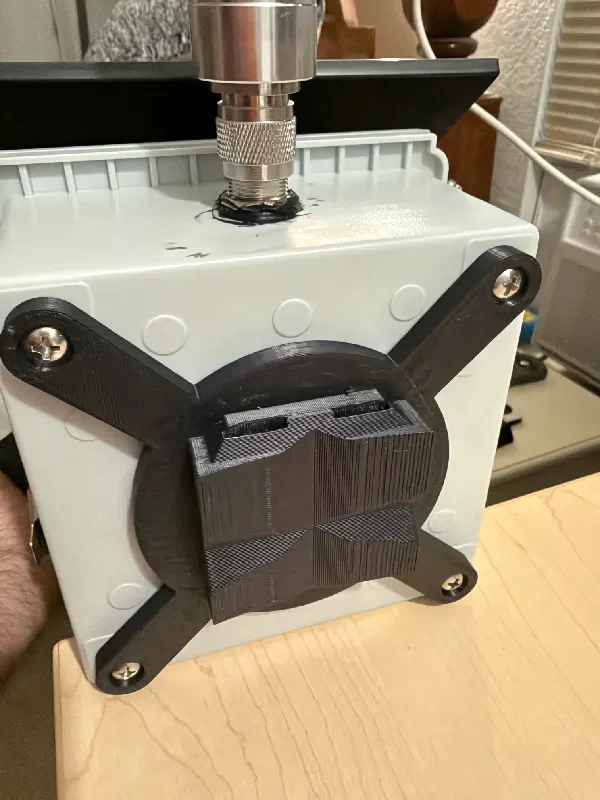

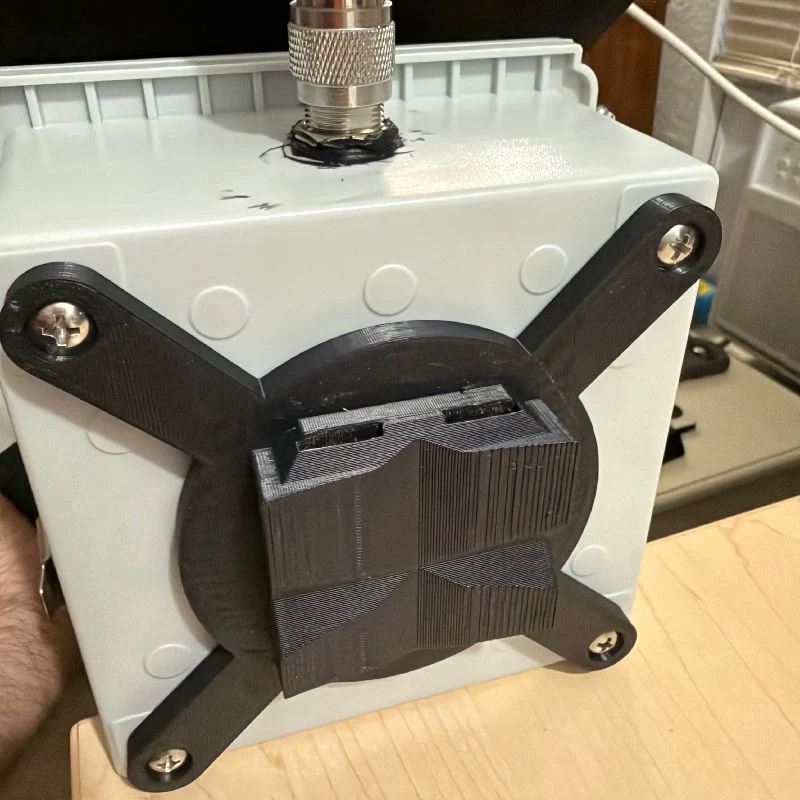

A pole mount adapter for the LuSumtly waterproof electrical enclosure (5.9«W x 3.5»D x 3.5«H, the version with mounting plate/wall brackets — available on Amazon). Instead of the included wall brackets, this adapter bolts directly to the box's mounting plate and straps to a pole with zip ties — so it works on any pole diameter, not just one fixed size.

Features:

— 4× M4 mounting holes spaced to match the LuSumtly box's mounting plate (107.95mm / 4.25»)

— Counterbored screw holes sized for the stock M4 screws that come with the box — no extra hardware needed for the box side

— Zip-tie slots run in two perpendicular directions for a secure, wobble-free attachment to round poles of varying diameter

— Reuses the box's own screws — just add zip ties for the pole

Print settings:

— PETG or ASA recommended for outdoor UV/weather exposure

— No supports needed

— ~3-4 perimeters recommended around the zip-tie slots for strength

Hardware needed:

— 4× M4 screws (reuse the ones included with the LuSumtly box)

— 2+ heavy-duty zip ties sized for your pole diameter
