BQ Station G3 Case with Snap-Fit

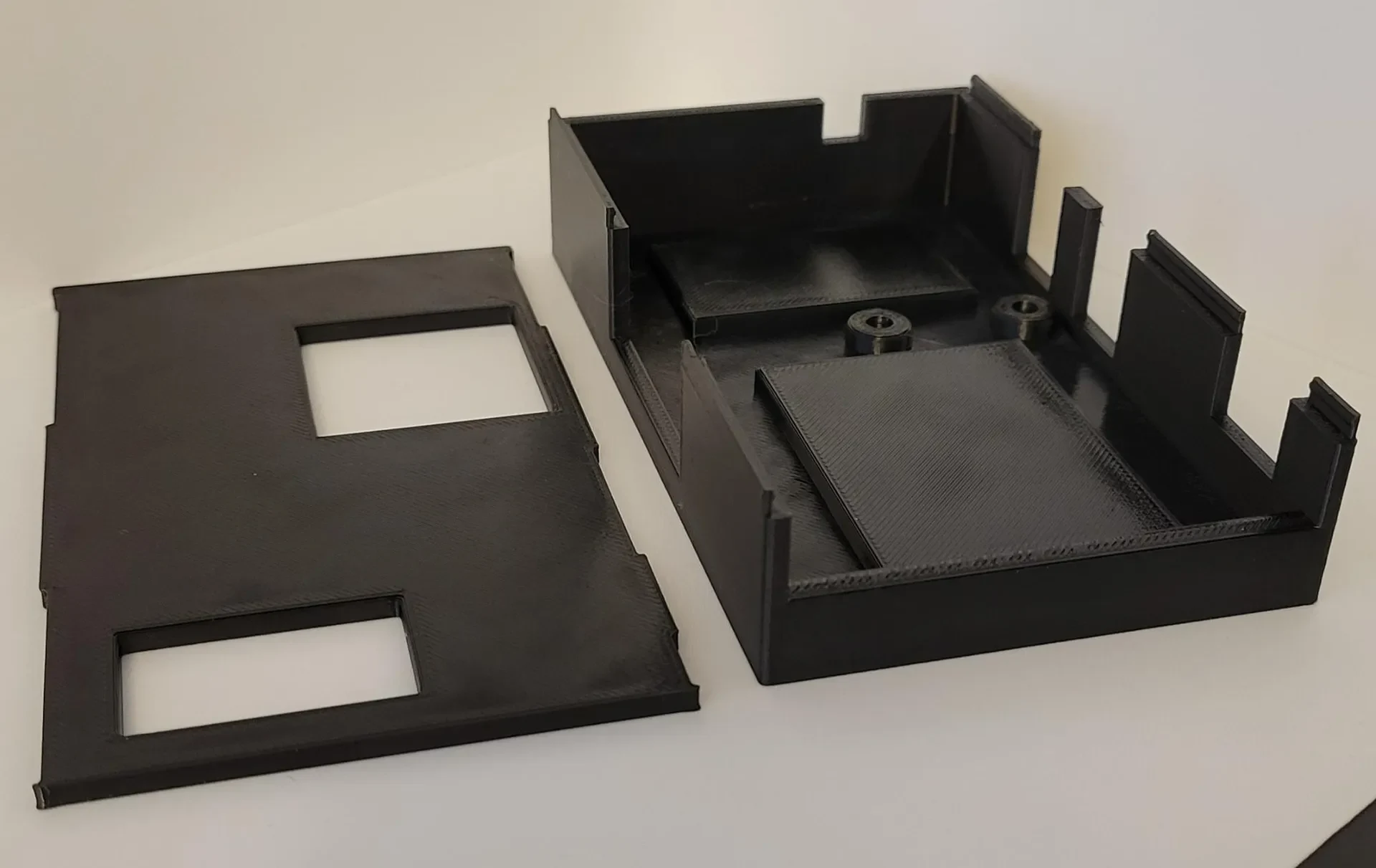

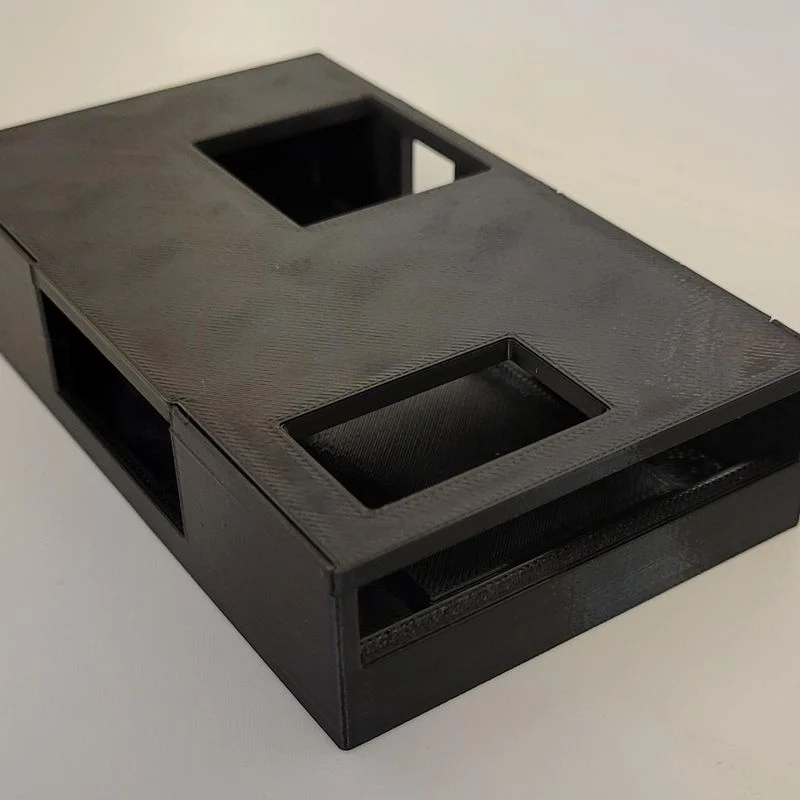

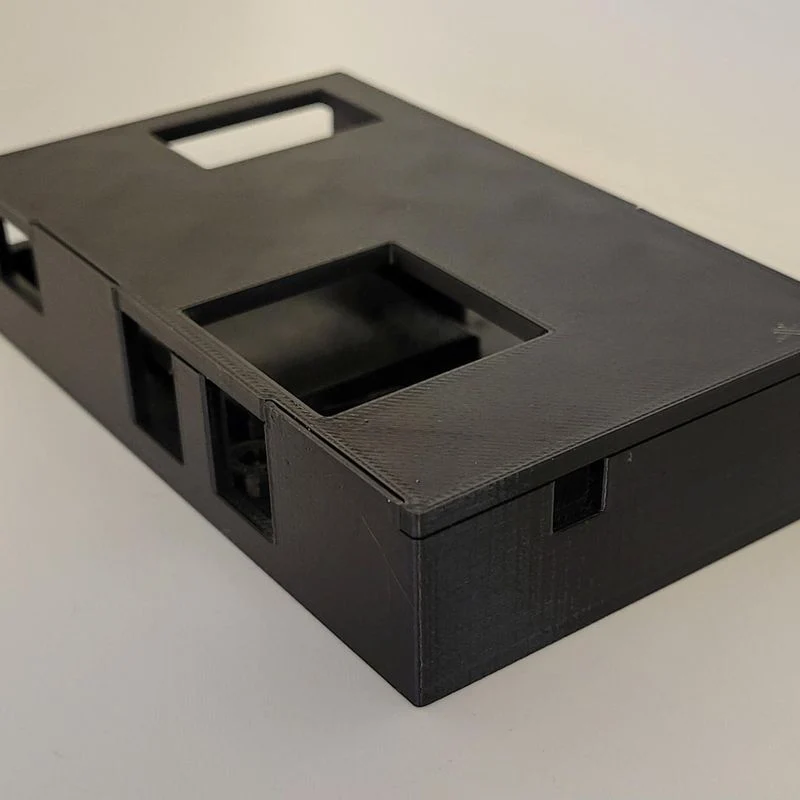

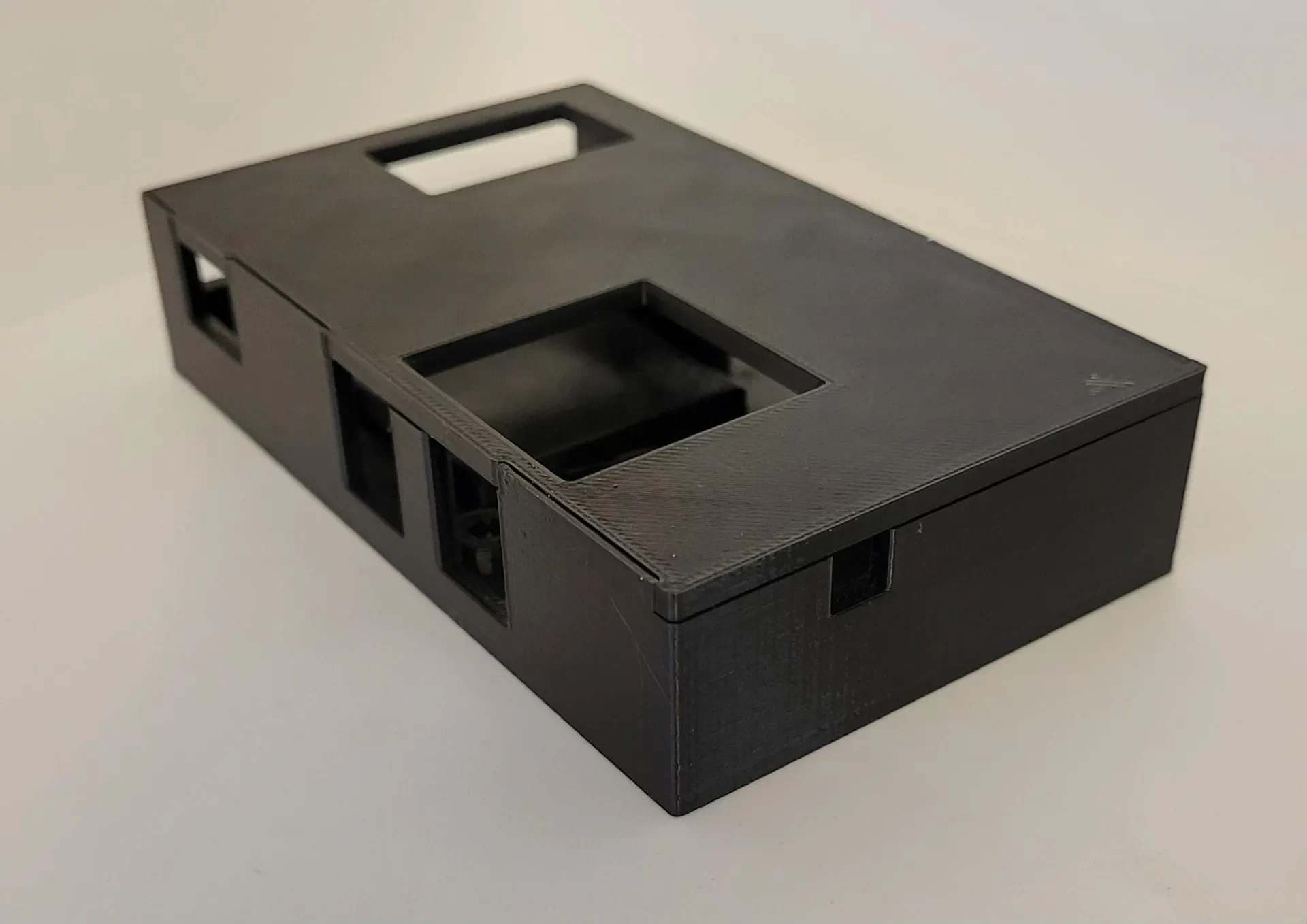

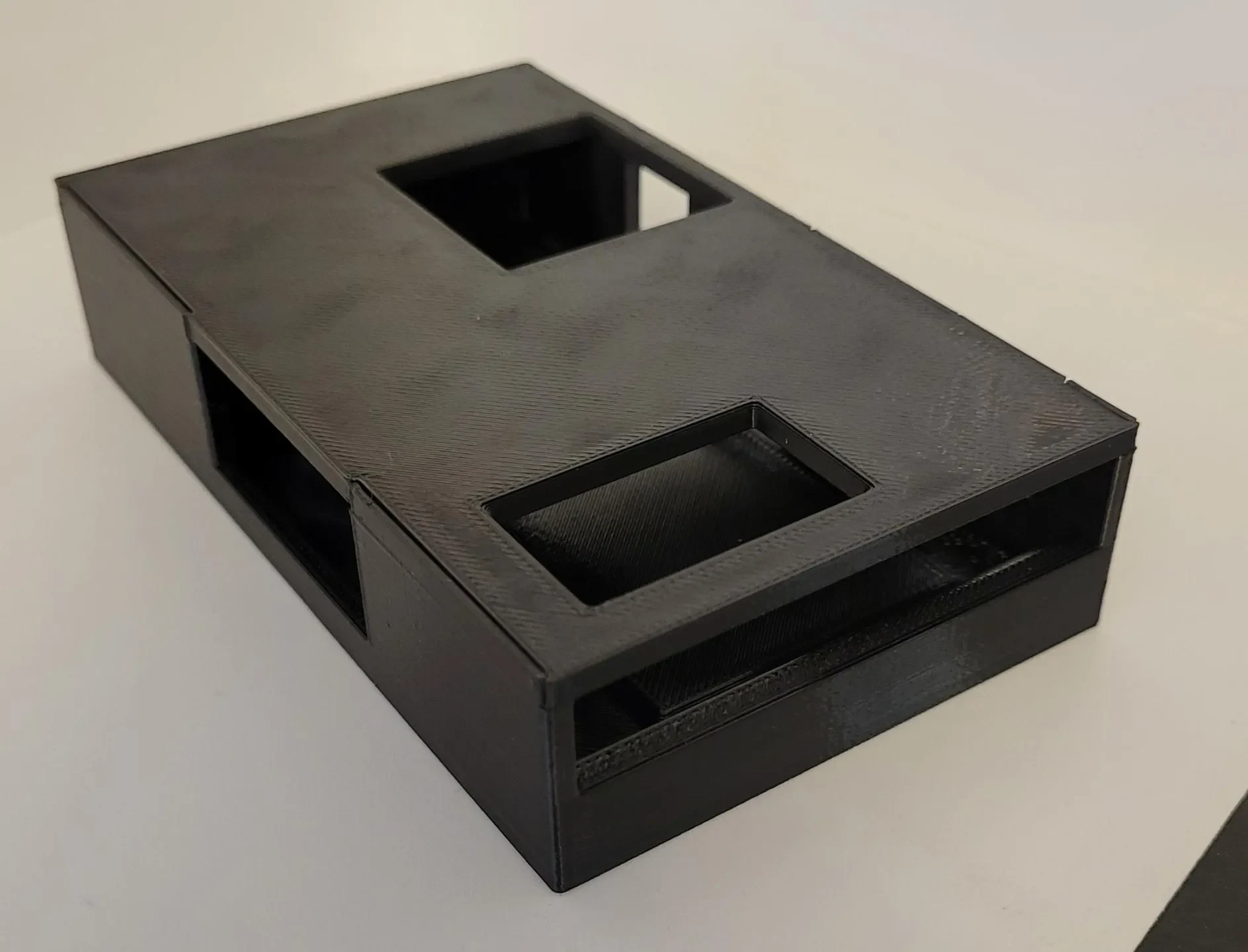

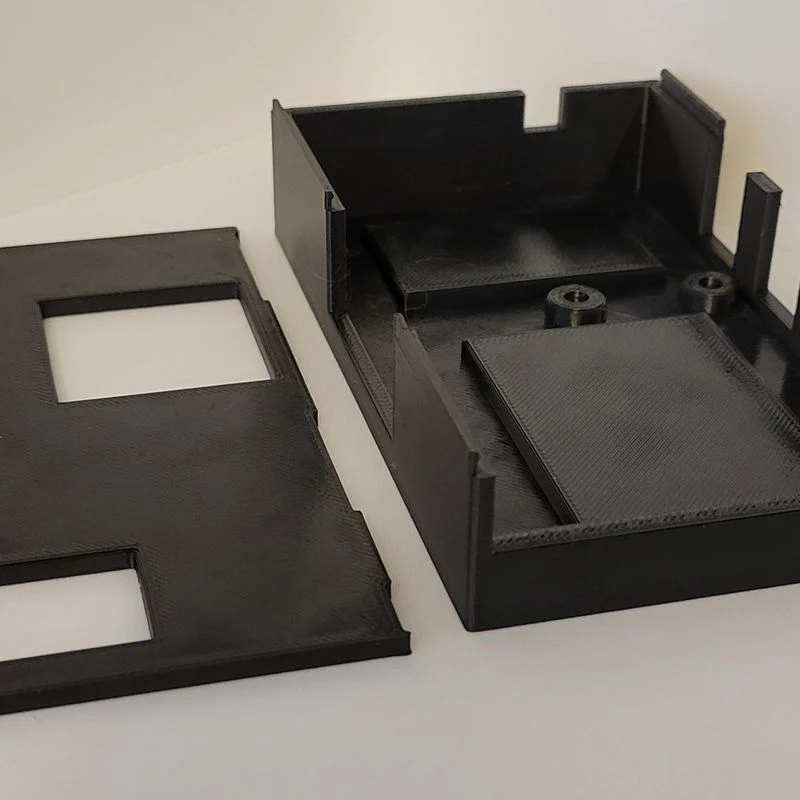

An easy-to-print case for the BQ Station G3 Mesh radio with snap-fit lid for easy access. I didn't like that the original design required gluing the lid on so added some snap-fit tabs for a secure fit while still making the lid removeable. I would have designed it from scratch but I don't have a BQ Station G3 myself and was printing for someone else.

Zero Supports needed.

Printed with:

Prusa MK4S 0.4mm nozzle

0.2mm layer height

5% Gyroid infill

Overture PETG

As with the original design — M3 x 5mm length bolts and M3 x 4x 4.2 heat set inserts used to mount board (need to temporarily remove RF module).

Edit: Fixed error in heatsink location to properly fit now and removed incorrect lid stl file.
