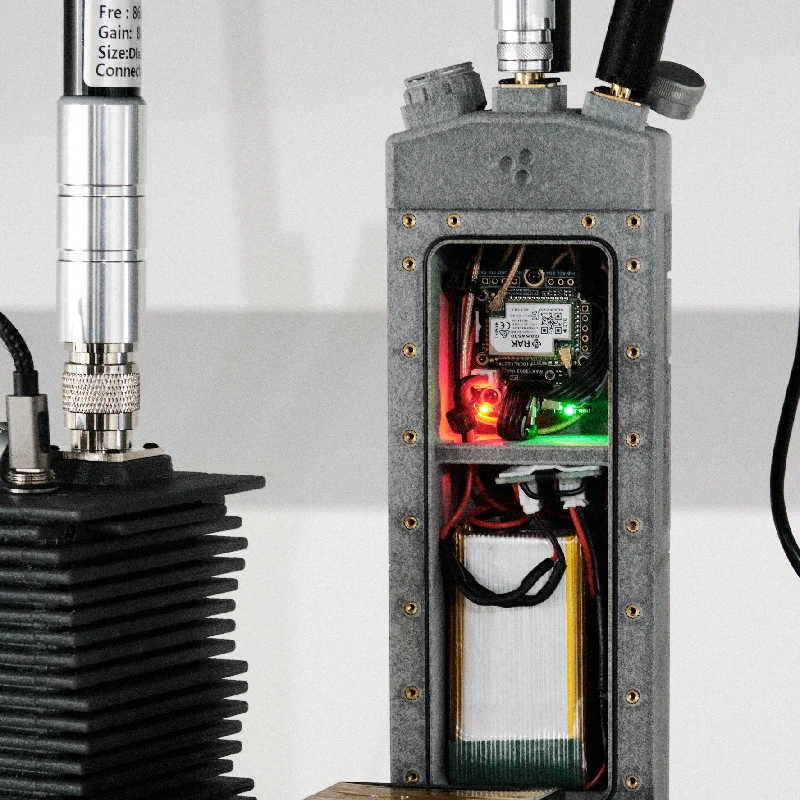

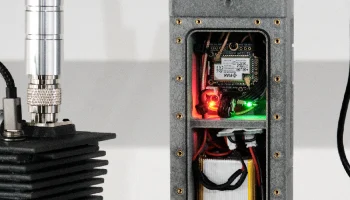

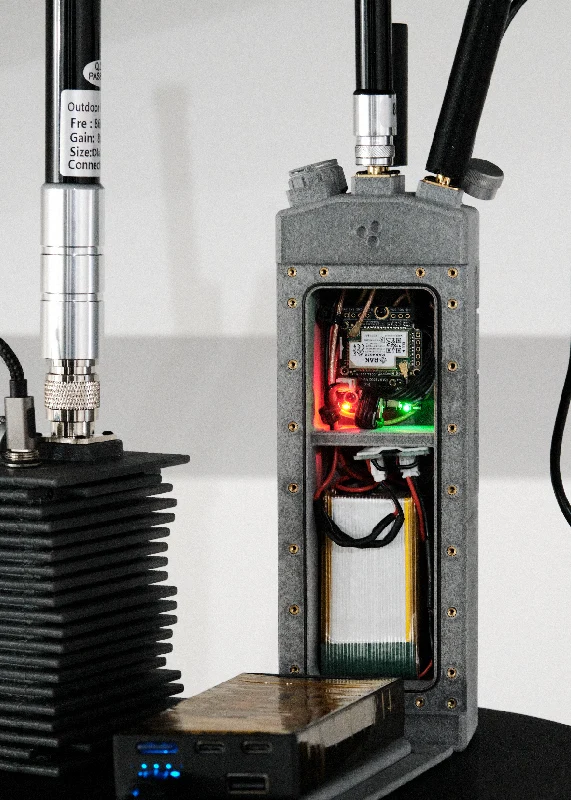

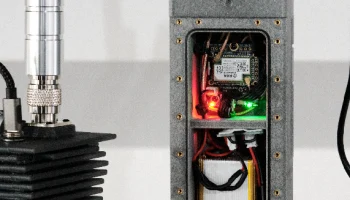

RAK19003 Meshtastic Enclosure

There are many much cheaper options out there, this fulfills my personal LARP needs.

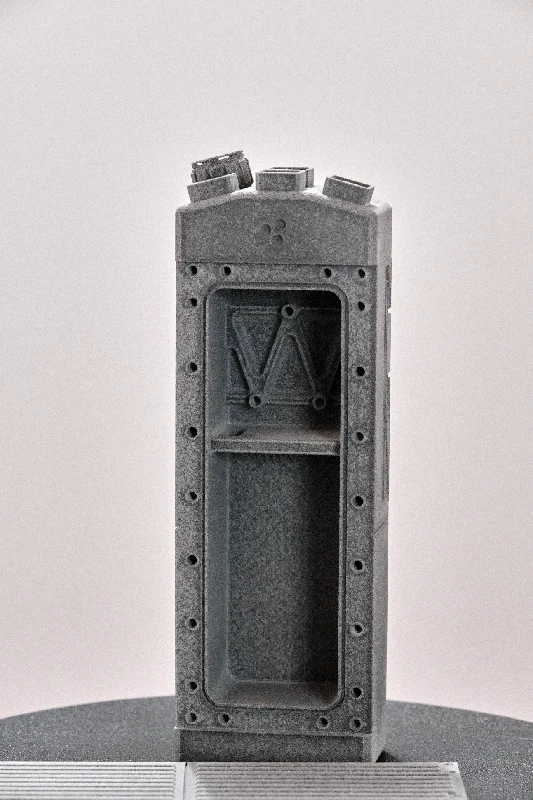

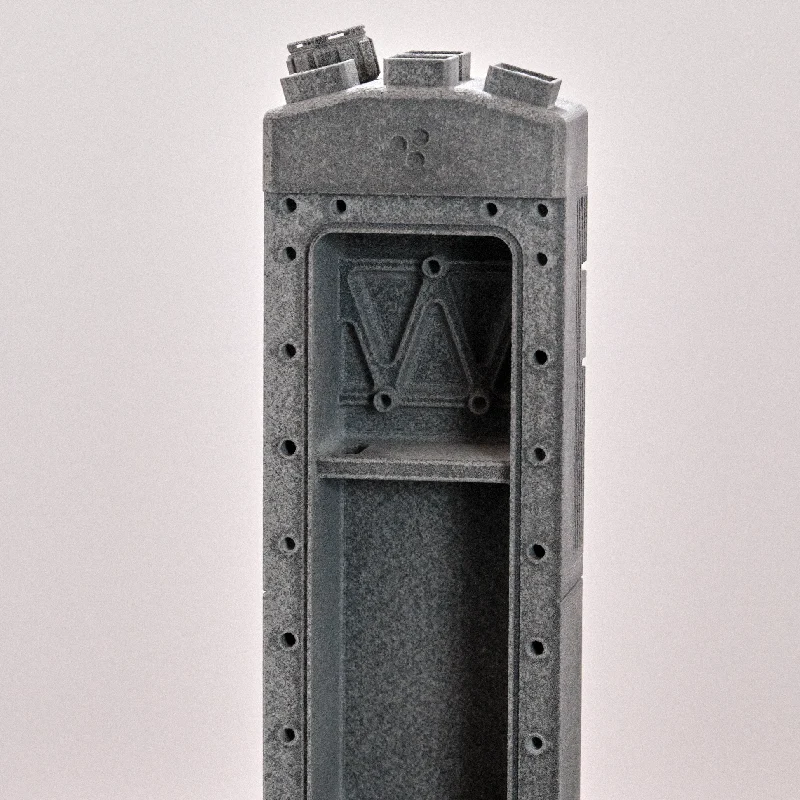

At it's core, this is basically a greebled rectangle.

Fits in most pouches that can hold a MPU5, Streamcaster, AN/PRC152, etc.

Has survived a couple of hour-long hikes under heavy rain and two complete ~30s involuntary immersions, however I cannot guarantee waterproof/watertight-ness or a specific IP rating.

I recommend MJF/SLS and a Dichtol AM Hydro bath to seal.

Parts needed, excluding RAK 19003/4631:

x4 SMA-U.FL 4-hole panel mounts (x1 GNSS, x1 LoRa, x1 BT, x1 Spare)

x1 USB-C to C cable

x1 APEM AB2M-A2PB

x1 USB-C panel mount

x2 Makerfocus 3000Mah or similarly sized LiPos, will alternatively fit x2 18650/21700

1mm diameter rubber cord, there are two o-rings that need to be made.
