Meshtastic outdoor installation

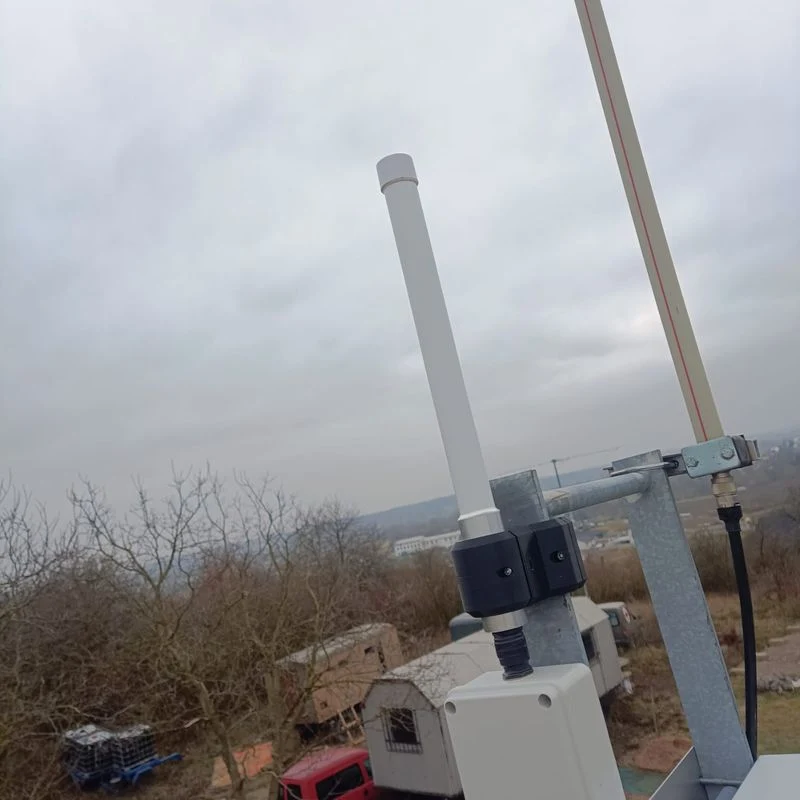

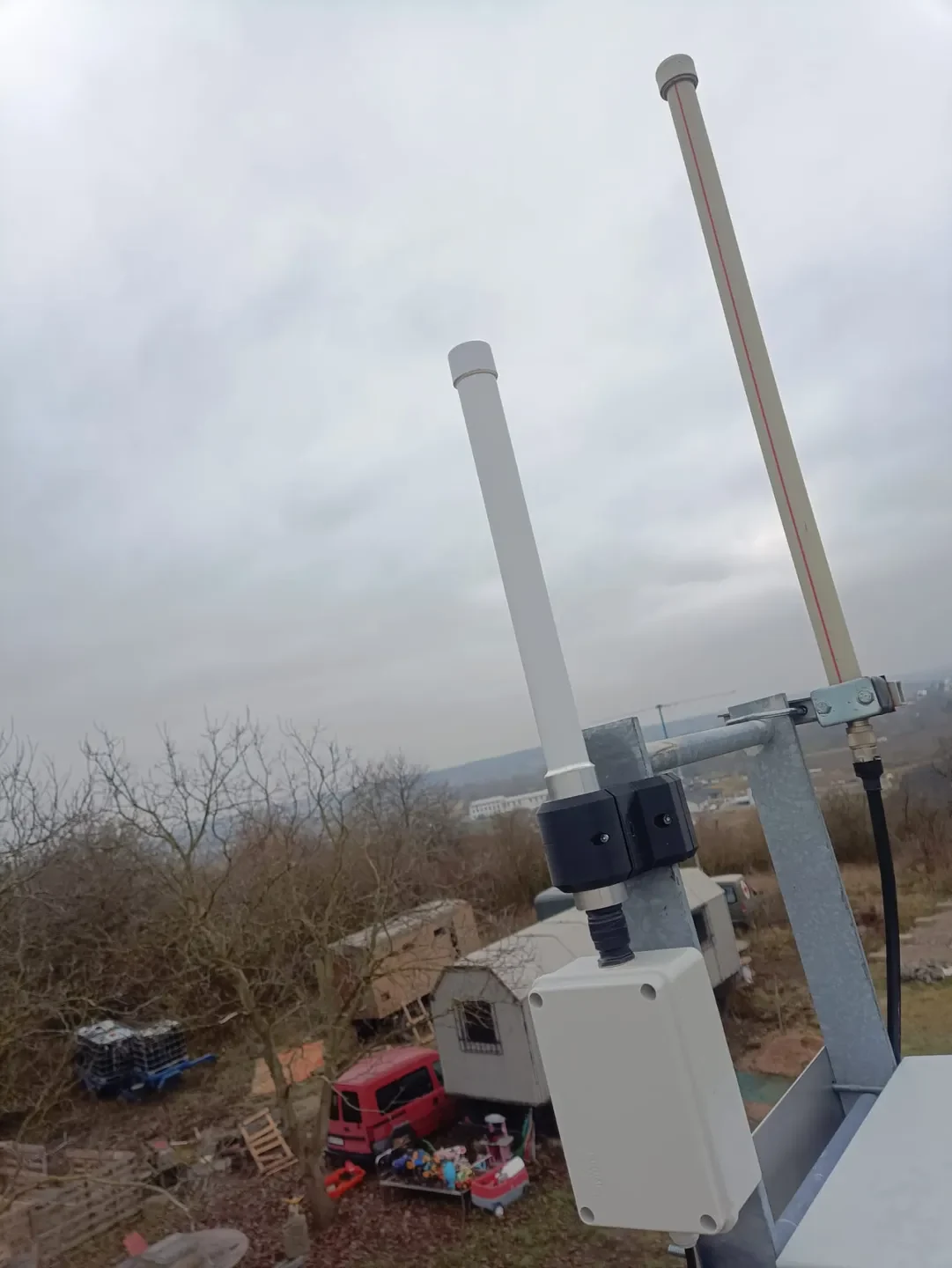

This is an outdoor Meshtastic installation. The 3D model consists of a part of the antenna holder and a part of the insert into the installation box.

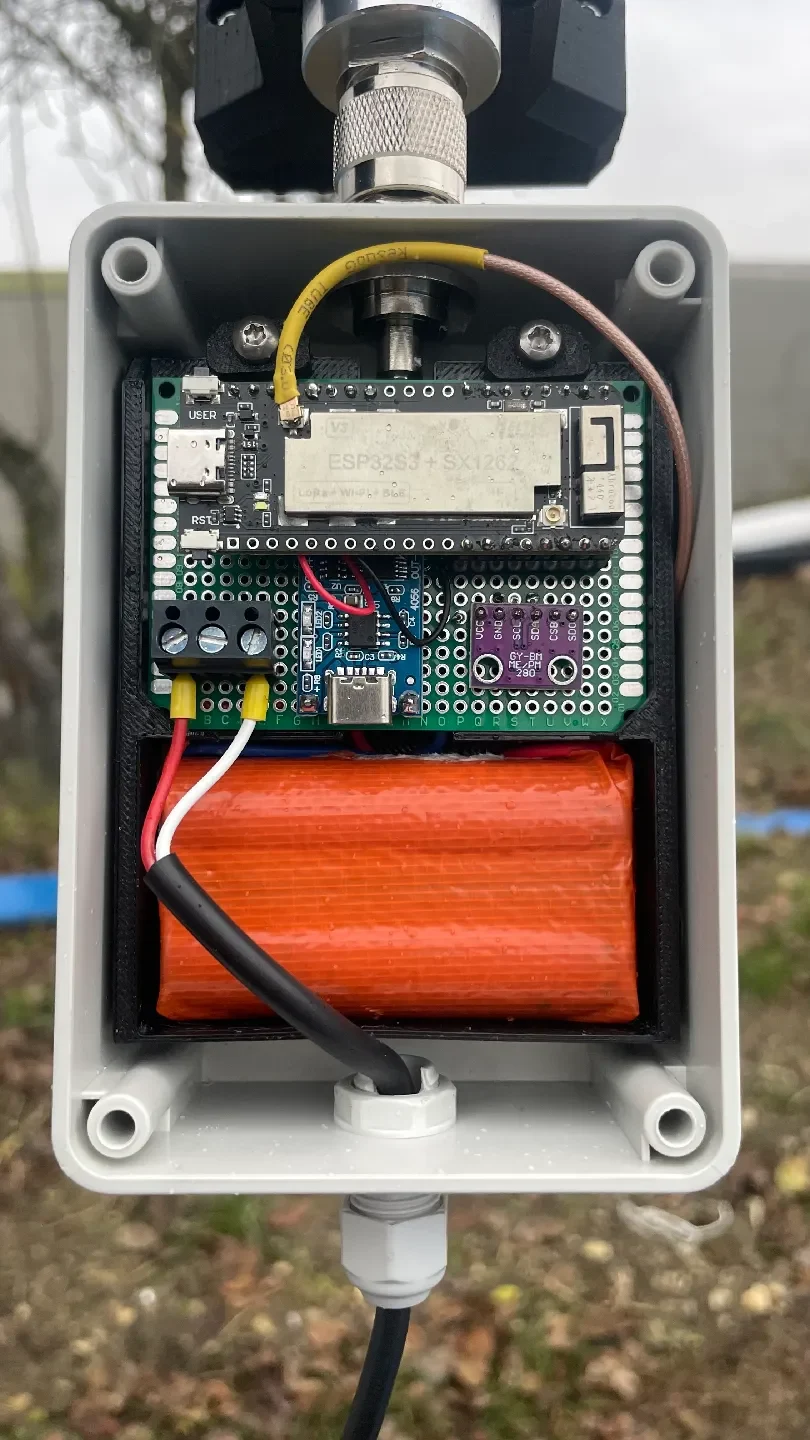

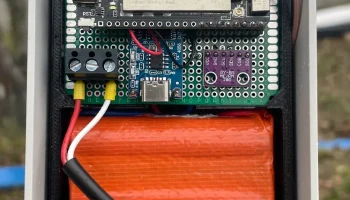

My installation consists of a Heltec Wireless Stick Lite, a Li-Ion battery charging module (Heltec can charge the battery itself, but I find it better and more reliable to charge the battery externally) and also a BMP180 sensor.

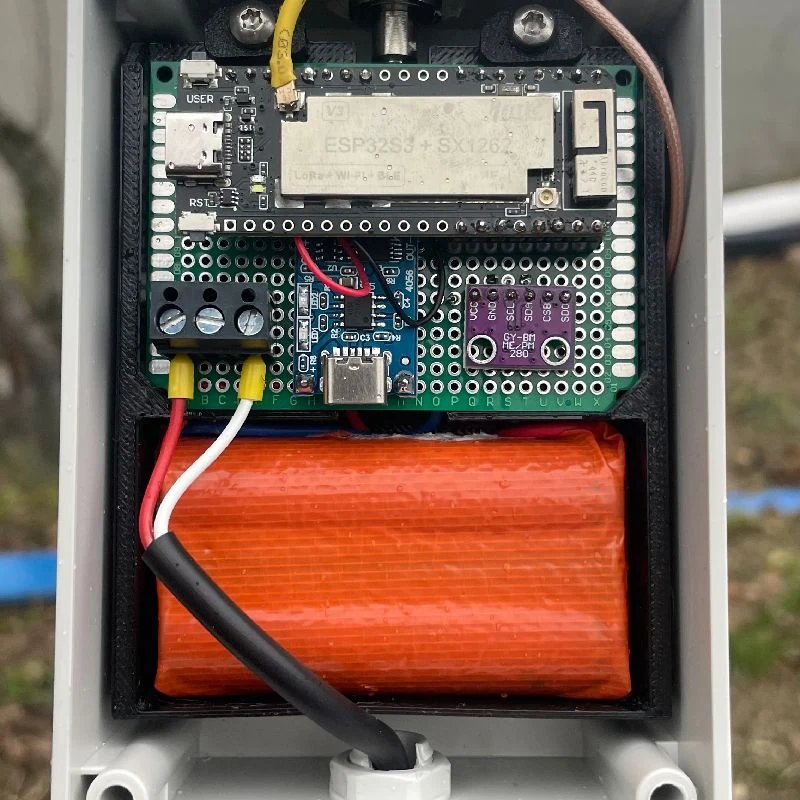

Since the insert contains a universal PCB board, it is possible to use basically any hardware as long as it fits on the PCB. There is also space in the insert for two 18650 batteries that serve as a backup power supply.

As for the antenna mount, there are also step files that allow you to customize the mount for your antenna or for the mounting location.

Parts List: (this is my part list, your list may be slightly different)

Parts Link
Heltec Wireless Stick Lite aliexpress.com
868 MHz Antenna aliexpress.com
Installation box kvelektro.cz
N to IPEX pigtail aliexpress.com
PCB (5x7 cm) aliexpress.com
BMP180 aliexpress.com
TP4056 aliexpress.com

Printing with supports, Infill: 15%.
