Case for Xiao NRF

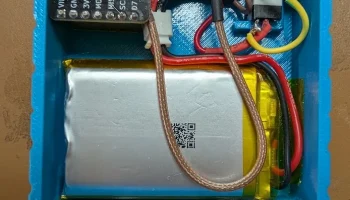

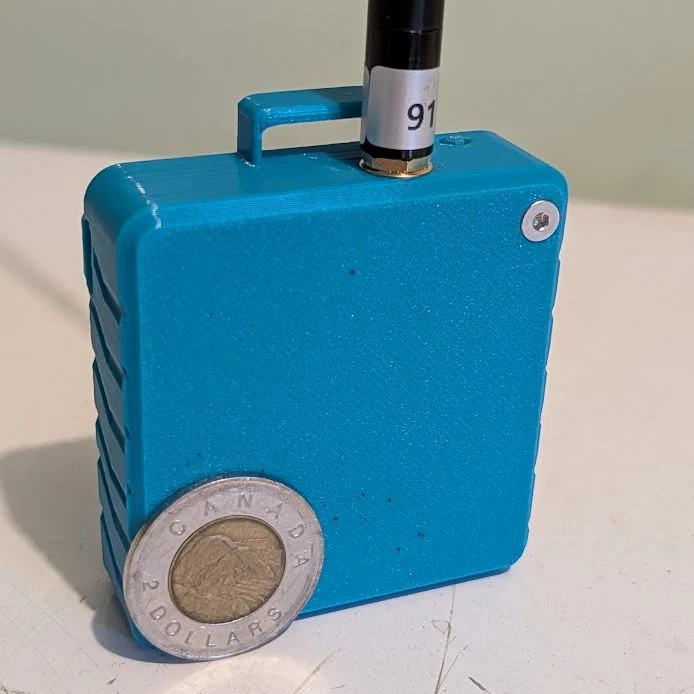

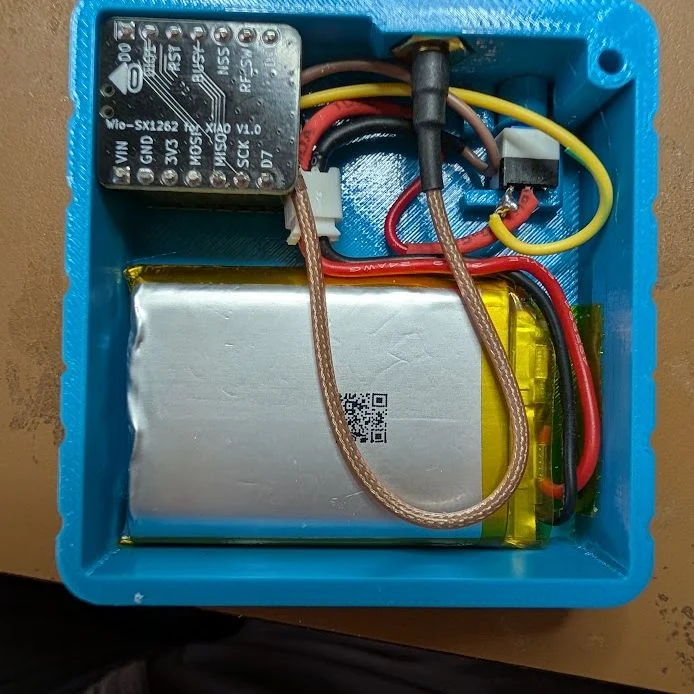

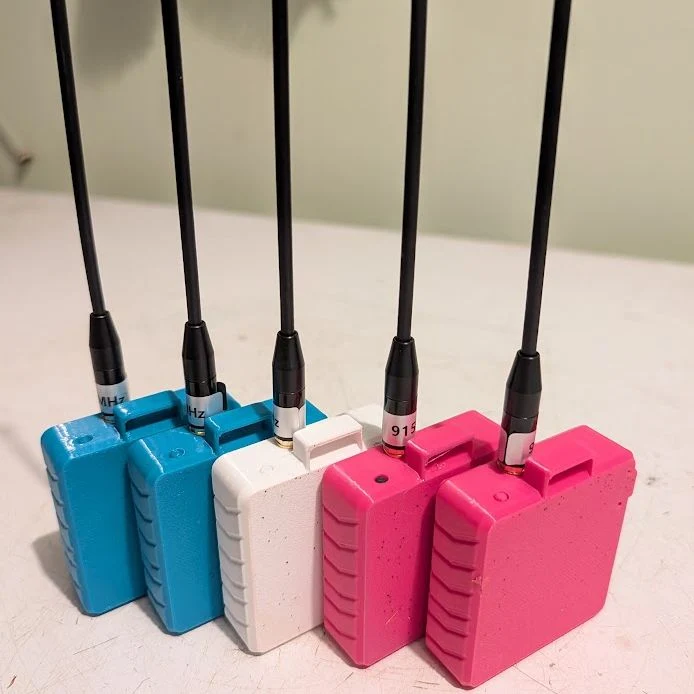

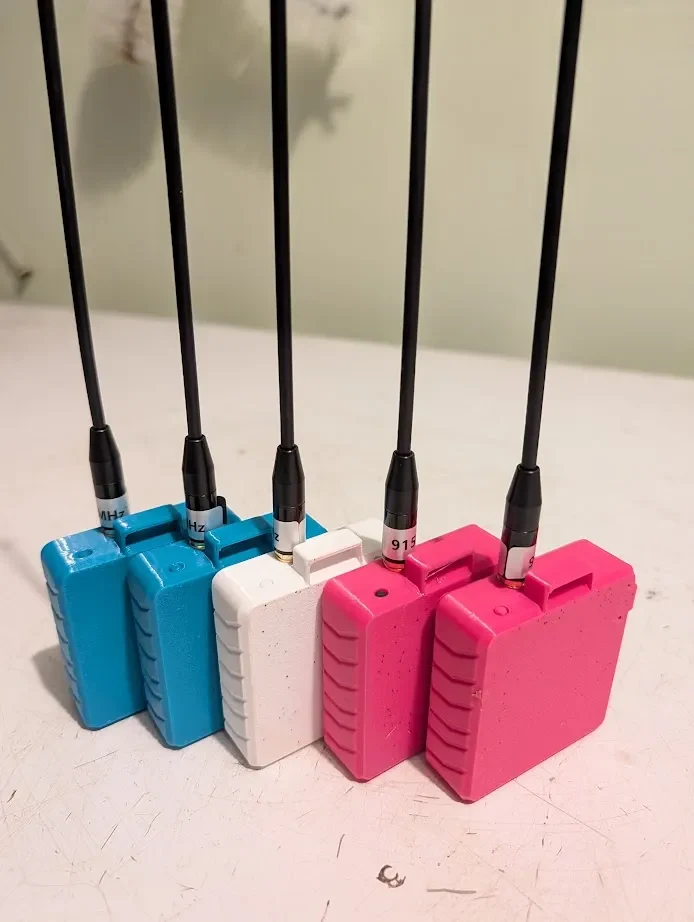

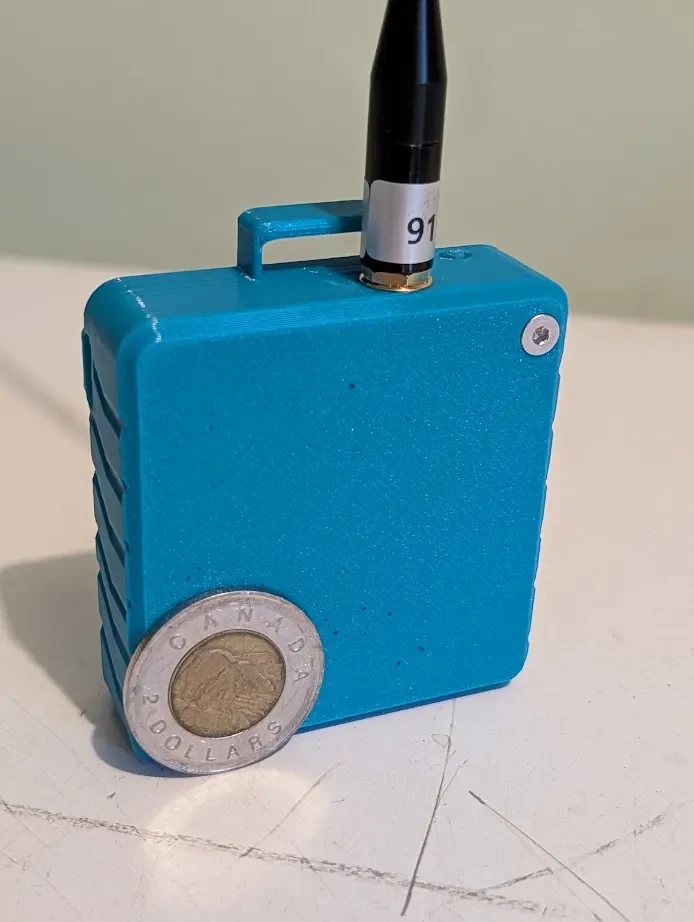

I love the Seeed Studio Xiao NRF boards. They are cheap and work well. I had originally made a different case but it was far less pretty and it only held a 500mah battery. This one makes for an awesome portable companion node. The only little tirck I do is cut a piece of the pink foam that comes with the board to put over the button in the case to keep it all in place.

Printing: Nothing fancy, I just use my standard settings for PETG, no brims, no supports.

Parts List:

Seeed Studio Xiao NRF version kit: XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic 868/915MHz LoRa

7mm x 7mm Push Button: 40Pcs Self-Locking Switch Push Button Swith Press On Off 6Pin Size 5.8x5.8mm 7x7mm 8X8mm 8.5x8.5mm

50x34x1 LiPo battery 2000mah: 103450 3.7V 2000mAh Li-Ion Battery with JST Plug

JST 2.0 female: not really necessary but I like to be able to disconnect the battery if need be so I solder thios in place and then add the battery.: 100pcs 2P JST PH 2.0 Plug 2.0mm Pitch 2 Pin Male and Female Housing Header Connectors Electric Cable Electrical Wire Connector — AliExpress

10cm sma pigtail (Could be shorter its just what I had): ALLiSHOP SMA Pigtail Jumper RP SMA Female to U.FL IPX RG178 1.13 Cable Sockets Jack Connectors Adapter for Wifi Router GPS AP — AliExpress

2 x M3x10mm CSK (countersunk) screws (12mm also works): M1.6 M2 M2.5 M3 M3.5 M4 M5 M6 M8 Stainless Steel Cross Recessed Pan/Countersunk Head Screw Phillips TV Computer Furniture Bolts — AliExpress

Optional: small piece of clear filament for the larger hole to show the flashing led.
