Heltec v4 Wall Mount (MeshCore/Mestastic)

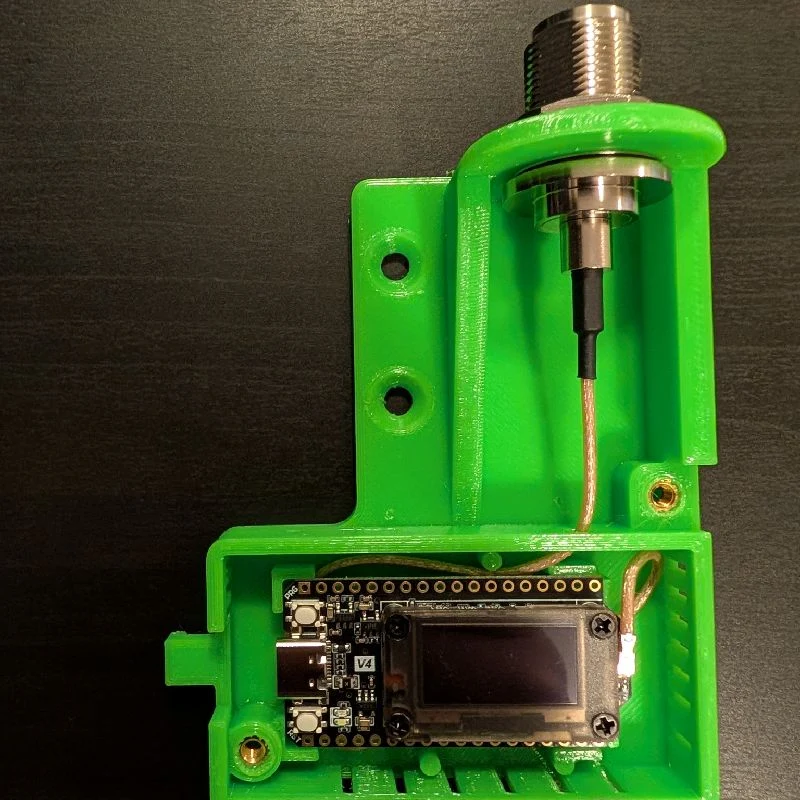

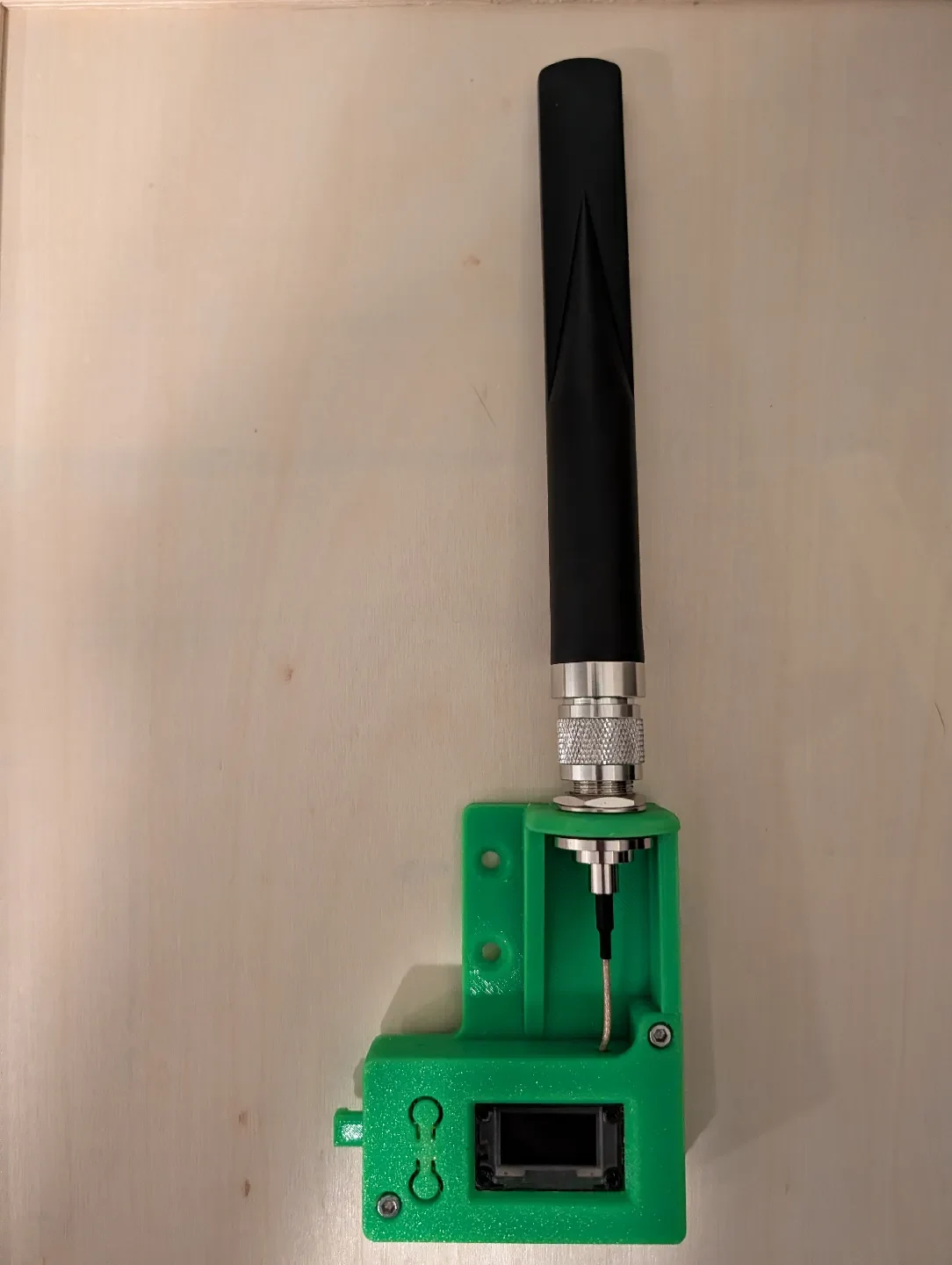

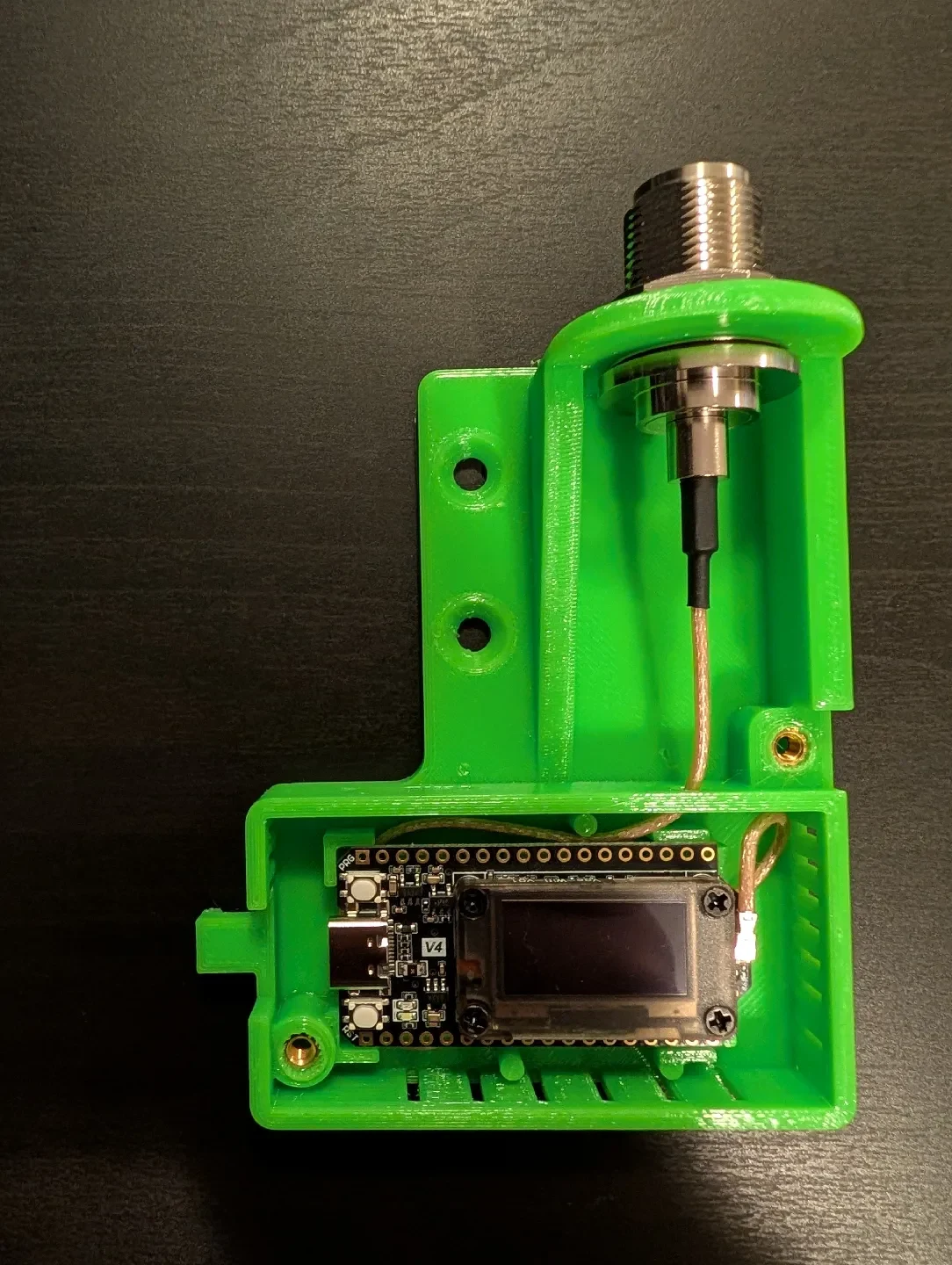

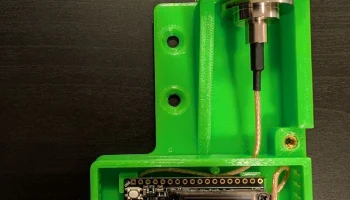

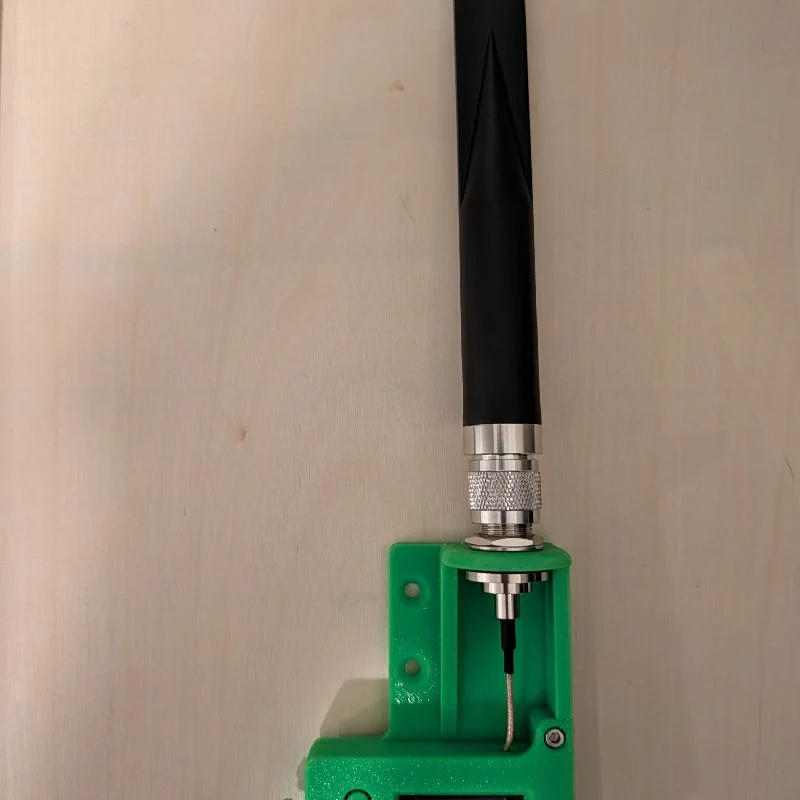

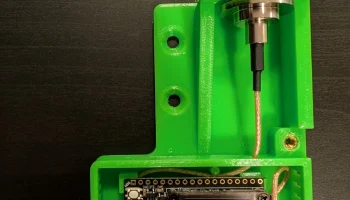

I designed this case to keep my base station in my attic. It's designed for a Heltec v4 with a Type-N bulkhead antenna on Amazon.

Features:

Cutouts for the OLED, USB, and coax

Working buttons

Vents to provide airflow while minimizing dust

A post behind the USB connector for a zip-tie (to keep the connector from falling out)

Two holes for mounting

Required parts:

Heltec V4

Type-N bulkhead antenna and adapter cable

(I used «Omni Meshtastic 915MHz Lora Antenna with N Male Connector & IPEX/u.fl Adapter Cable for Meshtastic LoRa HaLow Application Solar Node/Repeaters/Devices, Slinkdsco»)

M3*4*5 heatset inserts

2x M3 socket head machine screws

2 wood screws

PETG filament recommended for attic installation!

NOTE: This is not intended for desktop use — the design is top-heavy and easily tips forward. You could probably make a simple base if desired — or find a better design more suited to your needs.

Designed in collaboration with Claude Opus 5 + Fusion MCP.
