Faketec V4 case Meshtastic Digimon Digivice

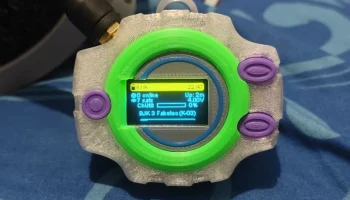

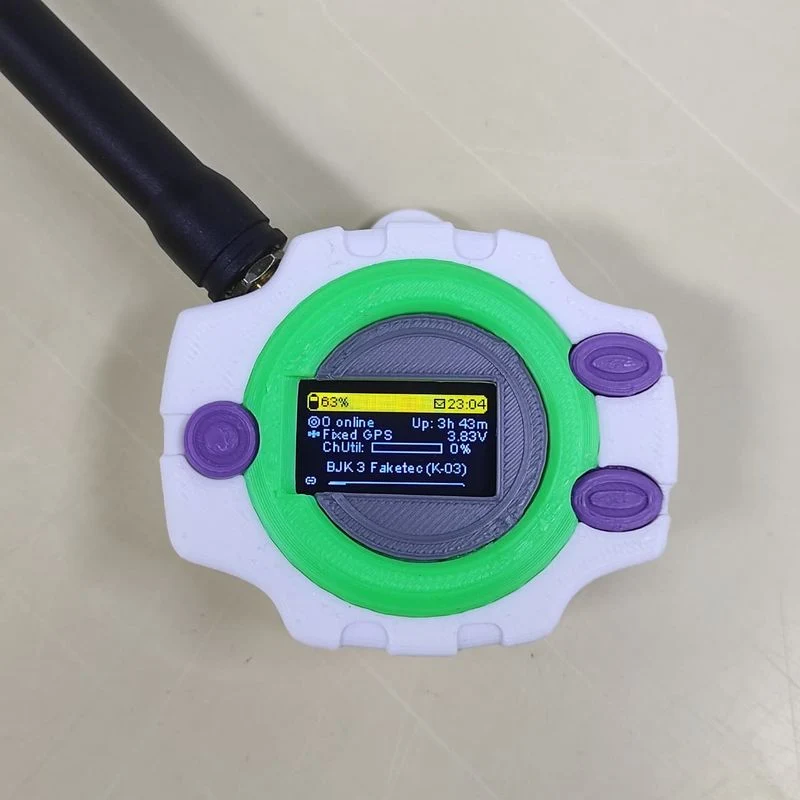

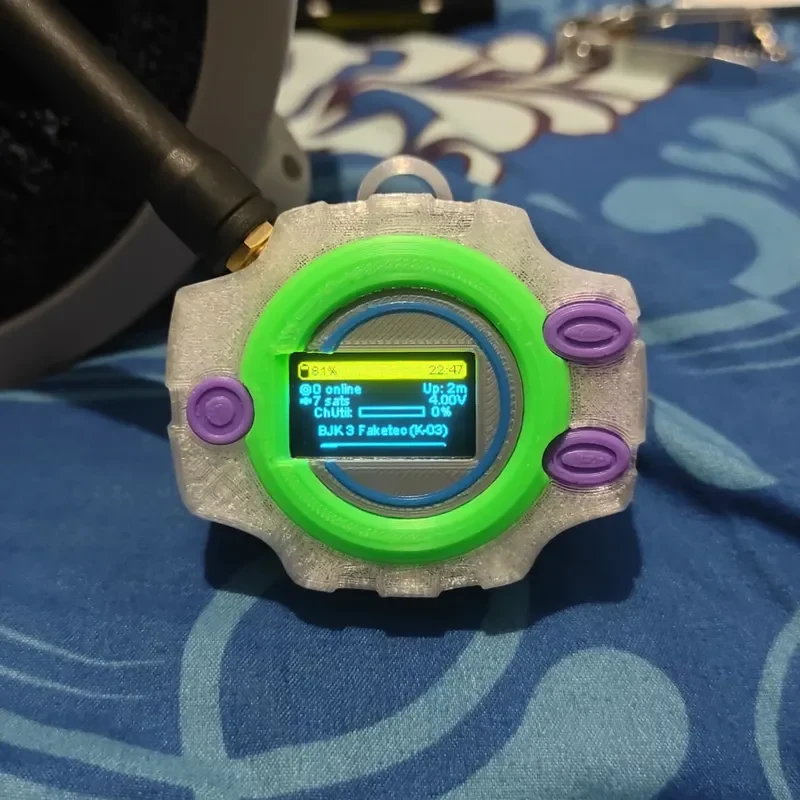

This is a case for the Faketec, inspired by the Digivice, a nostalgic reminder of my childhood.

The front cover is now separate so you can print it in different colors.

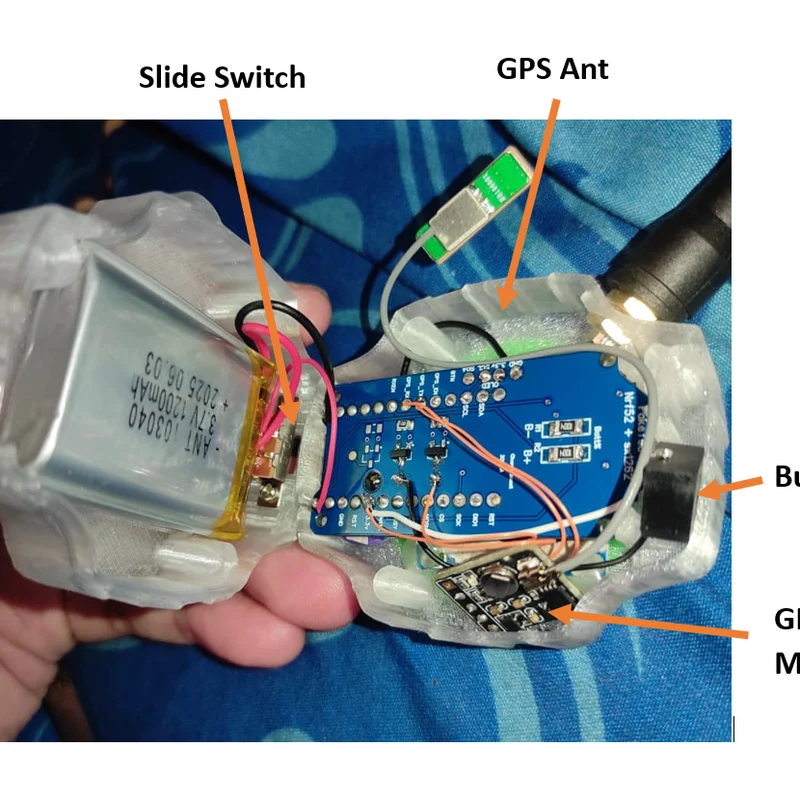

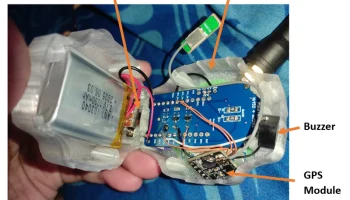

Now it can accommodate antenna with SMA connector, bigger 103040 battery, and a slide switch. Also a mini buzzer (up to 10x10 mm x 5 mm), a mini GPS/GNSS module like the ATGM336H and the included mini antenna, or other patch antenna up to 18x18 mm x 6 mm.

P.S. For the 0.96" OLED, since there are many modules out there in various sizes and dimensions, I decided to just use small cables to connect it to the PCB, then hot glue it to the front case, this way you can use any display variations.

Use M2x6 for the exterior and M2x4 (max length) for the slide switch.

Print with the orientation according to the STL file for optimal results, or you can experiment with what works best for you.
