Mesh Magnetic Roof Solar Node

Meshtastic

Источник:

www.printables.com

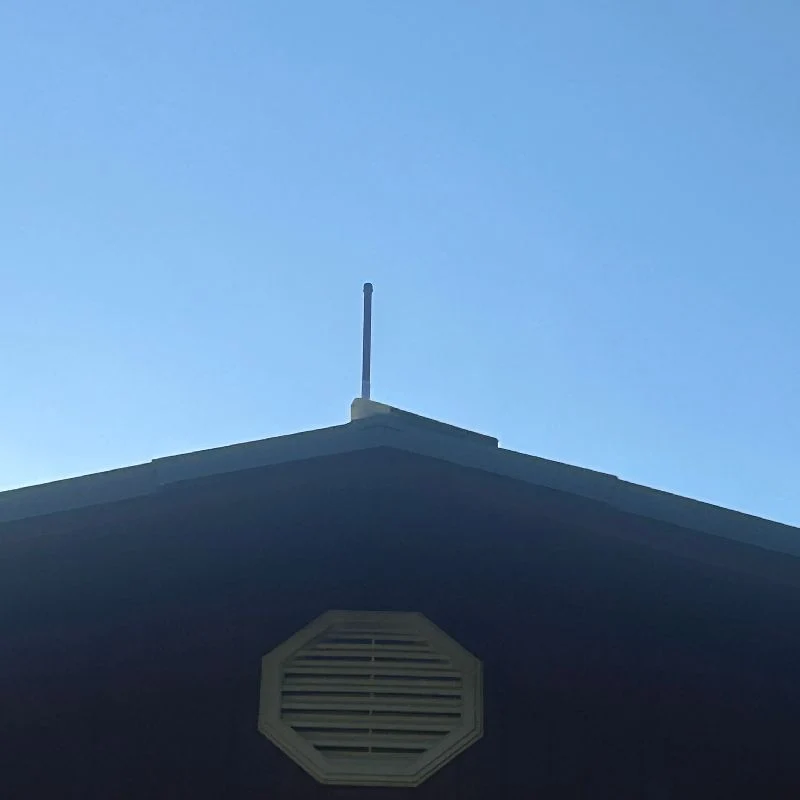

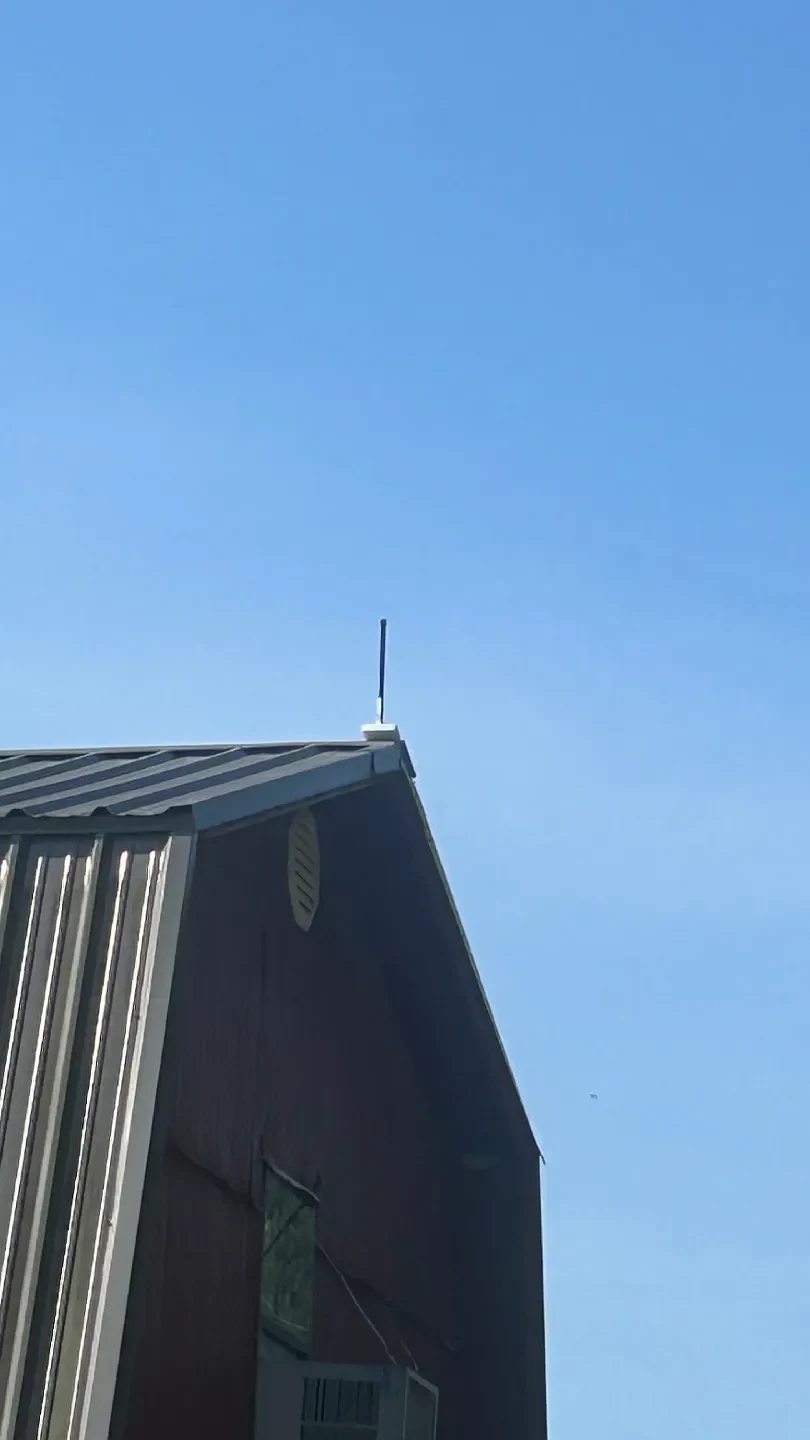

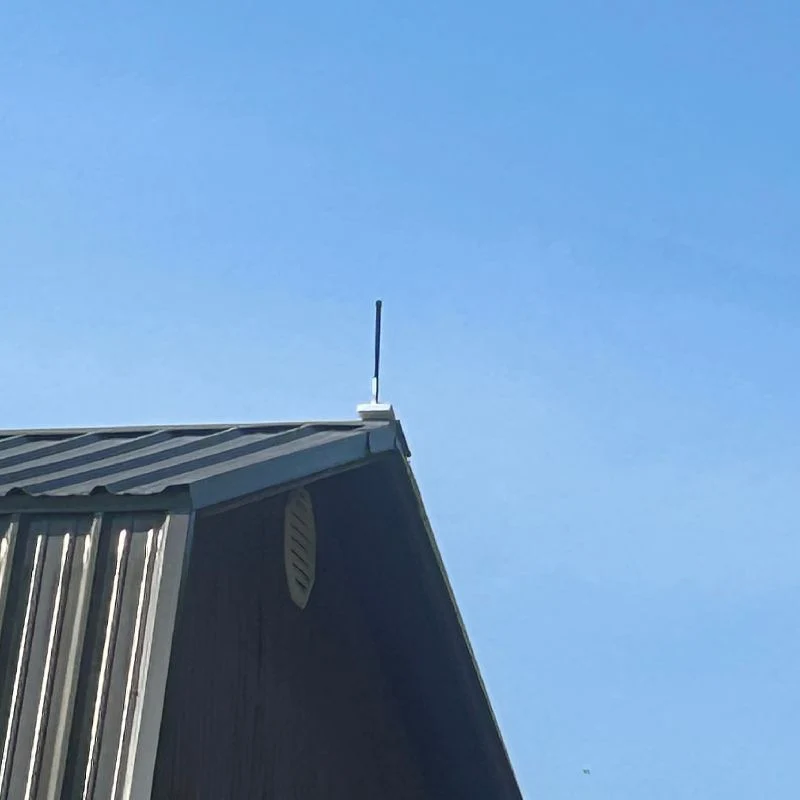

I made this shell for a 4/12 roof pitch. This could easily be adjusted for other pitches. I haven't done this yet, but I have included the .fcstd file should you need it.

Here is the parts list I used:

Battery: https://www.amazon.com/Meshnology-10000mAh-1163115-Protection-Insulated/dp/B0F1FMN2C5/ref=sr_1_1?sr=8-1

RAK19003: https://www.amazon.com/RAKwireless-WisBlock-Meshtastic-Starter-RAK19003/dp/B0DFMMTQZM/ref=sr_1_1?sr=8-1

--OR--

RAK 1W: https://www.aliexpress.us/item/3256811736366313.html?spm=a2g0o.productlist.main.1.3becwi1bwi1bWO&algo_pvid=68f02fa8-1c97-493d-a89f-6f68b02ce8f3&algo_exp_id=68f02fa8-1c97-493d-a89f-6f68b02ce8f3-0&pdp_ext_f=%7B%22order%22%3A%22723%22%2C%22eval%22%3A%221%22%2C%22fromPage%22%3A%22search%22%7D&pdp_npi=6%40dis%21USD%2141.63%2136.63%21%21%2141.63%2136.63%21%402101eede17838040987116351e575a%2112000057045396568%21sea%21US%210%21ABX%211%210%21n_tag%3A-29910%3Bd%3A500fb4f0%3Bm03_new_user%3A-29895%3BpisId%3A5000000210913316&curPageLogUid=kr4W4Tfm9nkX&utparam-url=scene%3Asearch%7Cquery_from%3A%7Cx_object_id%3A1005011922681065%7C_p_origin_prod%3A

Fiberglass «5.8db» N-Type LoRa 915mhz Antenna: https://www.amazon.com/Waterproof-Meshtastic-Repeaters-Fiberglass-Connector/dp/B0GBSTPHKG/ref=sr_1_4?nsdOptOutParam=true&s=electronics&sr=1-4

Solar Panel Alternative: https://www.amazon.com/Monocrystalline-Waterproof-Lightweight-Backpack-Cellphone/dp/B0C4L1L1BD/ref=sr_1_6?sr=8-6

Magnetic Feet: https://www.amazon.com/DIYMAG-Anti-Scratch-Mounting-Neodymium-Studs%EF%BC%8CStrong/dp/B0CW5ZVMF6/ref=sr_1_6?sr=8-6

N-Type to UFL (often comes with antenna)

M3x8 (x11)

1.5mm pitch JST connector: https://www.amazon.com/10-Micro-2-Pin-Connector-Cables/dp/B06XYR8LQ1/ref=sr_1_4?nsdOptOutParam=true&sr=8-4

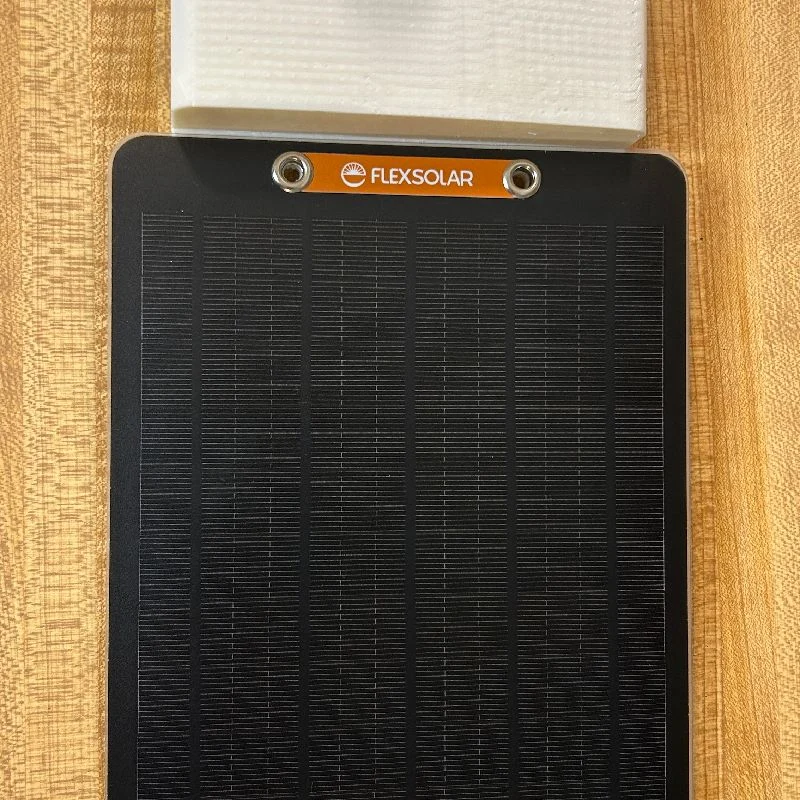

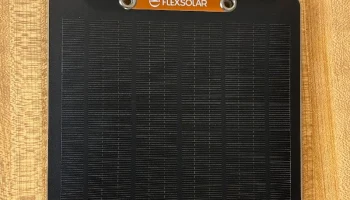

I soldered a 1.5mm pitch JST connector to the solar panel USB output. This will plug directly into the RAK's solar input. Not thrilled with the antenna; will probably replace it.

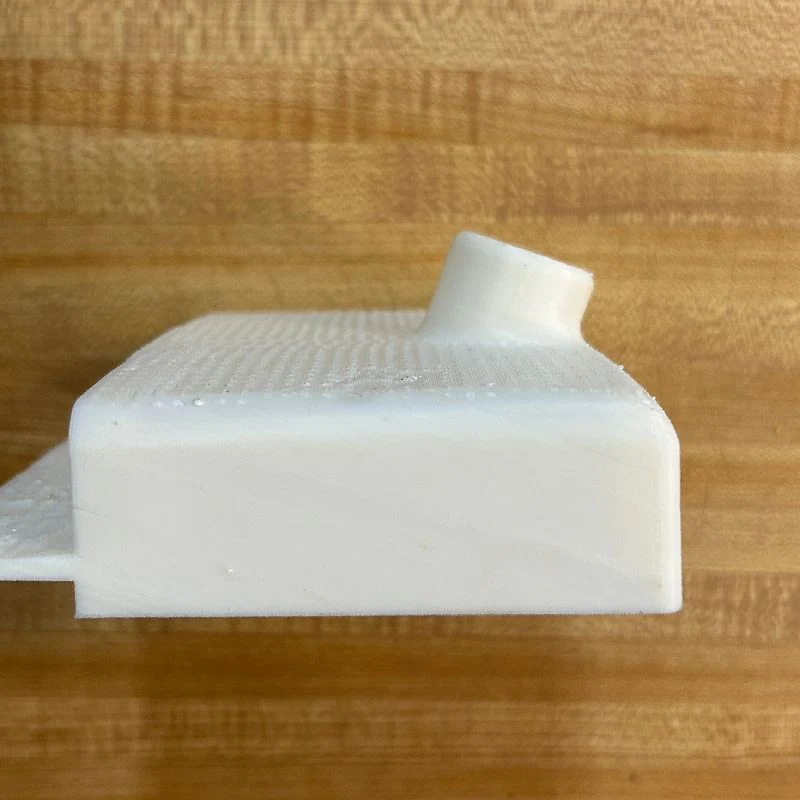

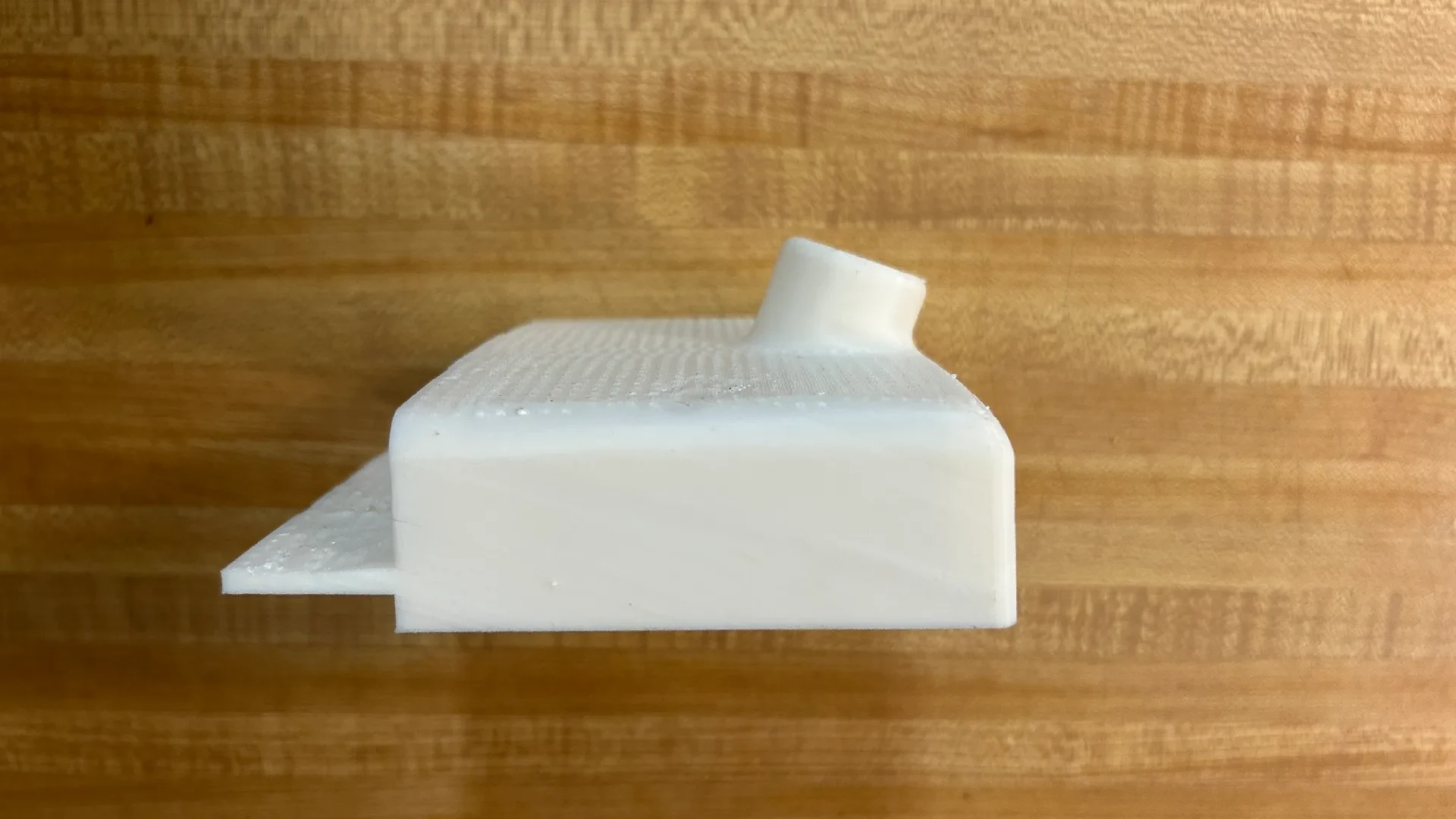

Assembly should be straight forward. I ended up printing the shell outside down at a 40deg angle with the solar mount lip toward the bottom. I got better results with normal supports than with tree supports.
