Micro Core and Micro Hub - Peoples Repeater

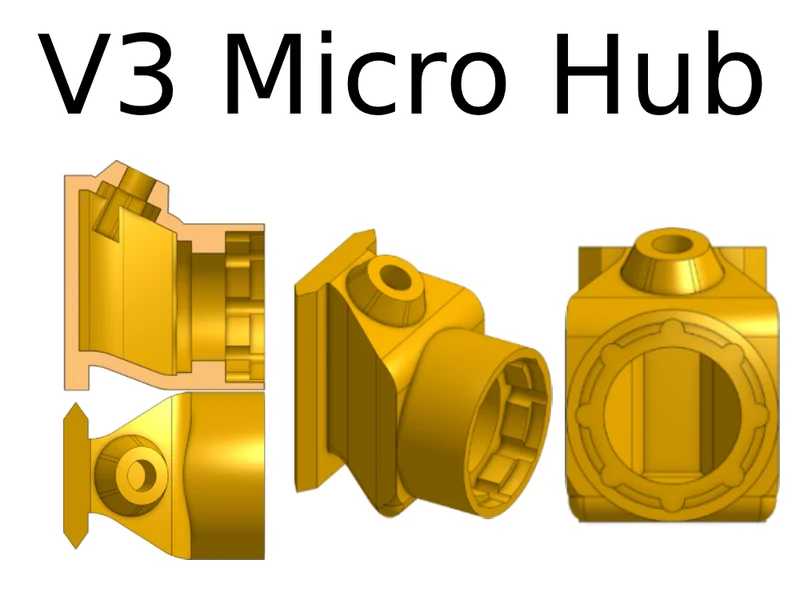

The Micro Hub is a compact design the replace the original hub from Black Flag Civilian. You can place it directly into the original wall mount, but for any new installs I would recommend printing the new Tall Wall mount. Update Aug/10/2026 — Micro Core AIO is uploaded. Even smaller, with three mounting options!
Materials
— I printed in ABS but it doesn't matter. Designed to print with lower temp filaments in mind* (even PLA, the Peoples Filament ☭ o7).
Printing

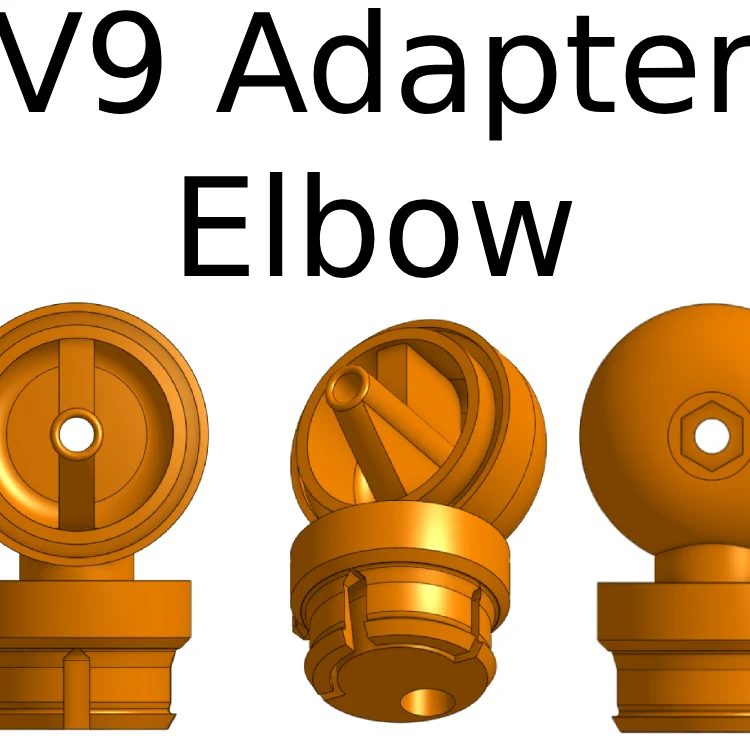

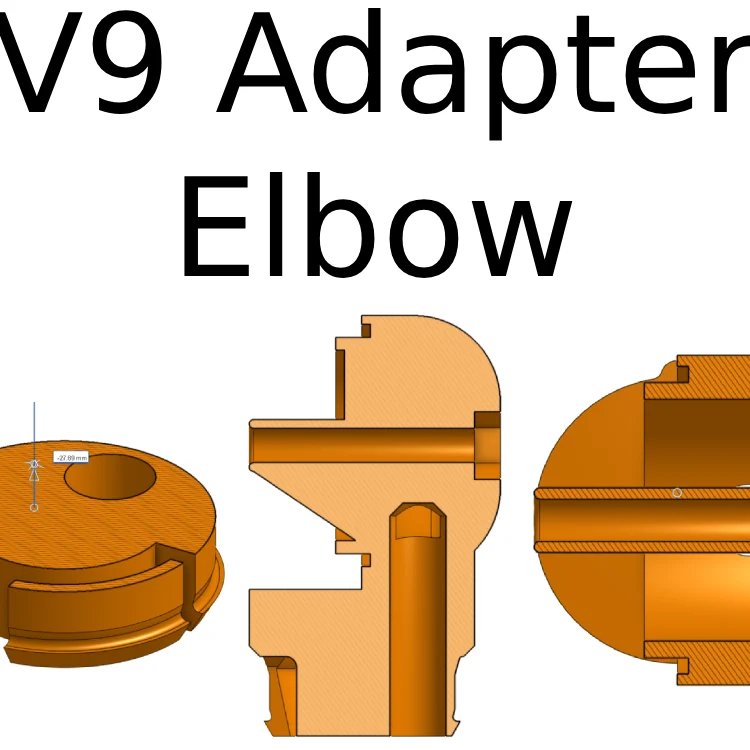

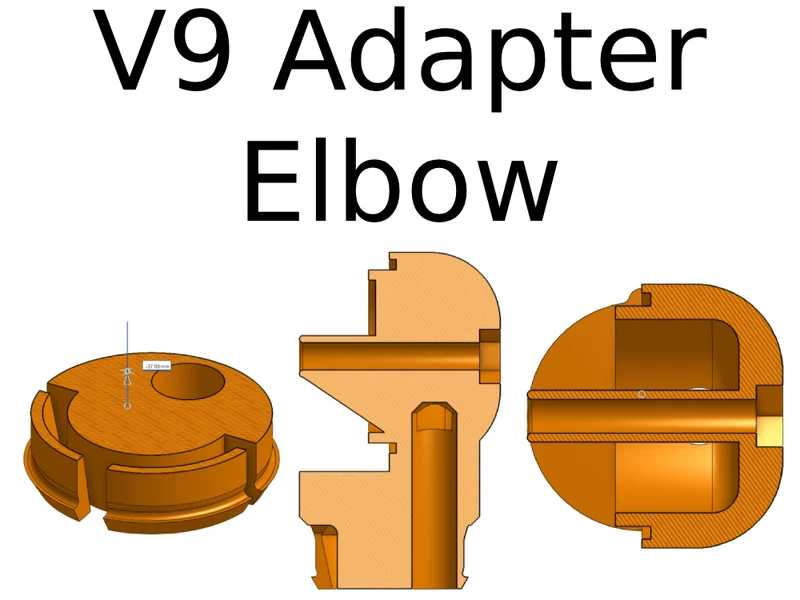

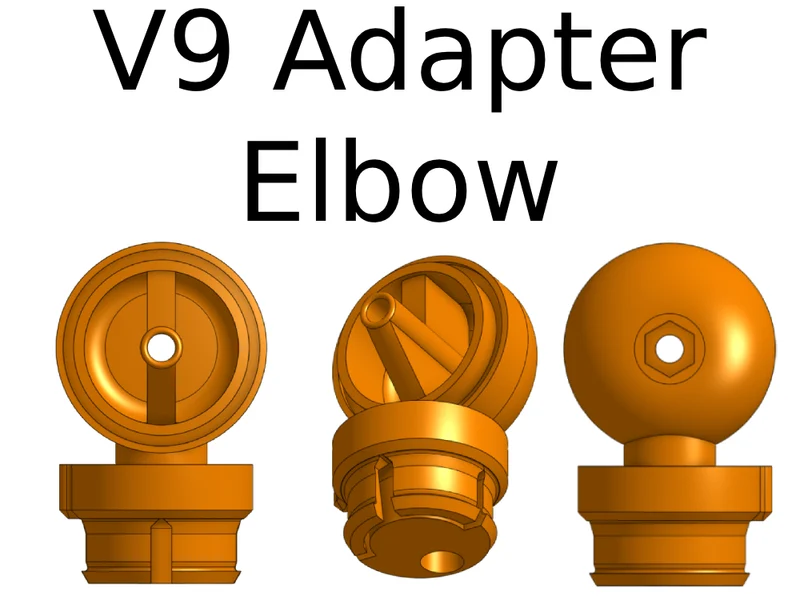

— Default orientation is best. If you have issues with durability on the locking tabs of the adapter, you can print that horizontally, nut side down.
— In the default orientation, no support material is needed.
— Designed with .06 nozzles, anything at or below this should work without issue.
Changes in design
— Micro Hub includes 8 locking holes, allowing a stable resting position every 45 degrees. With an angled antenna mount for less interference** when mounting to metal poles.

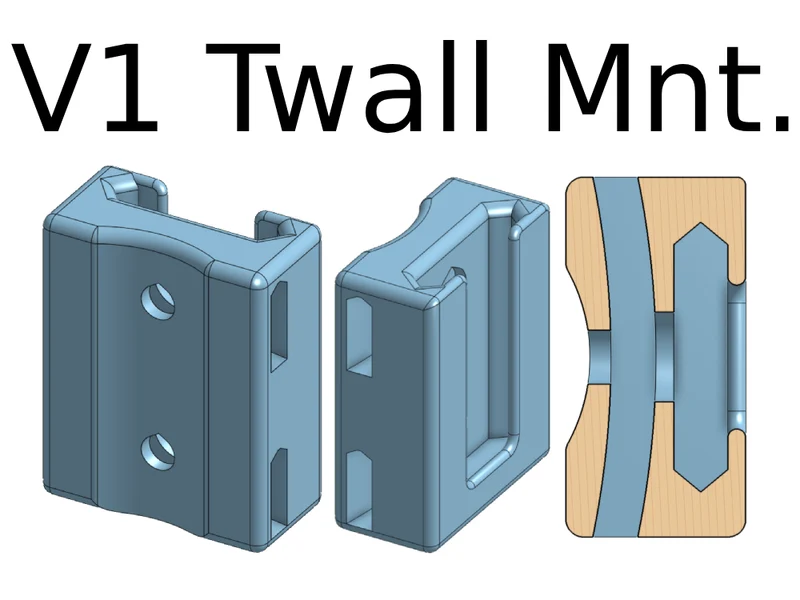

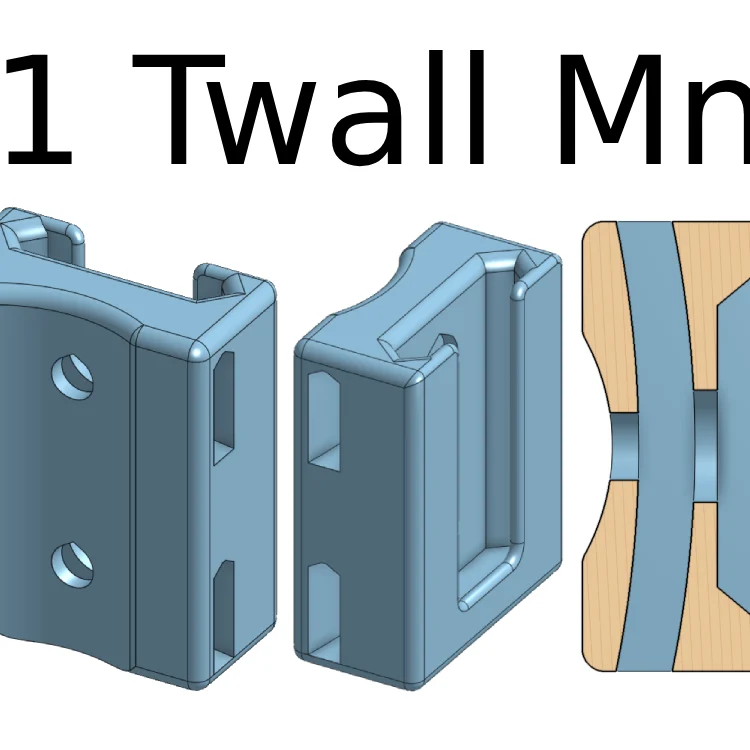

— The 'Twall' Mount has ~4x larger band hole cross section, allowing for band/screw-clamps or some very hefty zip-ties. The screw holes remain ~1/4", or 6mm, with an improved countersink depth.

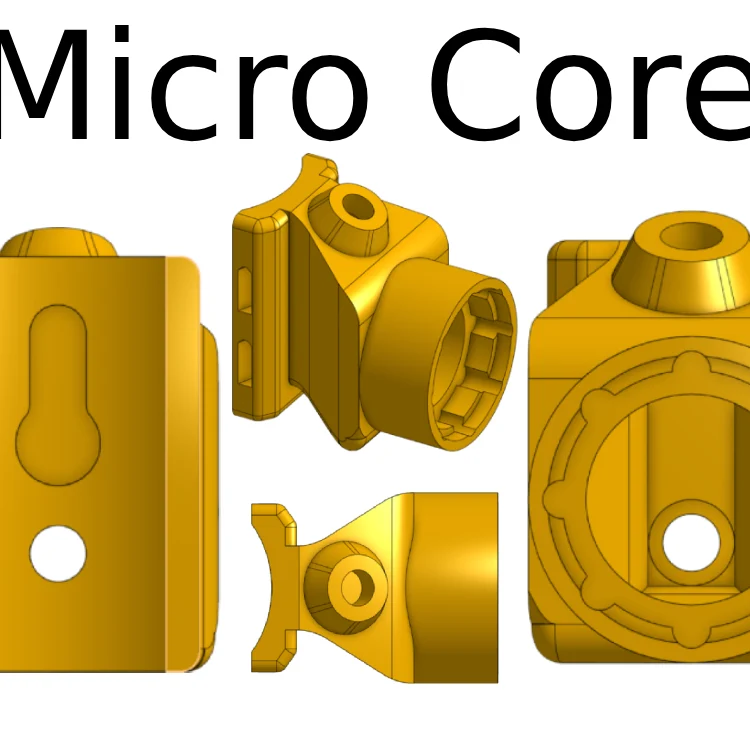

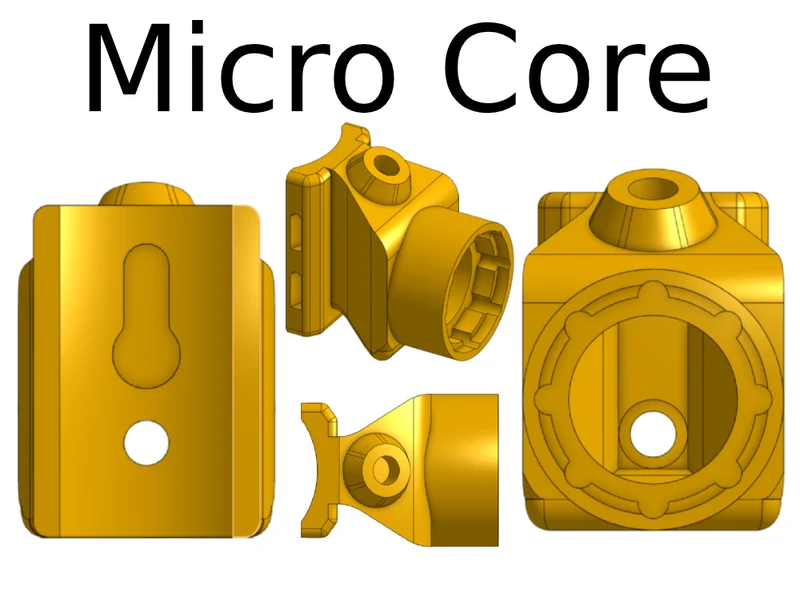

— Micro Core AIO is an exceptionally compact combination of mount and hub. This design retains a dual screw mounting setup, one keyhole and one interior accesible screw hole. This is more tamper resistant and far more theft resistant than a simple slot-in mount. Unfortunately due to its size and geometric constraints, it forgoes the larger band clamp holes. Screws or zip-ties only.
* The taller mount (%30) and shorter hub provide (%75 and %50 respectively) have more surface area and shorter leverage, reducing potential deflection of the wings of the mount in two piece configurations. I will be uploading a single piece Combo Hub shortly to eliminate this problem entirely.
** I don't know if this will help excessively with an omni antenna, but I lack the expertise to know off-hand or the equipment to measure it objectively. Please leave any leads in the comments for further research.
Not super handy with the electronics side? Go watch Blag Flag Civilians comprehensive video about his original mount. You can find it through his model on Printables below. \/\/\/\/\/\/\/\/
Post your makes! Your girl loves to see her designs in peoples lives ^^ <3
