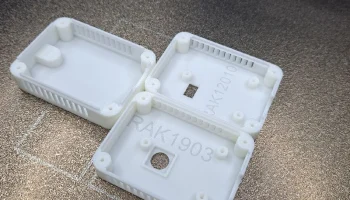

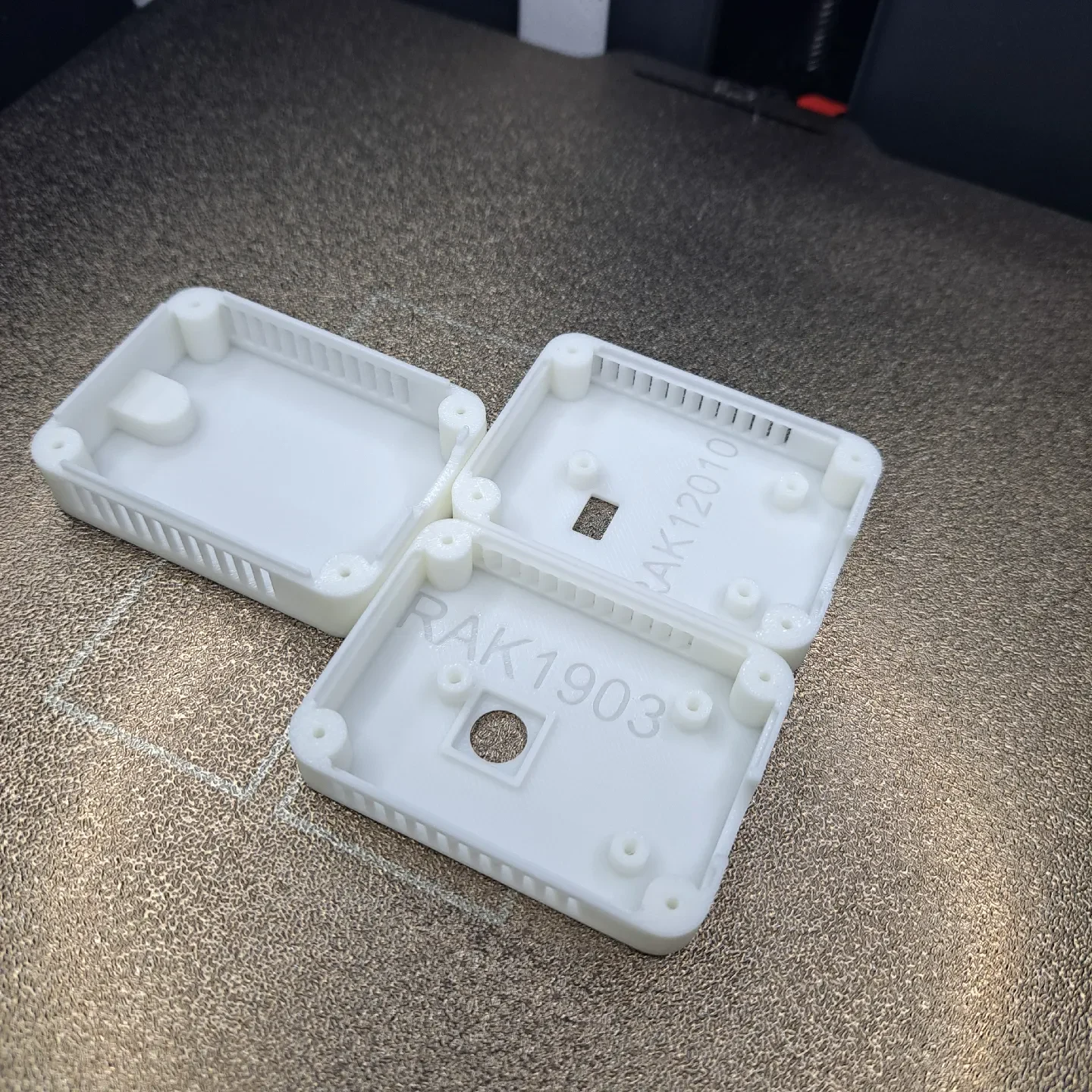

RAK Indoor Small Light Sensor RAK1903 or RAK12010

Another small sensor enclosure. Can be used with LoRa, LoRaWAN, Meshtastic or other LoRa networks.

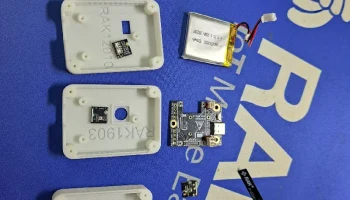

Supports a small battery up to 500mA (30 x 35 x 4 mm).

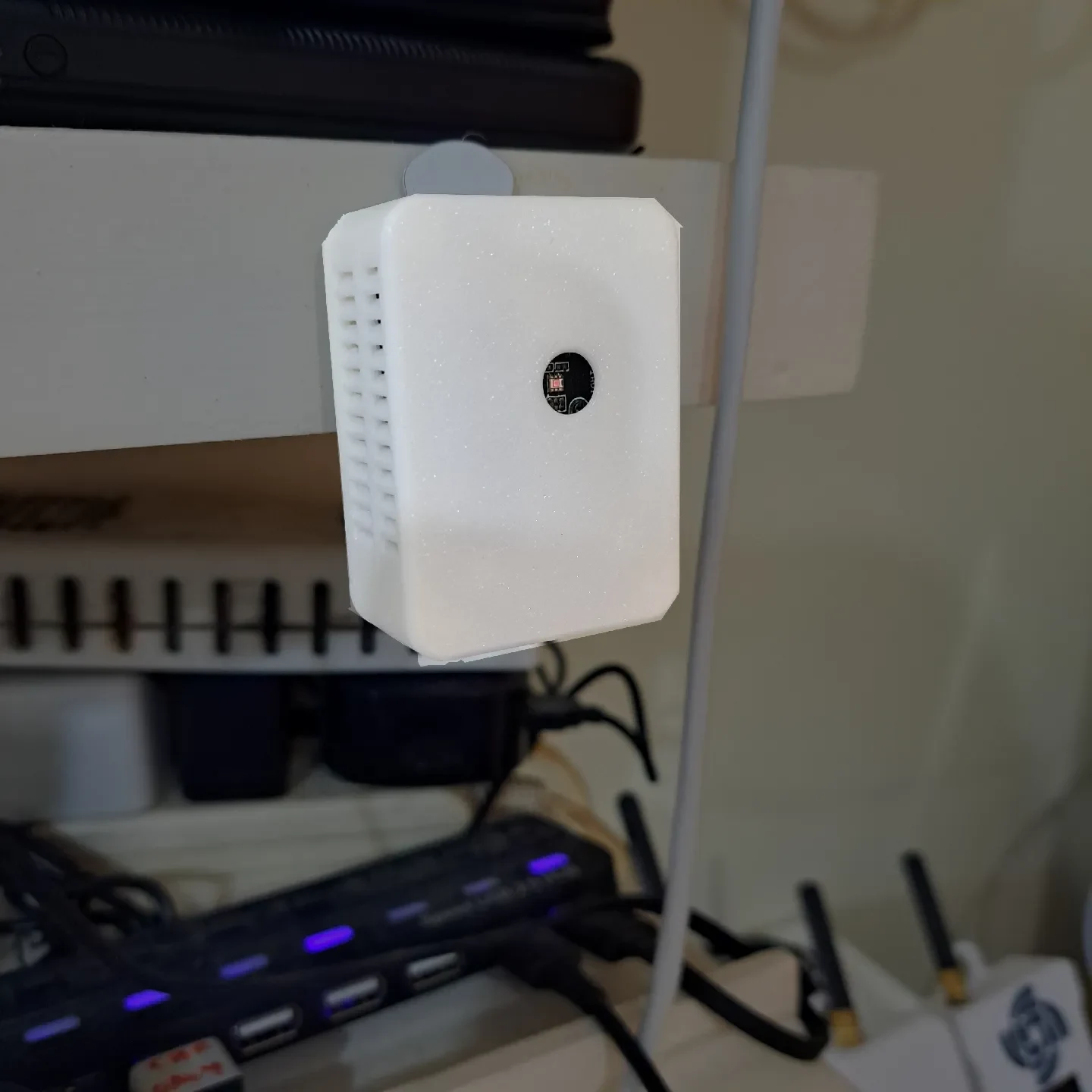

Easy wall mount
USB access for recharging

Required parts:

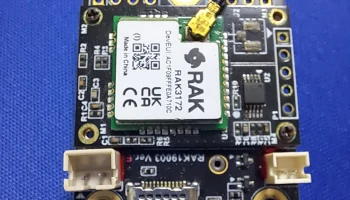

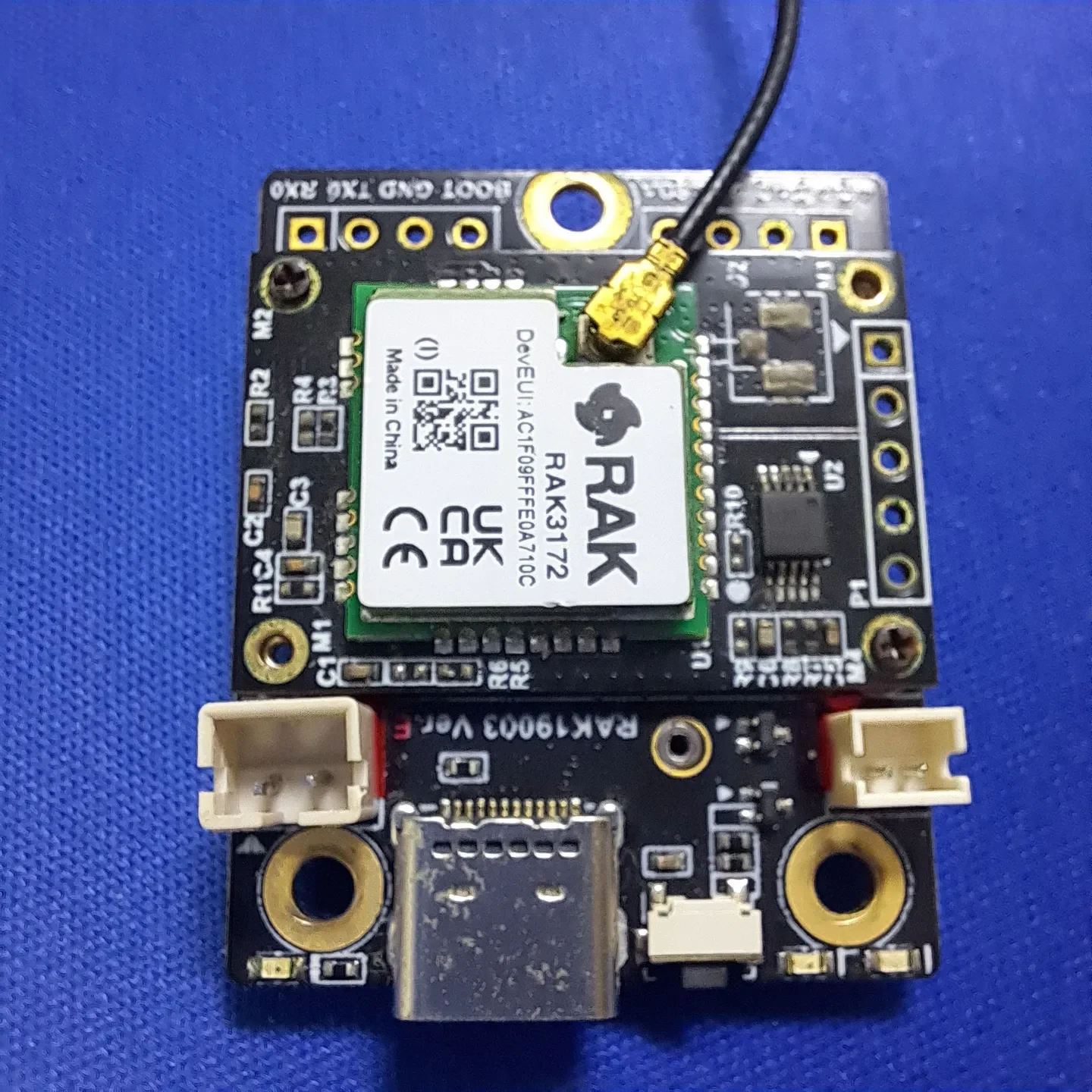

RAK19003 WisBlock Mini Base Board

RAK 3372 WisBlock Core module

Alt. RAK4631 WisBlock Core module

Alt. RAK3312 WisBlock Core module

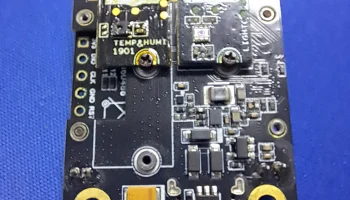

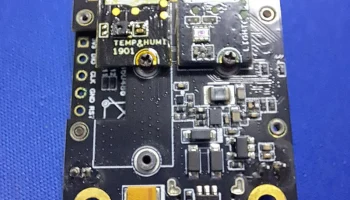

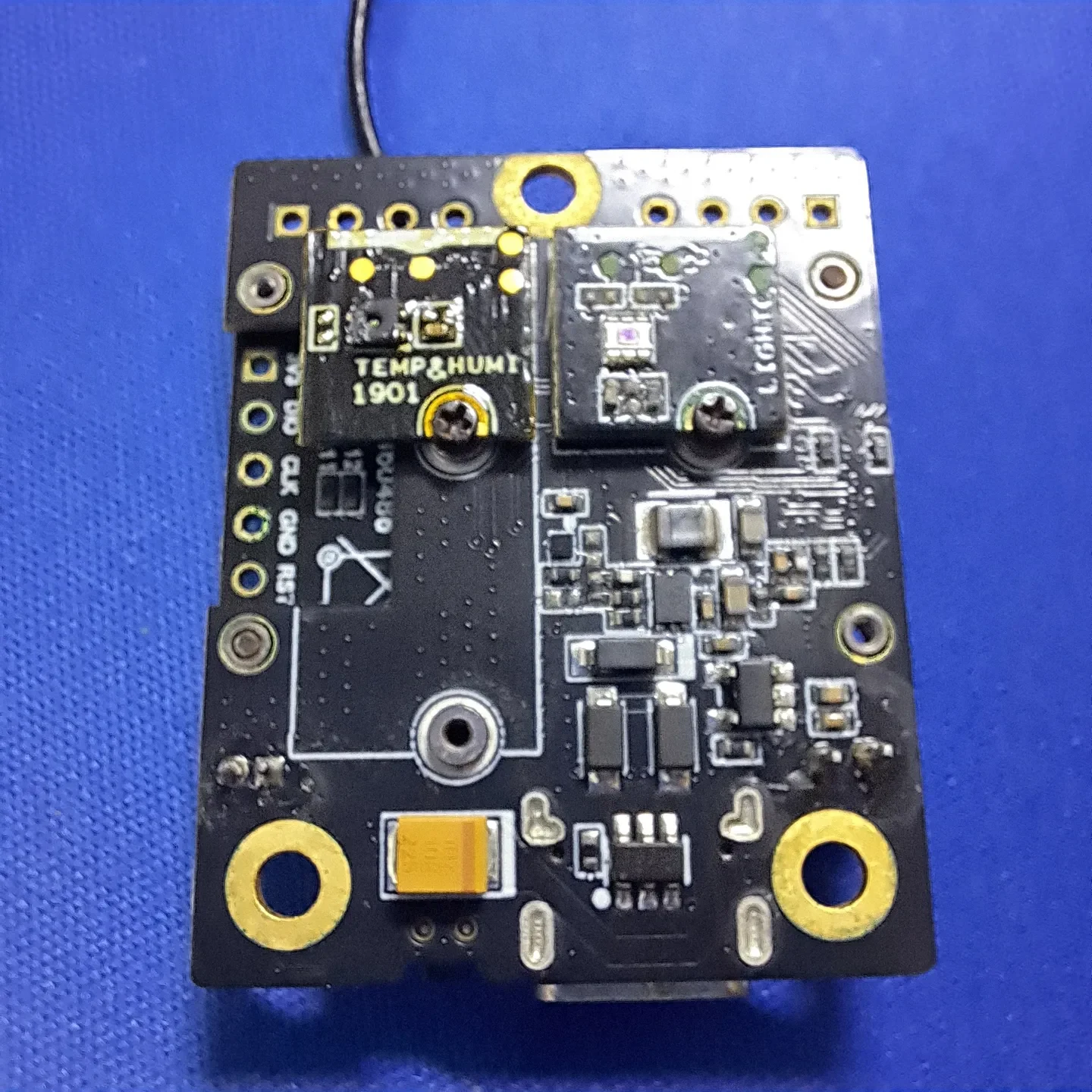

RAK1901 WisBlock Temperature & Humidity sensor

RAK1903 WisBlock Light sensor (TI OPT3001)

or RAK12010 WisBlock Light sensor (Vishay VEML7700)

6 pcs 1.2mm screws to fix WisBlock modules (comes with the modules)

3 pcs 2 x 5mm self-tapping screws to fix Base Board in the enclosure

4 pcs 2 x 6mm self-tapping screws to fix the enclosure

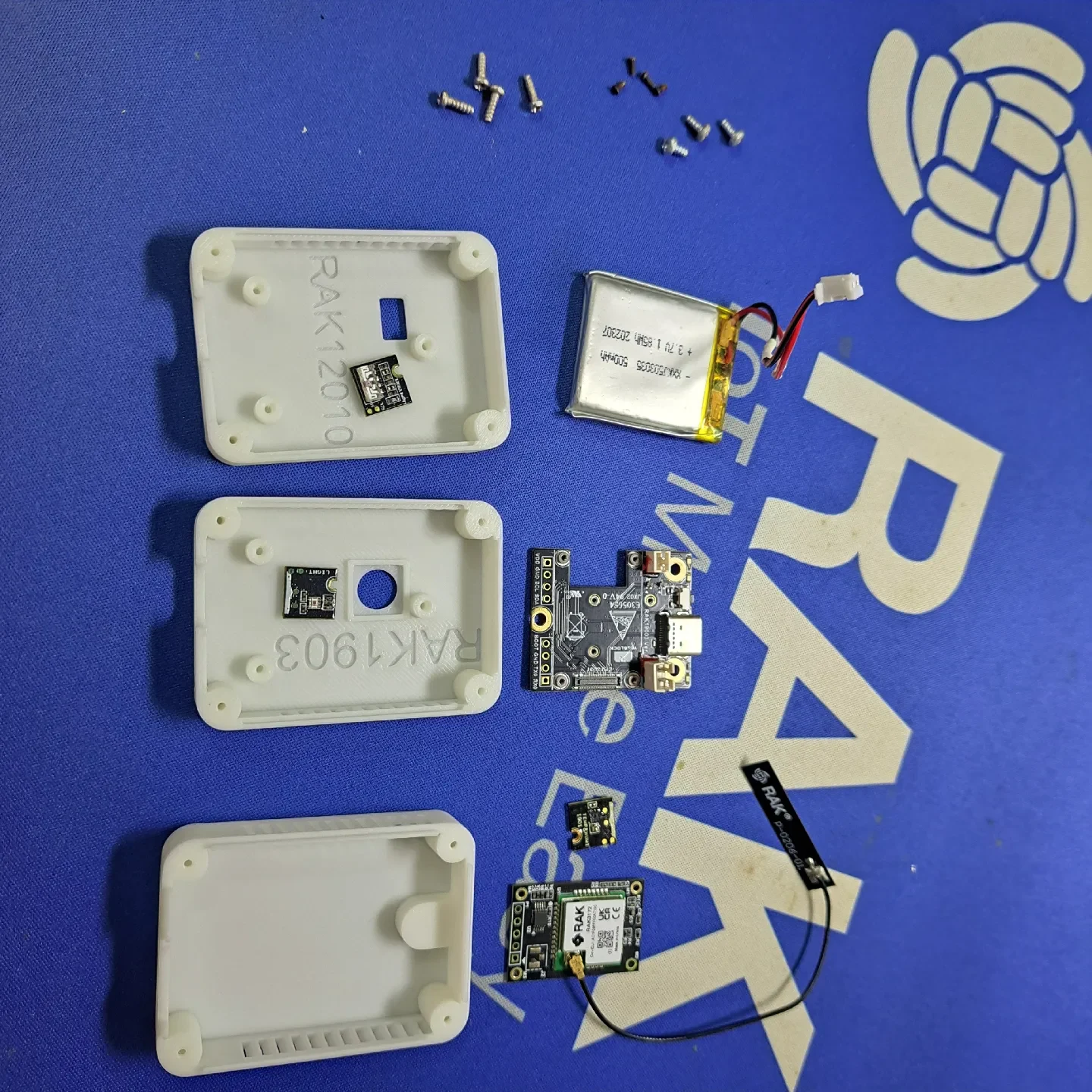

For assembly check model pictures.

Supported firmware:

WisBlock-Sensor-For-LoRaWAN

RAK4631-Kit-1-RAK1901-RAK1902-RAK1903

RUI3-Env-IAQ

RUI3-Sensor-Node-Air-Quality

RUI3-WisBlock-Kit-1
