104245 Battery Sled for Mesh
Источник:

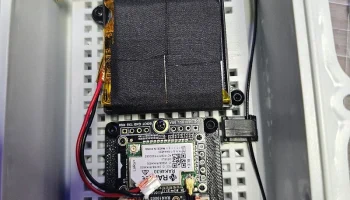

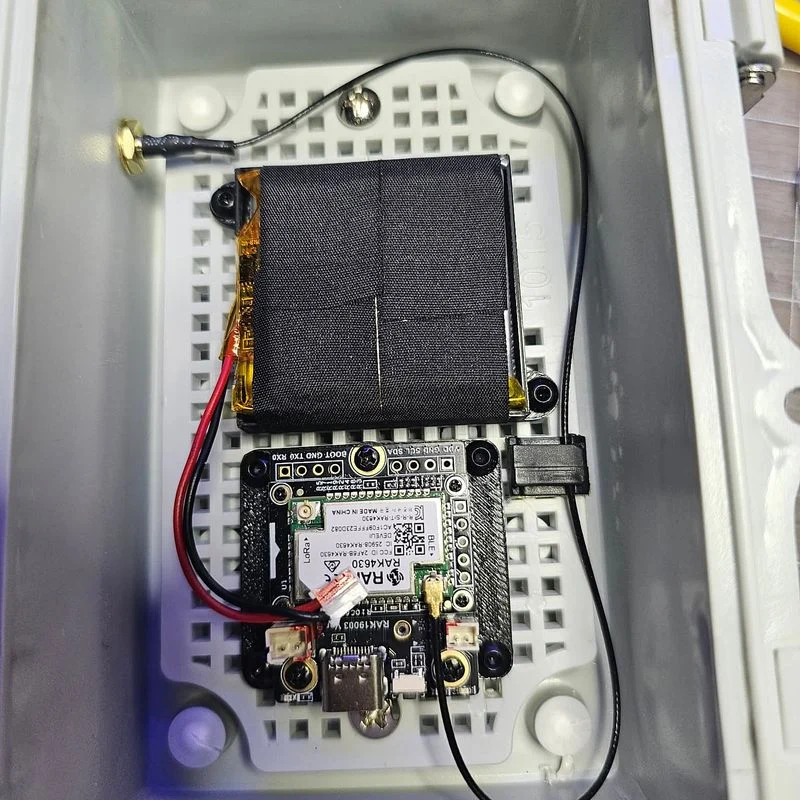

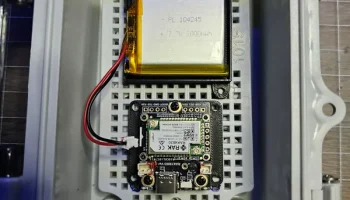

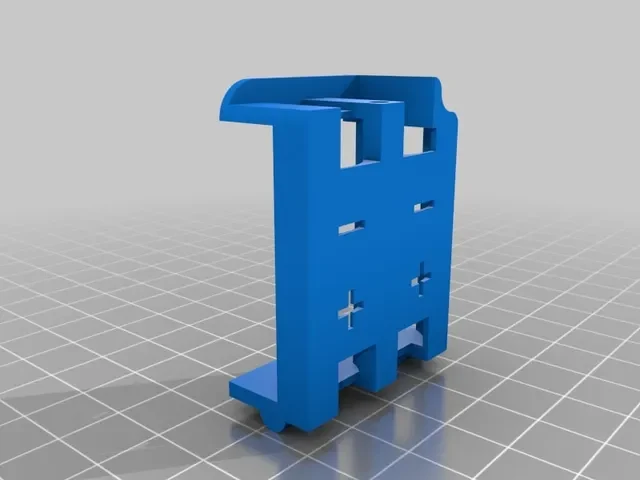

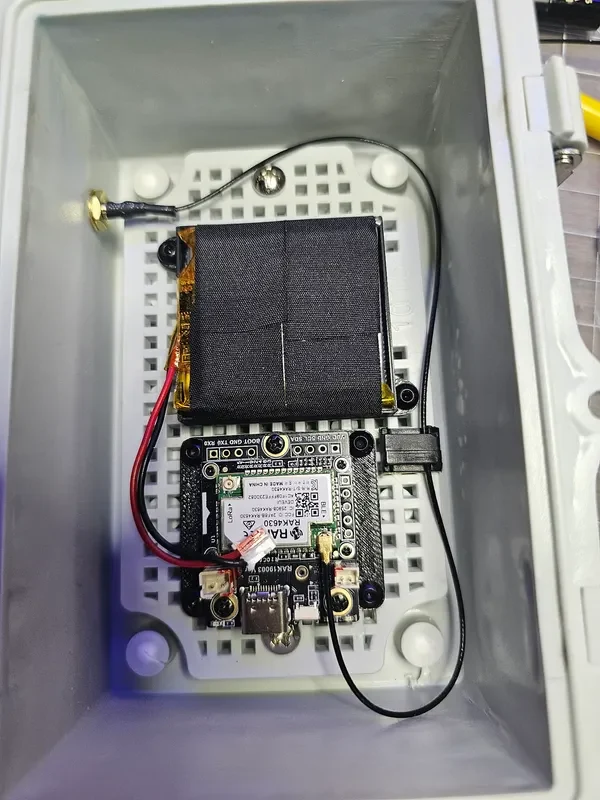

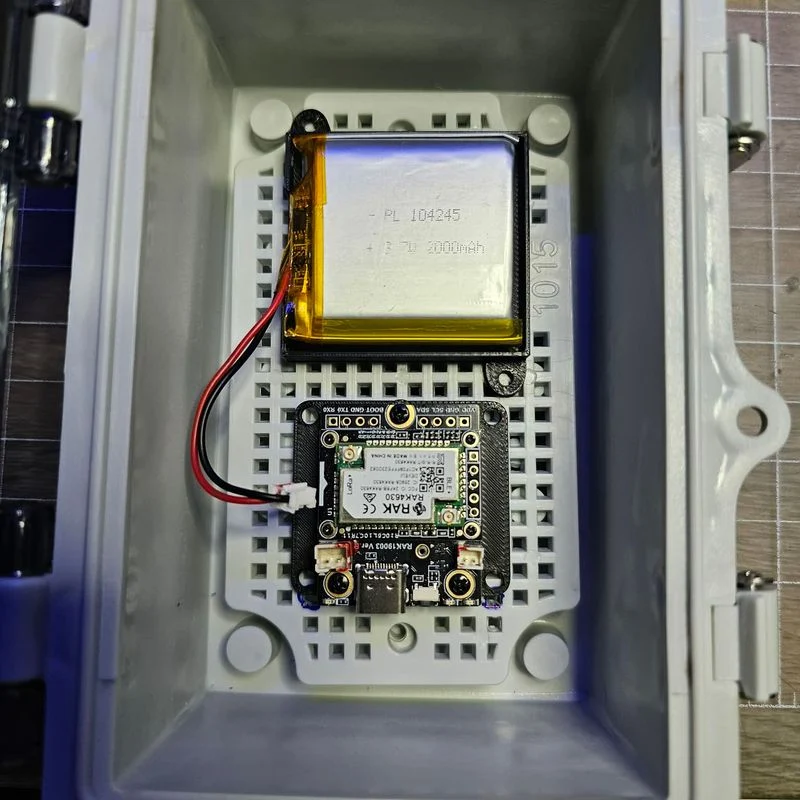

I built a Meshcore Node for my trailer and needed a battery sled, so I designed this. Printed with PETG since it will be outdoors and possibly in a warm environment in the summer. The ears fit 2.5mm or 3mm screws perfectly. The two half-moon-shaped holes fit zipties, but I didn't include enough space for the tie to go underneath the sled, maybe in a future version.
Print Settings:
Filament: PETG
First Layer Height: 0.23mm
Layer Height: 0.2mm
Supports: No
Infill: 5% Gyroid
Printed on a PEI textured plate in my Elegoo Centauri Carbon
Any other questions, shoot me a message! :)
