Desk Cradle for Seeed Wio Tracker L1 E-Ink Case w/ 3000m...

Everyone has a first original 3D model that they will someday be embarrassed by in the future, but you have to start somewhere, right?

This one is mine.

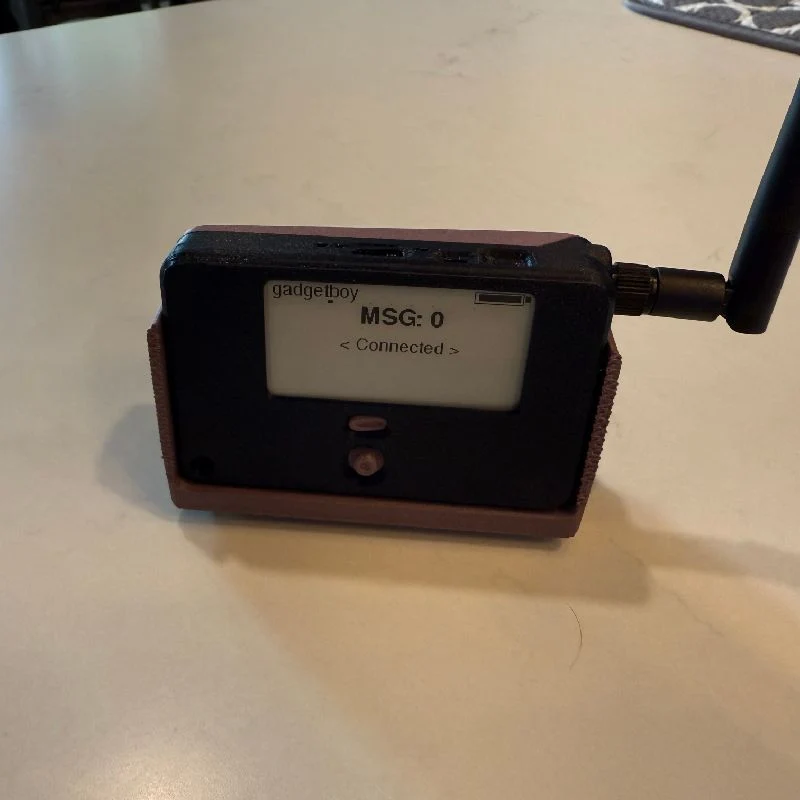

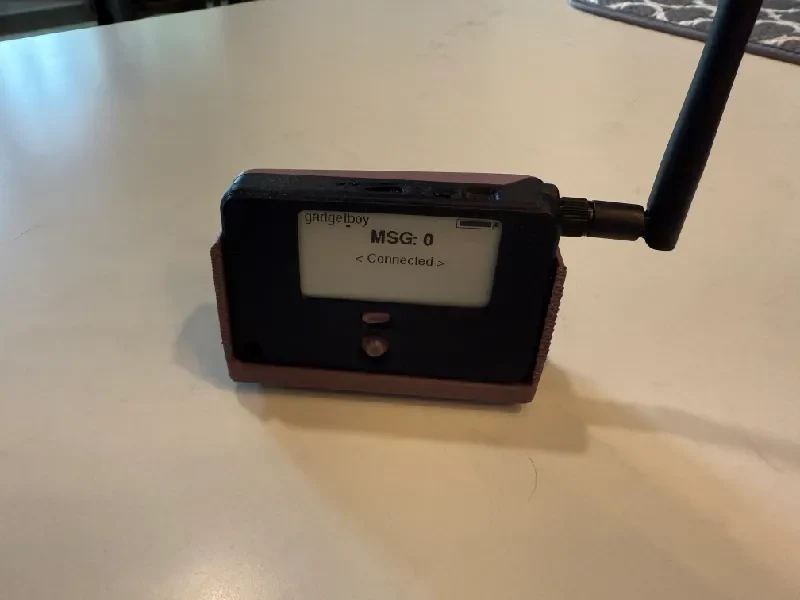

I printed an enclosure from Frey that supports a 3000mAh battery (which is itself a remix of the excellent enclosure by zeropt) for a LilyGo Wio E-Ink Tracker (PETG-CF, Midnight Blue & Dusty Pink).

It kept falling over on my desk when the USB cable was plugged in so I thought it was the perfect opportunity to make a cradle for it.

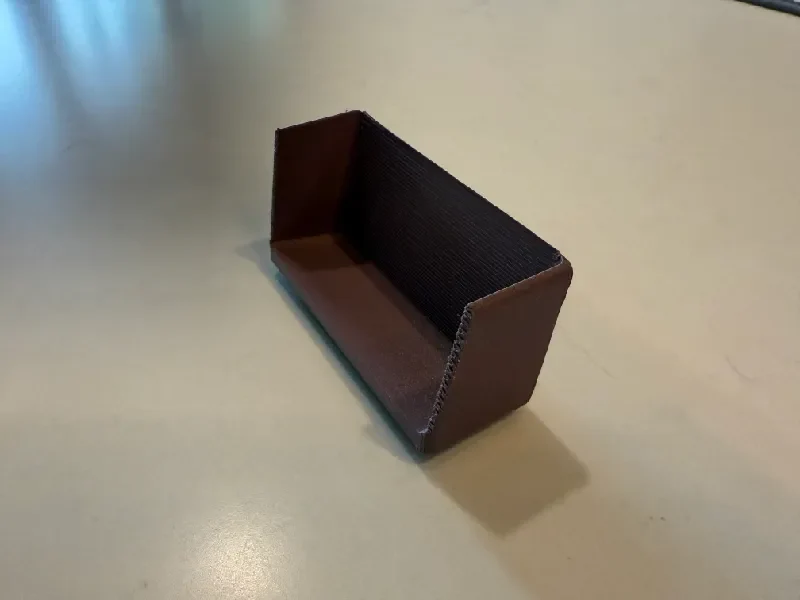

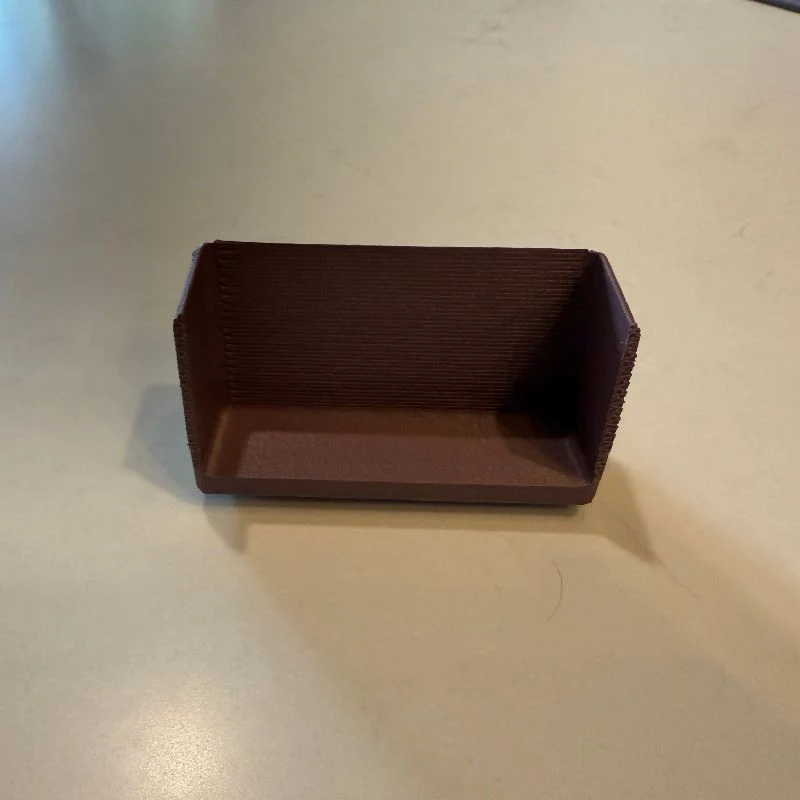

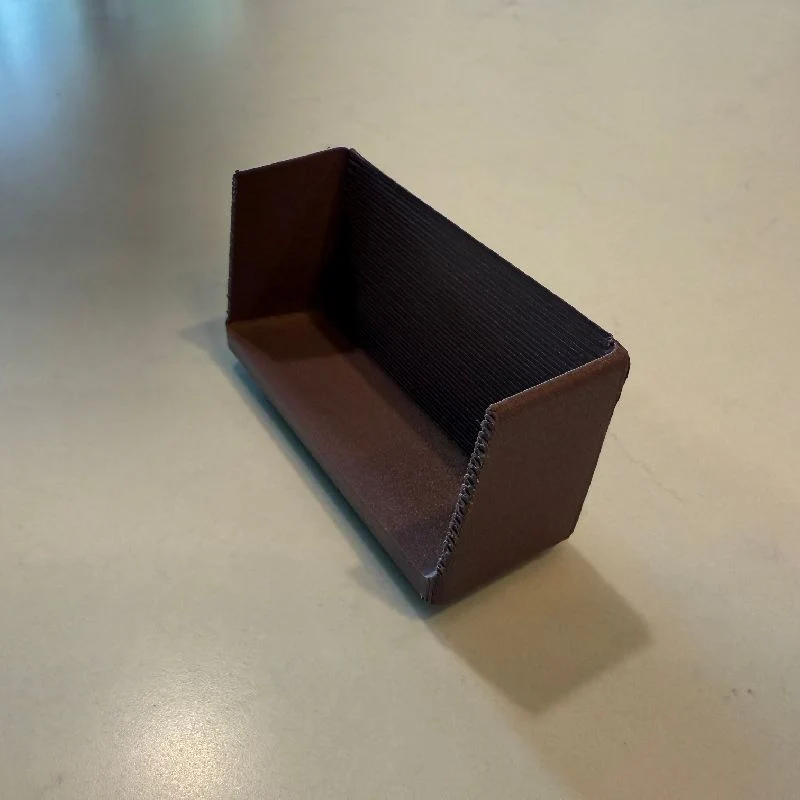

The whole thing is based on subtraction methods using TinkerCAD which (I think) is why the outer edges on the front are rough and appear to show infill.

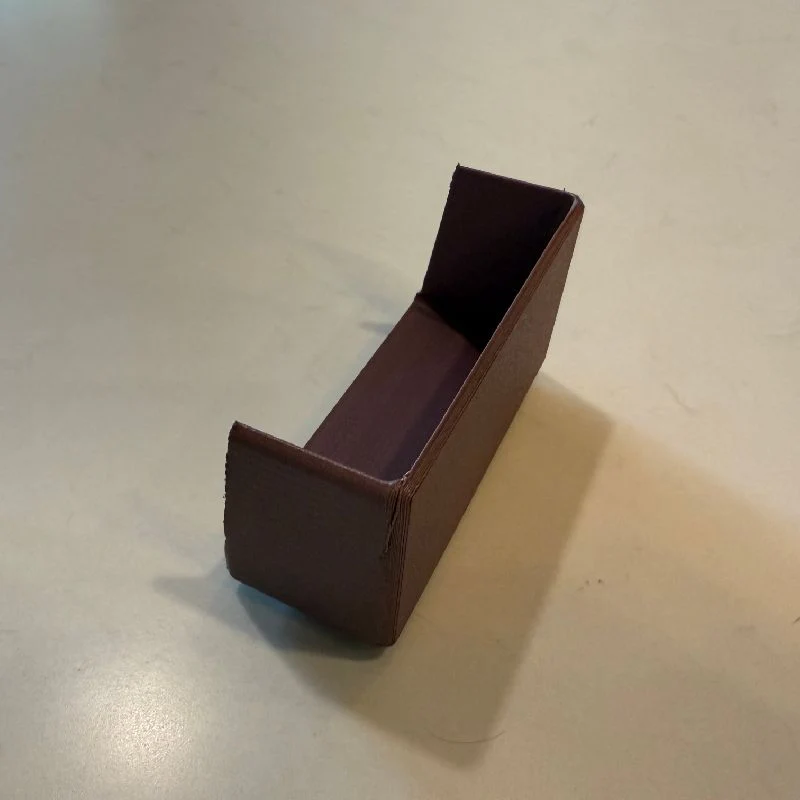

There's a -10 degree incline at the back to better view the display and to keep it from falling forward.

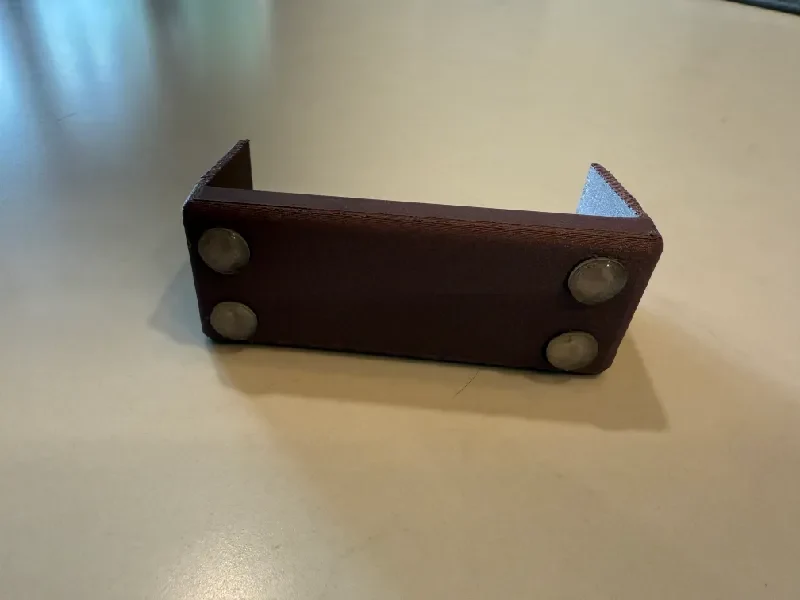

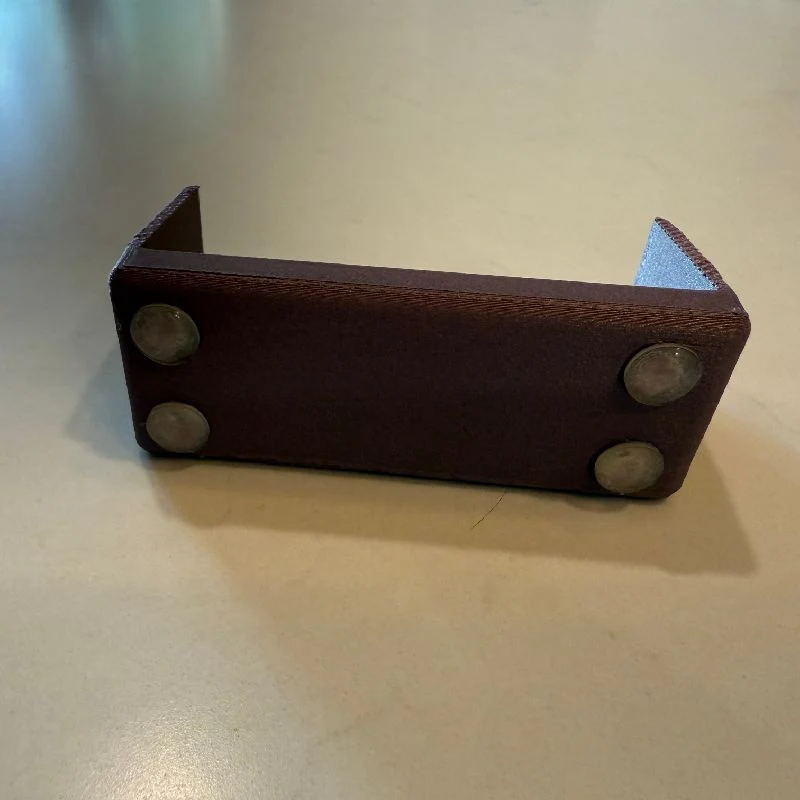

I included a some recesses on the bottom to accommodate four silicone bumpers to keep it from sliding. The recesses probably could have been a little deeper than the 1mm I allowed but they work fine.

I'm just going to keep iterating on this guy to try to improve it and to continue to learn, maybe using OnShape.
