meshtastic & meshcore--Fobe Quill series car shell

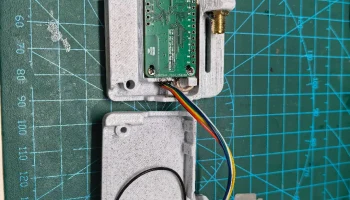

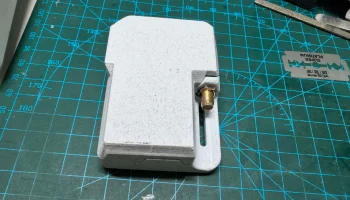

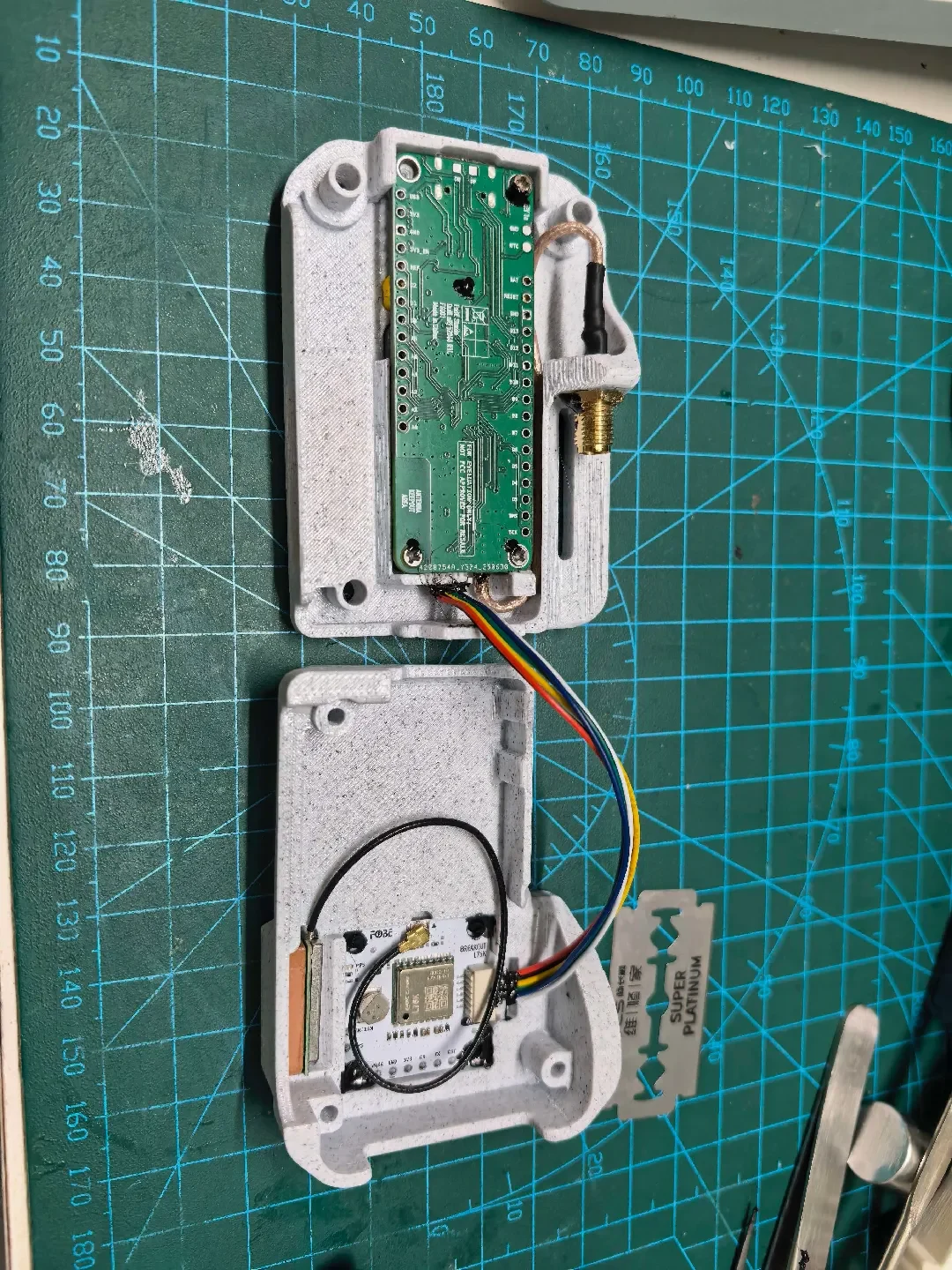

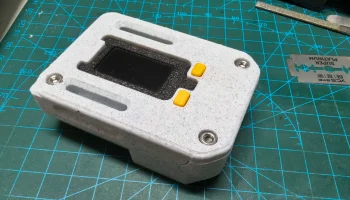

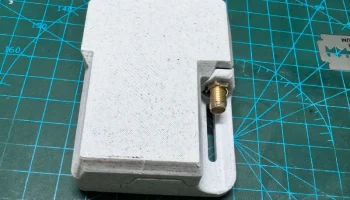

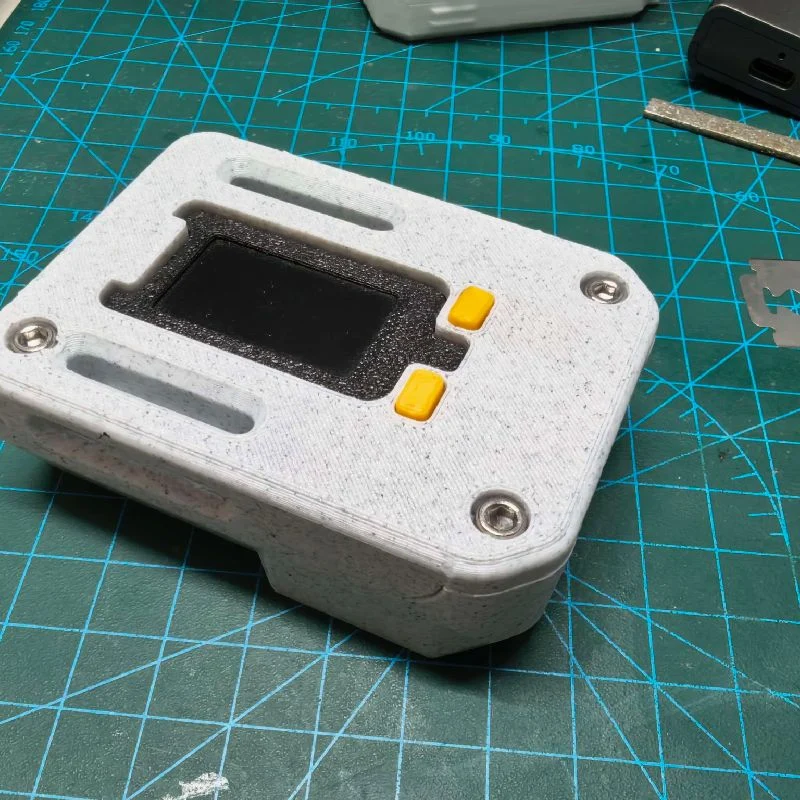

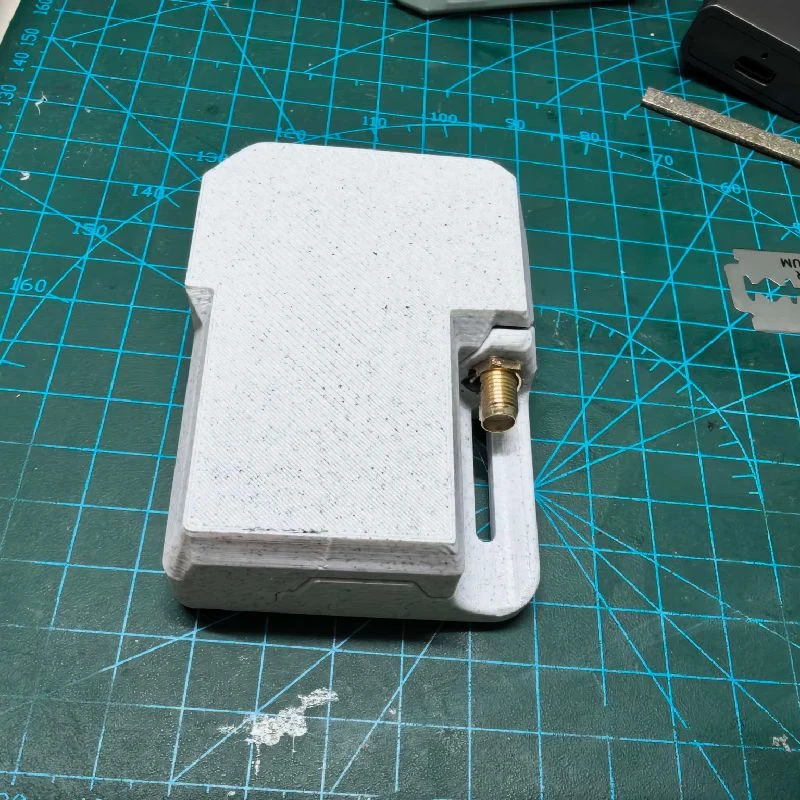

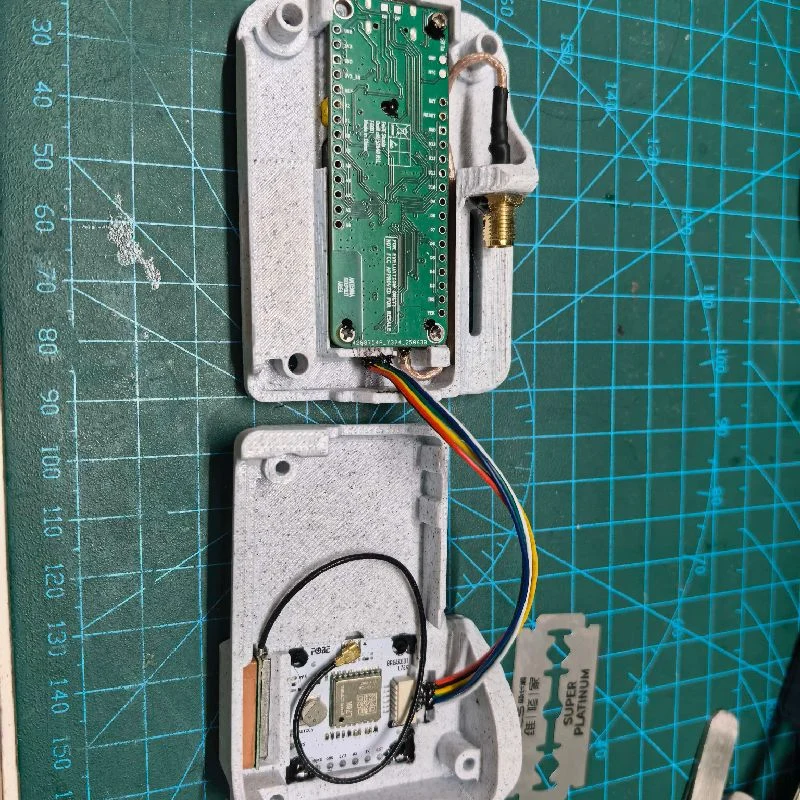

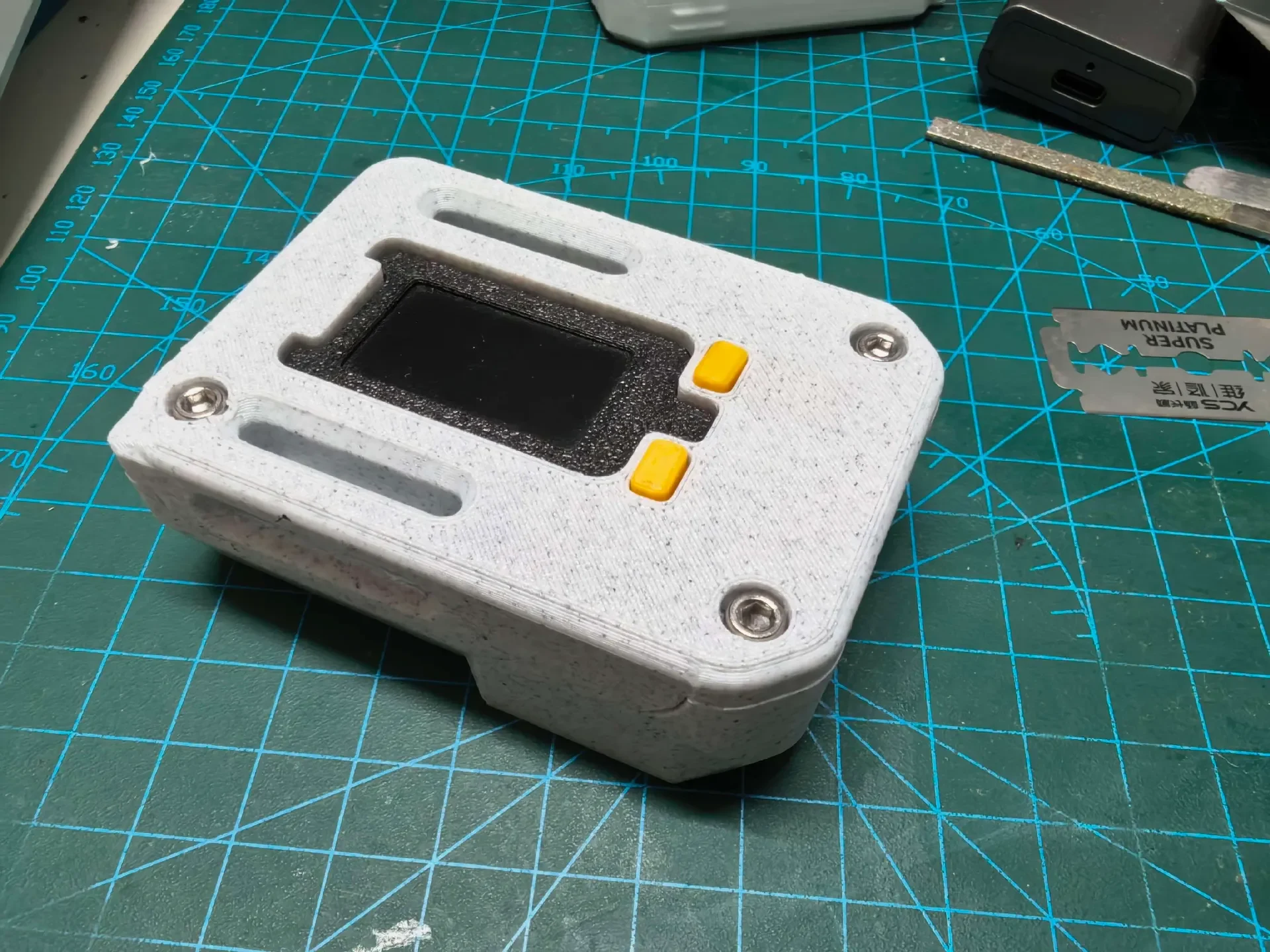

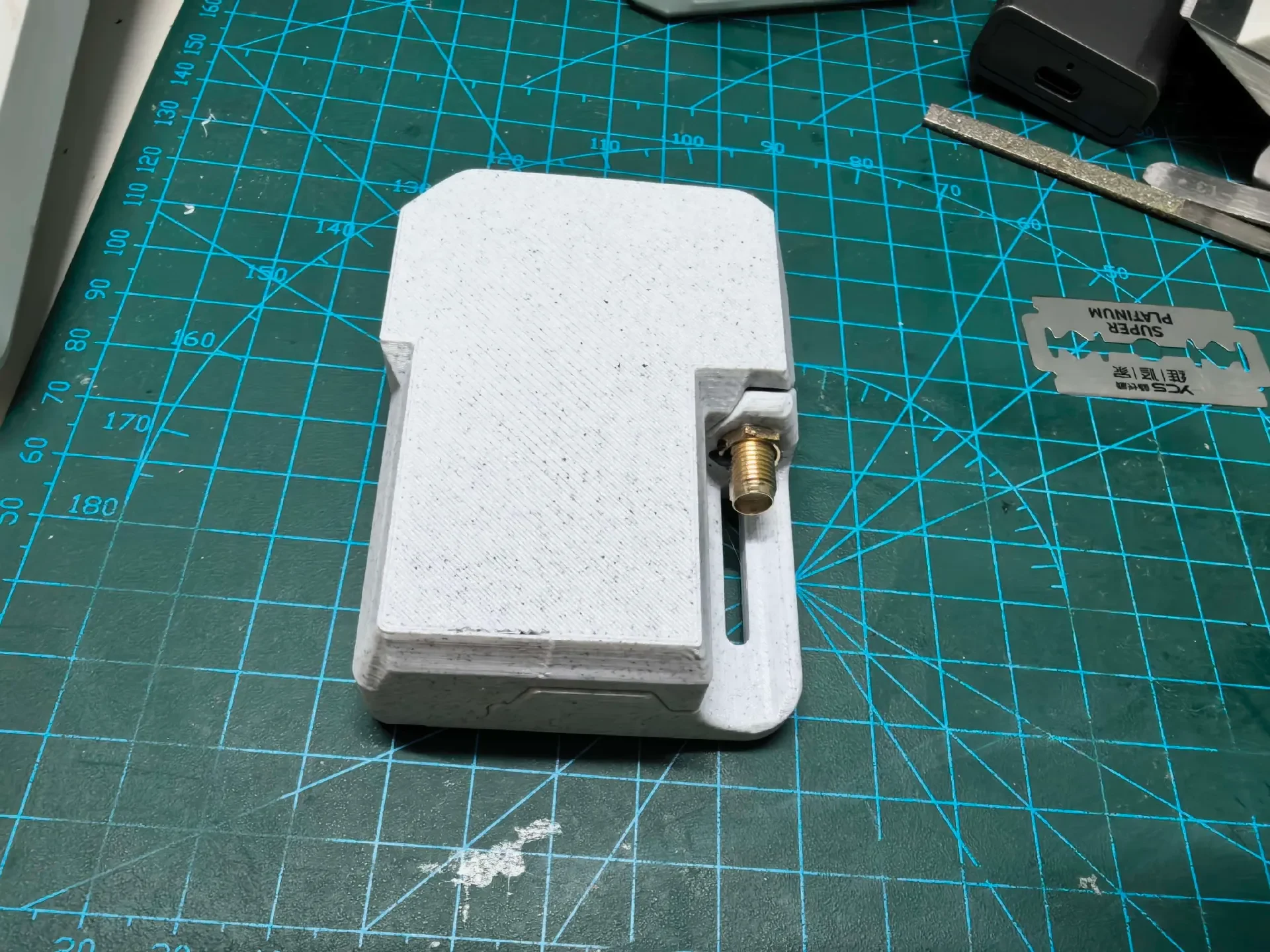

Fobe Quill series car equipment casing (without battery). Install buttons, boards, GPS, SMA tail fibers, and fasten the two halves of the casing together. Secure with M3 screws to obtain a sturdy casing. Installed on the car sun visor through Velcro.

Enclosure Assembly

FoBE Quill nRF52840 Mesh (F1101)

FoBE Breakout L76K

M3*12

GPS：active ceramic antennas 20*6*6.6 IPEX 1

External LoRa Antenna with SMA Male

Remember that the Lora antenna needs to be installed outside the car.

OBD power collector

For the dimensions of FoBE Quill series development board, please refer to the document:

https://docs.fobestudio.com/product/quill

！！！The installation tutorial will be updated later！！！
