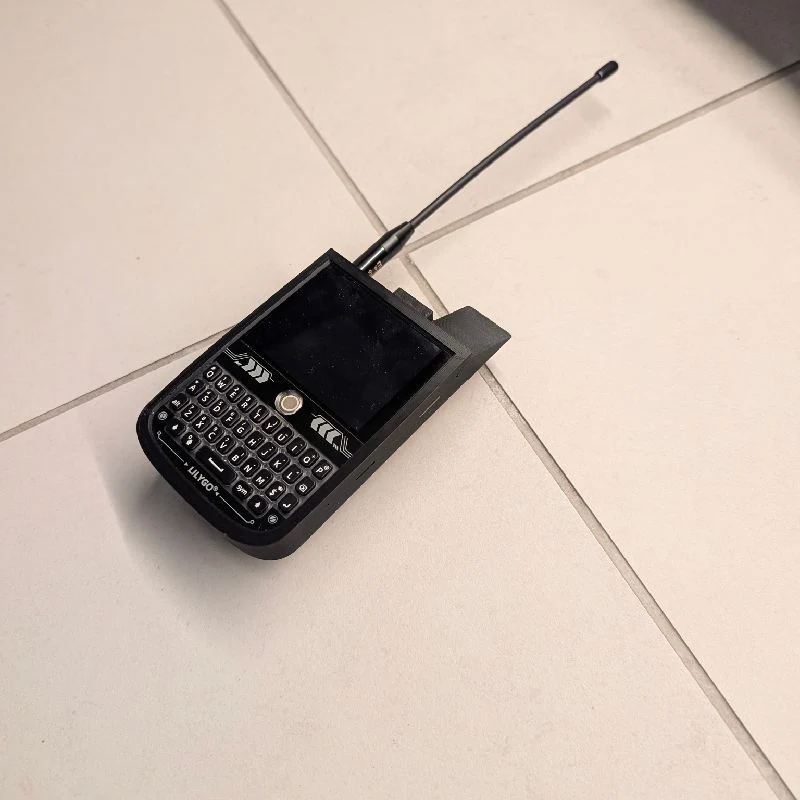

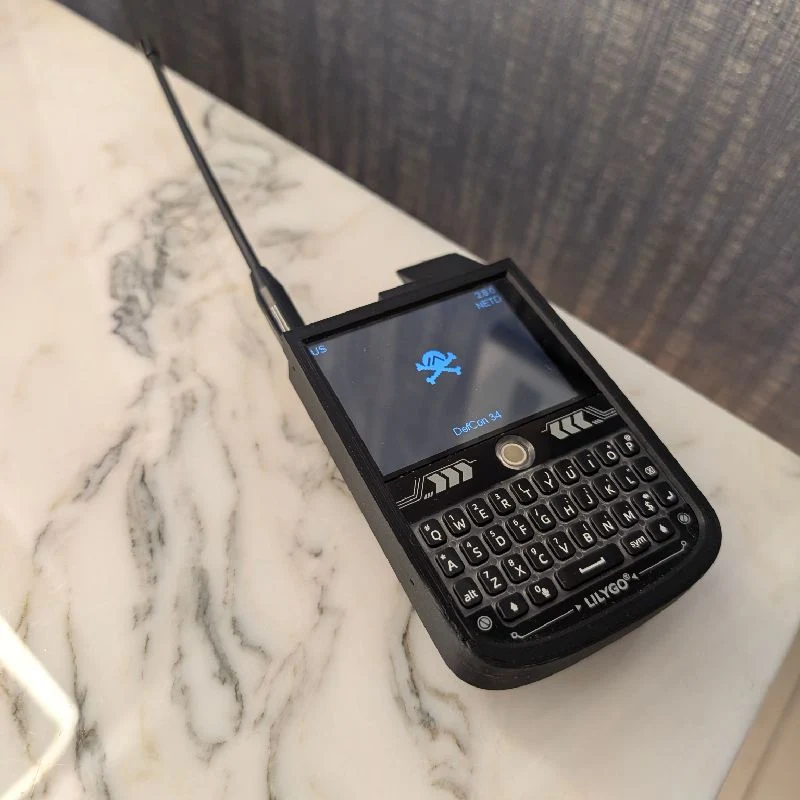

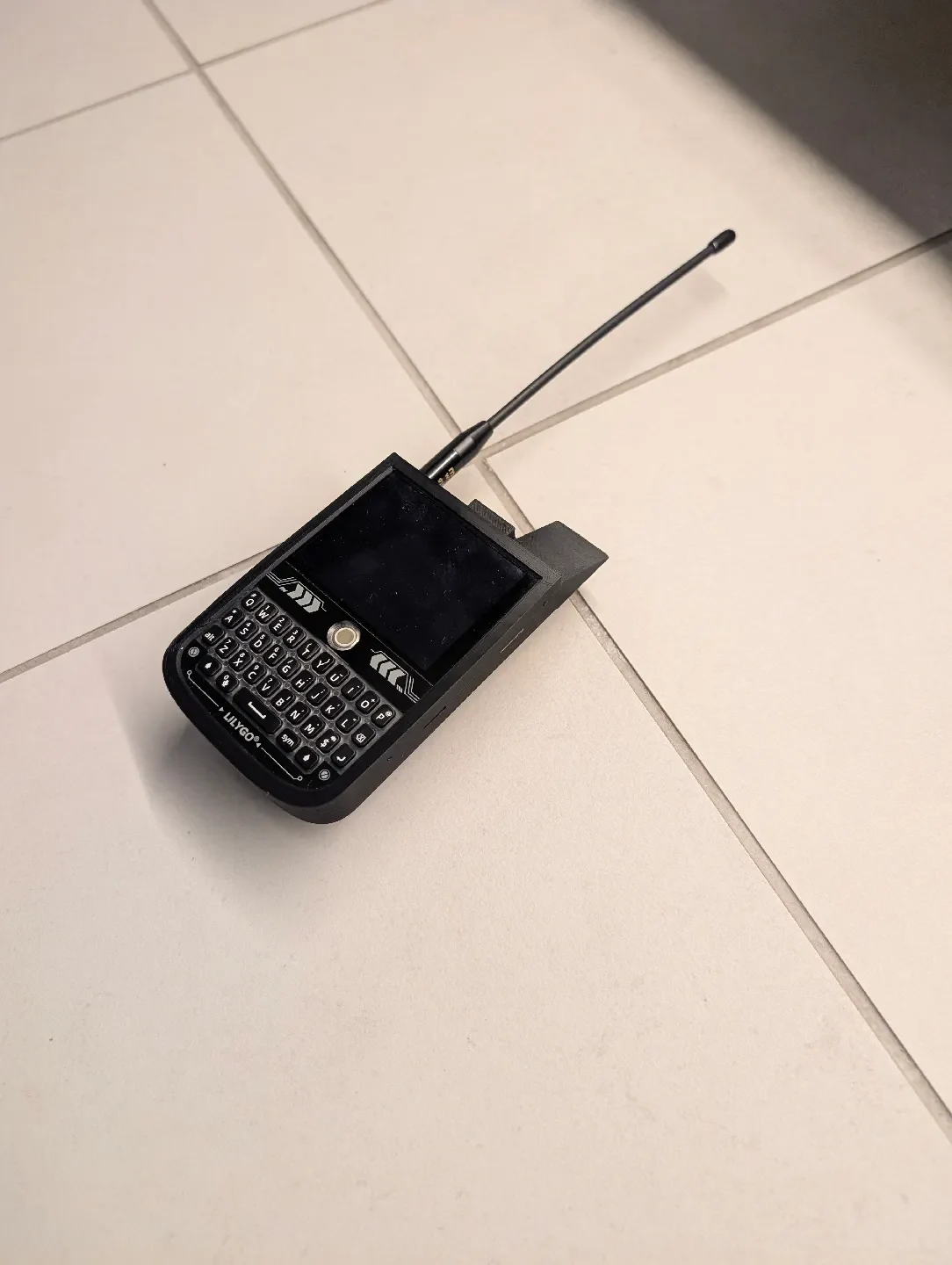

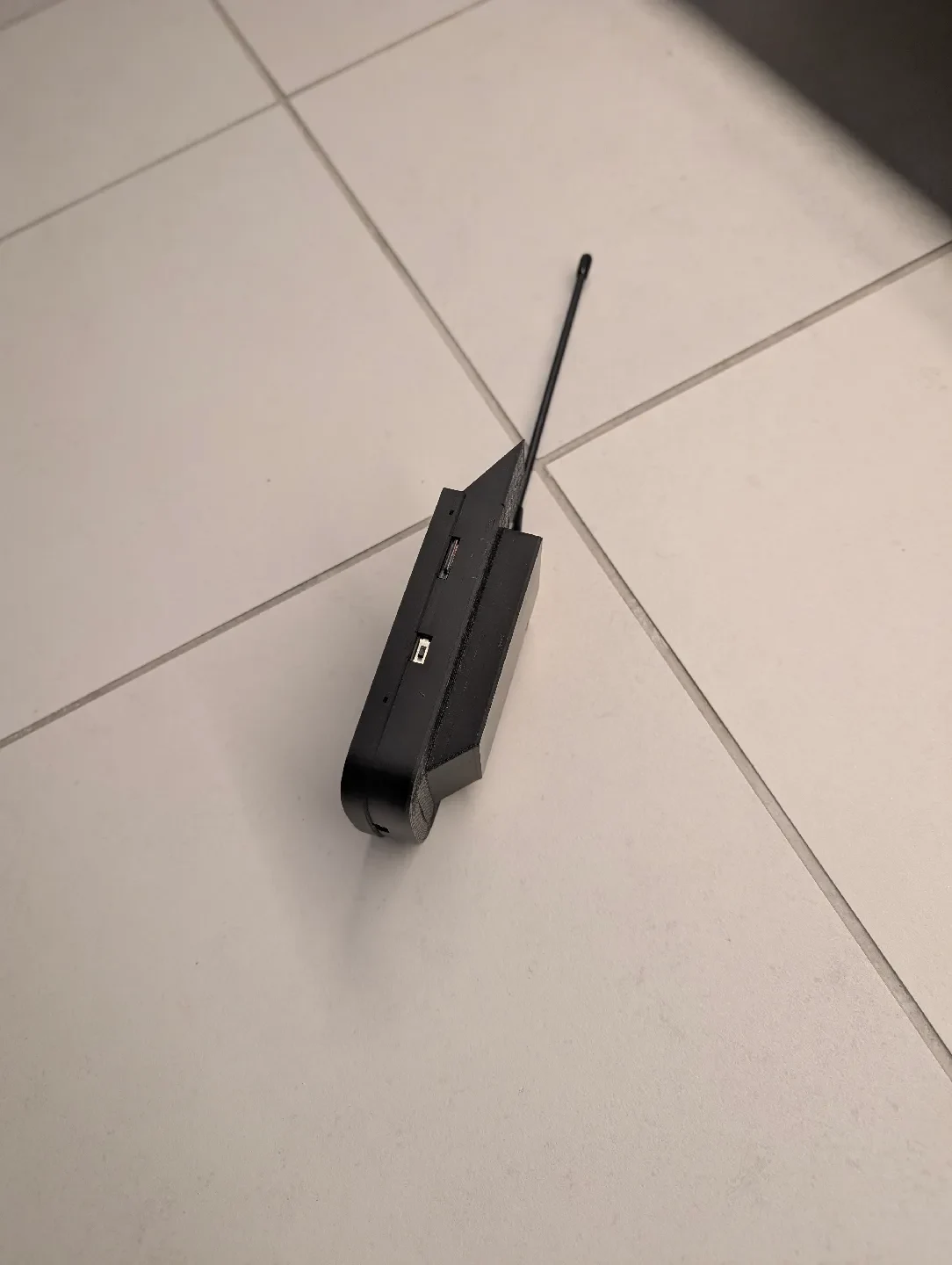

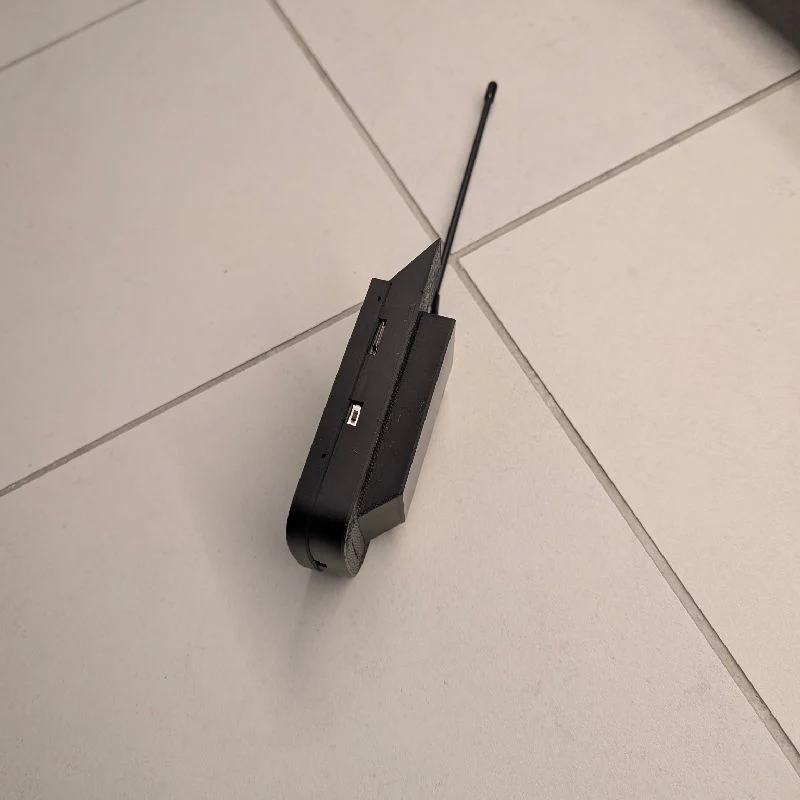

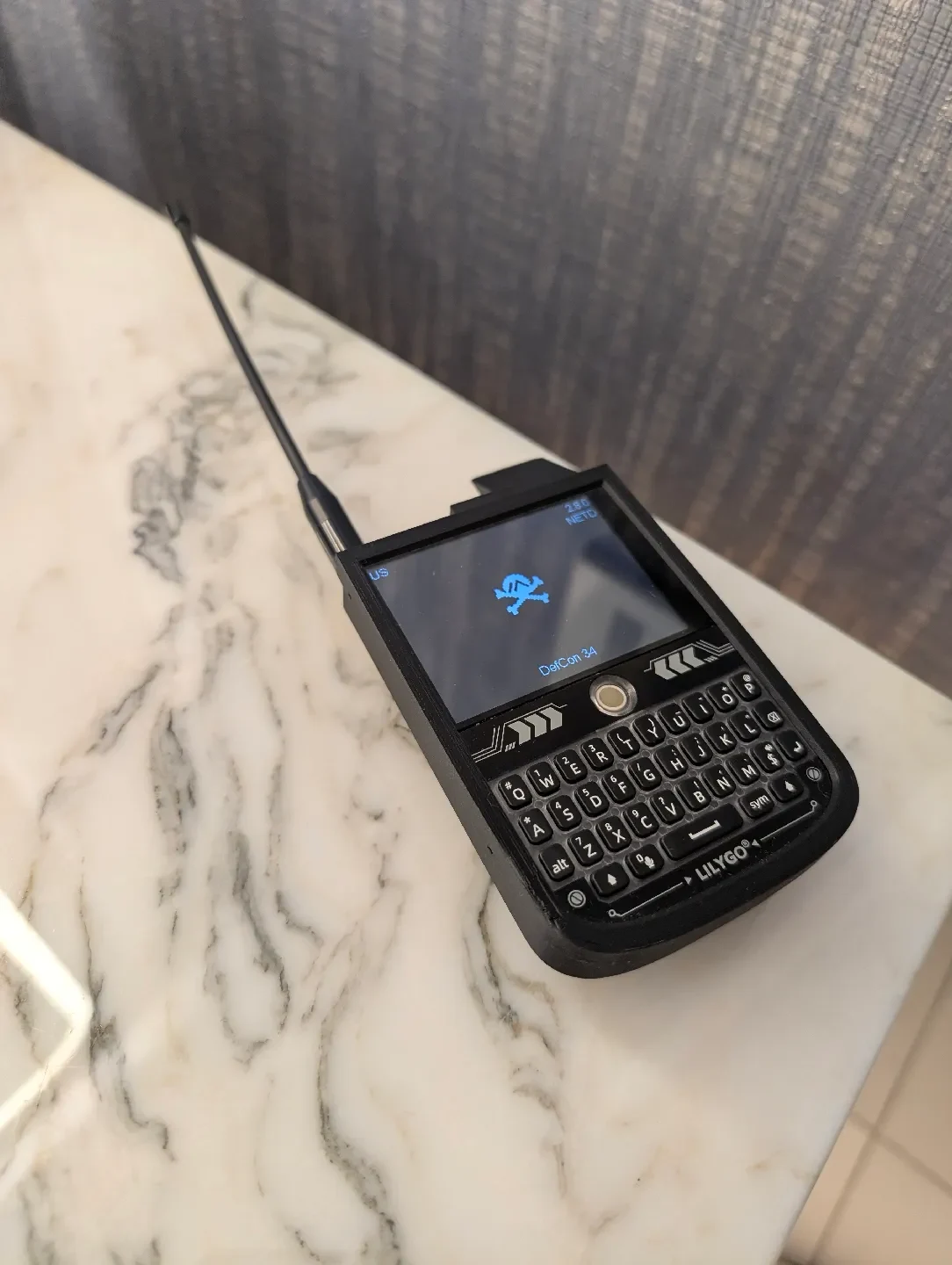

T-Deck case with large battery

Meshtastic

Источник:

www.printables.com

Items used inside:

T-Deck: https://store.rokland.com/products/lilygo-t-deck-portable-microcontroller-programmer-lora-915-mhz-h642?variant=41000826372179

Battery: https://store.rokland.com/collections/batteries/products/3-7v-1100mah-lithium-rechargeable-battery-1s-1c-lipo-battery-with-protection-board-with-micro-jst-1-25-plug?variant=43264927694931

GPS: https://store.rokland.com/products/gps-gnss-module-neo-6m-for-lilygo-t-deck-with-grove-connector-no-solder

Internal paper antenna: I couldn't find it anywhere online, but it came with the T-Deck when I bought it.

IPX-SMA cable: https://www.amazon.com/dp/B0B9RYL56H

SMA antenna of your choice. I use a basic whip antenna.

I printed the top with the front facing the bed, no supports needed. Print the bottom with the back facing the bed. Supports will be needed. I did PLA with PETG interface material to make removal easier.
