WisMesh 1W Repeater Round => large N-Type antennas

Checkout my enclosure and accessory collection for RAKwireless WisBlock, WisMesh Meshtastic and MeshCore devices ==> RAKwireless Origins.
All my models come with STEP files and Fusion 360 project files for customization.

-------------------------------------------------------------------------------------------------------------------------------

Every now and then I am getting a request for an enclosure that can be used with antennas that have an N-Type connector.

These antennas are usually quite large and heavy (at least the N-Type antennas we have at RAKwireless), and it is not recommended to mount them directly on an enclosure.

So the idea was to mount
the antenna with its included mounting accessory and hang the enclosure

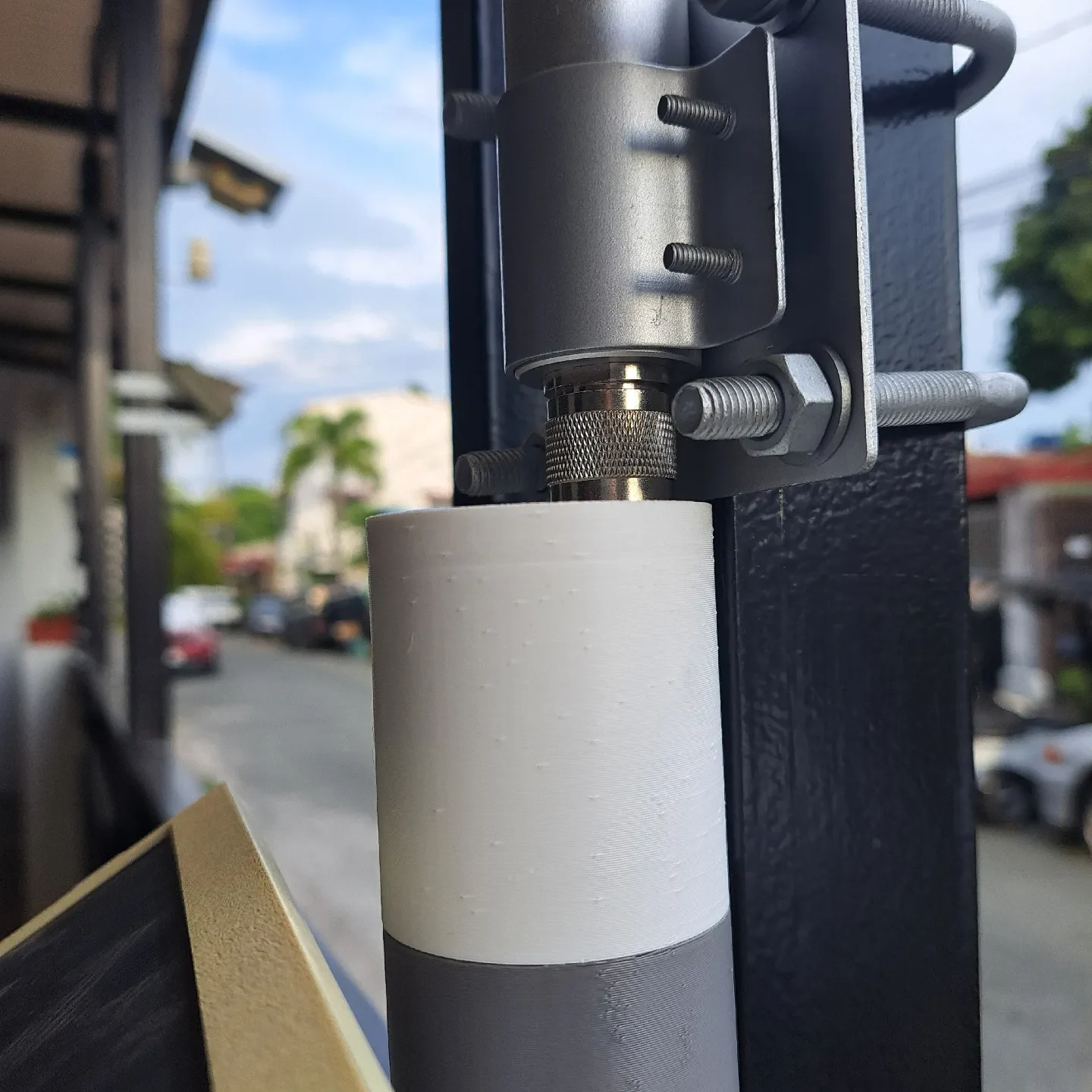

on the N-Type connector instead:

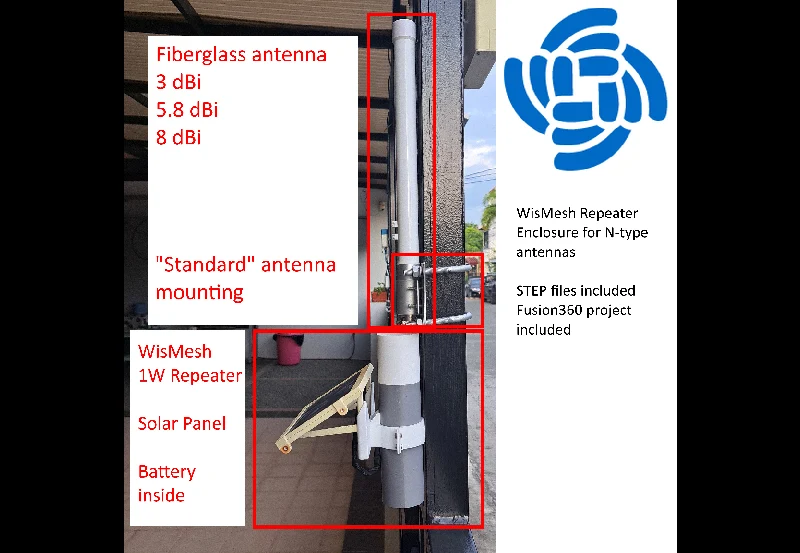

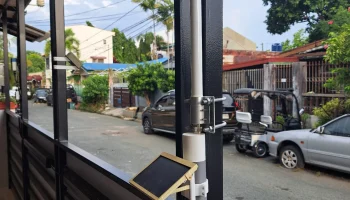

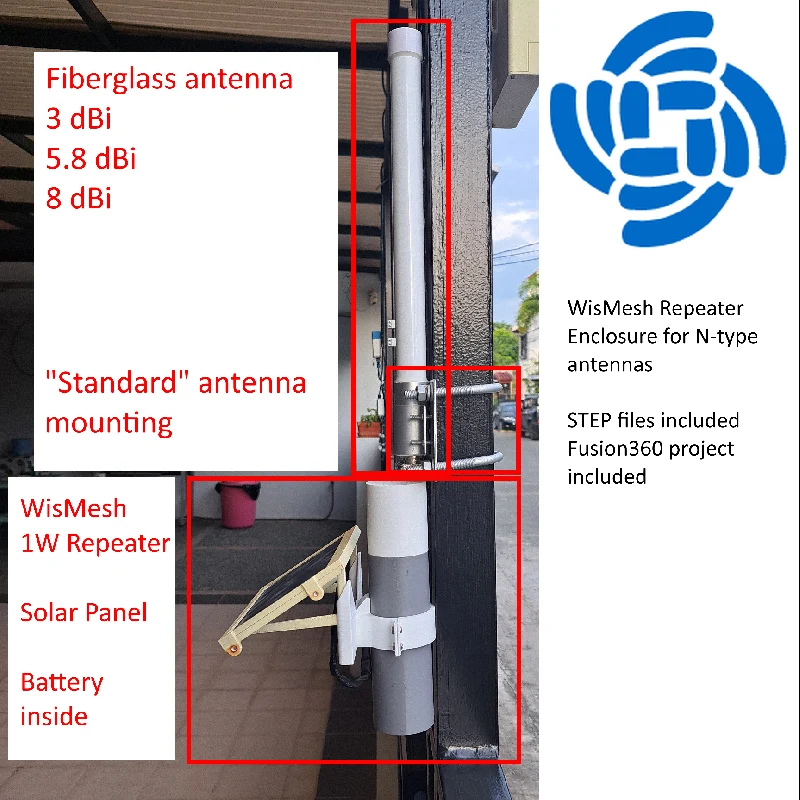

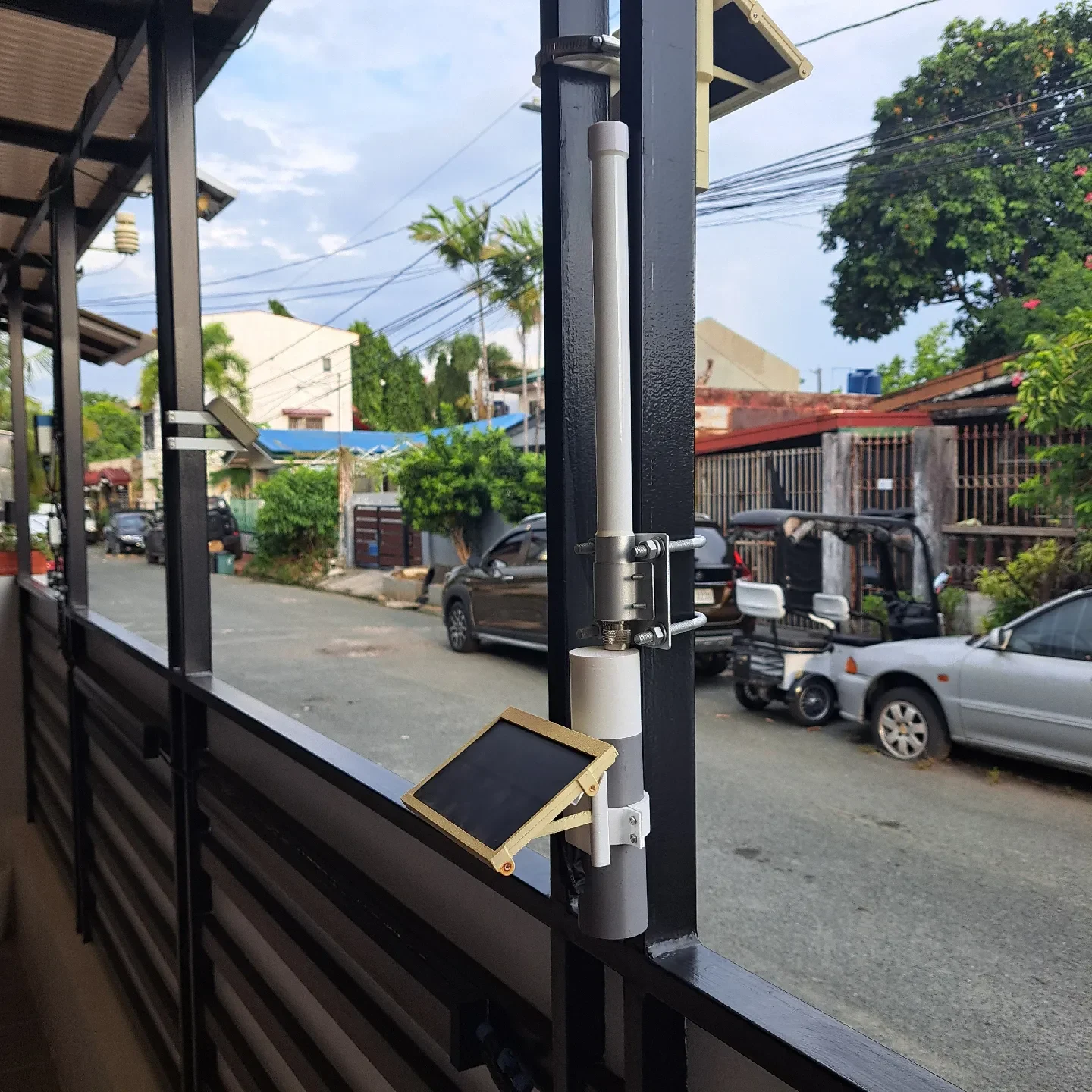

So here, the antenna is mounted to a pole and the enclosure is connected to the antenna through the N-Type connector only and not mounted on the pole itself:

The enclosure itself is divided into three parts that are screwed together, here is a rough mounting guide:

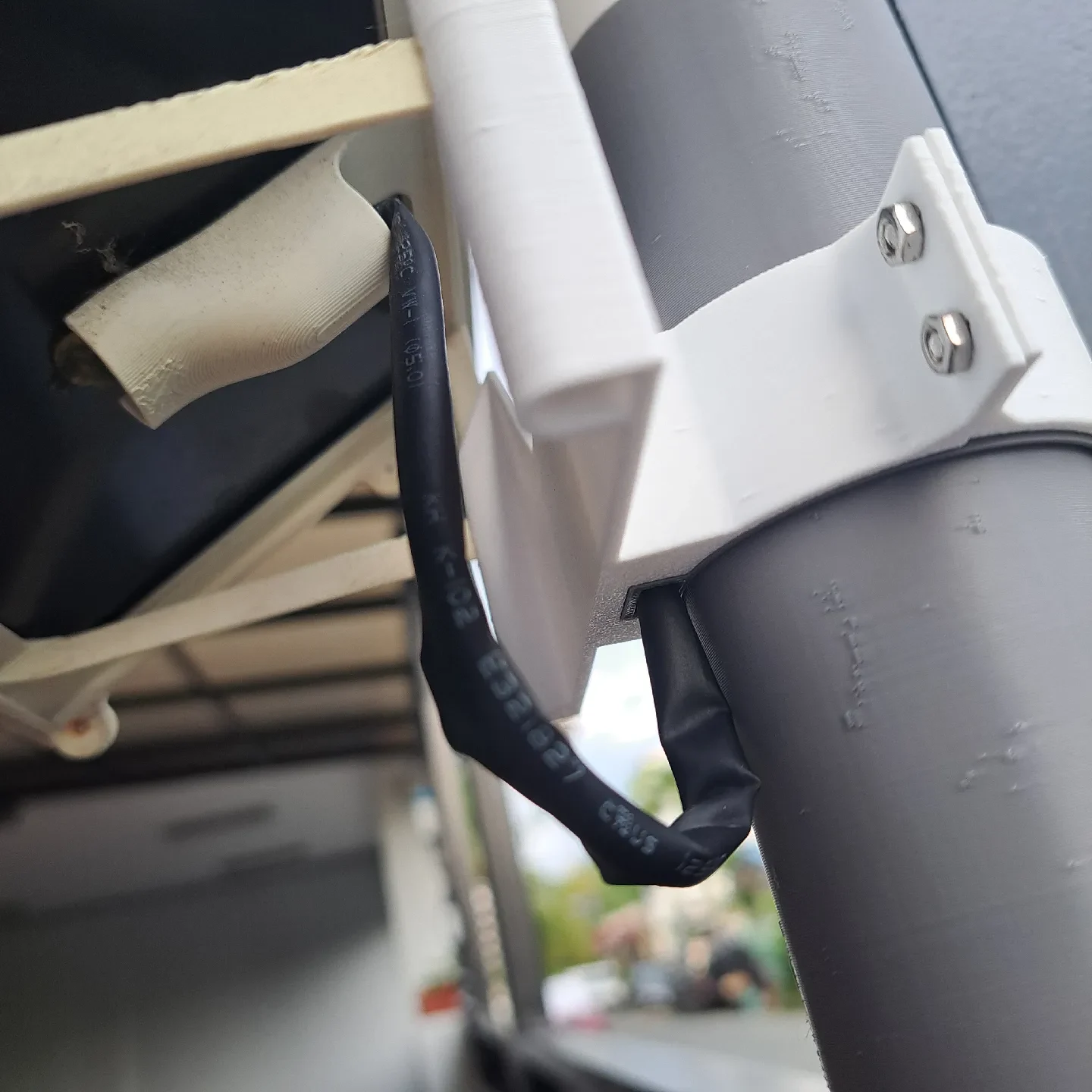

An optional solar panel holder is in the print files as well, matching with the solar panel clips that I published, e.g. the Dual Solar Panel for WisBlock Outdoor Enclosure or the solar panel mounts from the RAKwireless Outdoor Enclosure for WisBlock.

-------------------------------------------------------------------------------------------------------------------------------

Need a customization of one of my designs or have an idea for an enclosure, but cannot find something matching? Contact me.
