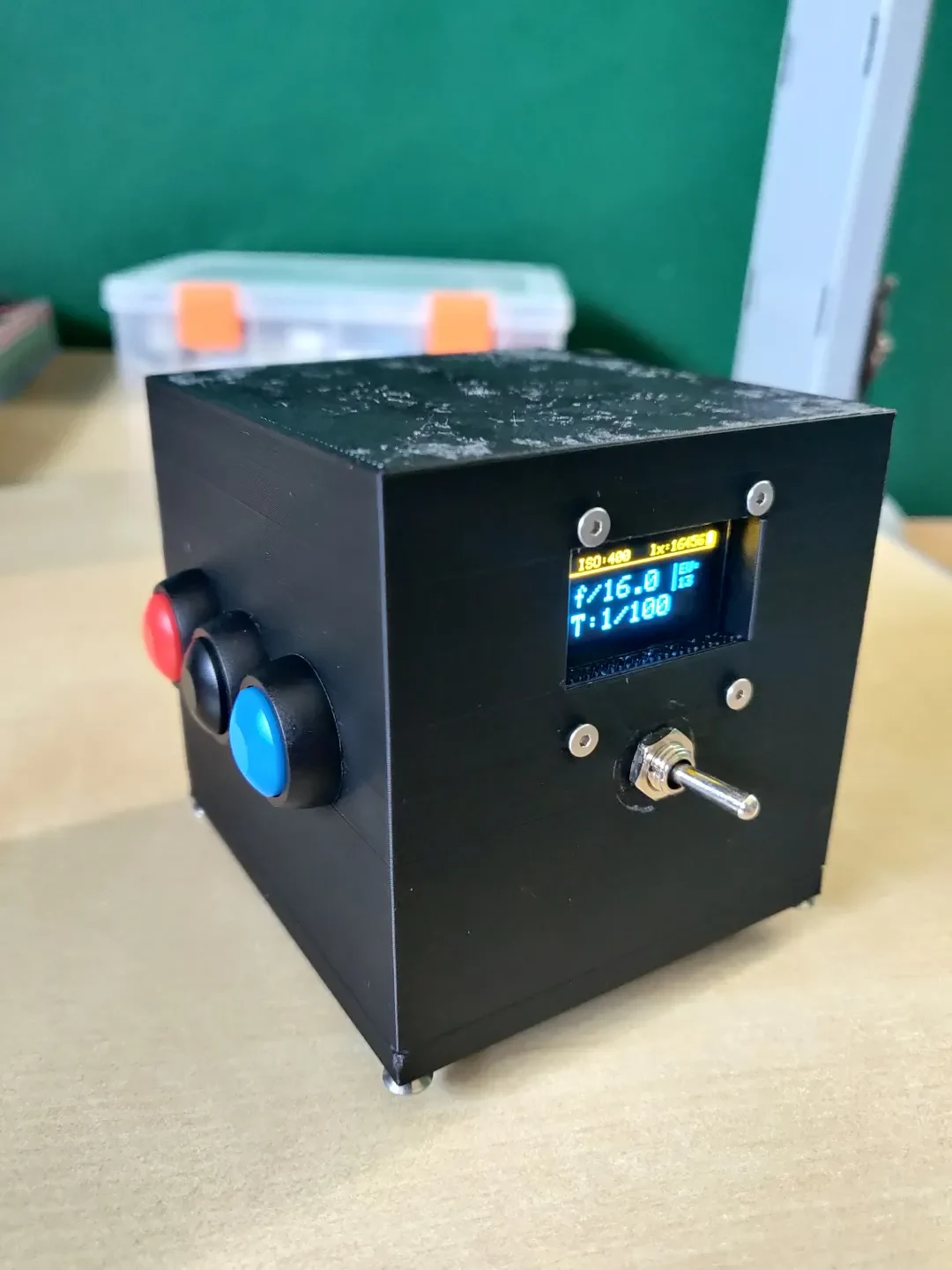

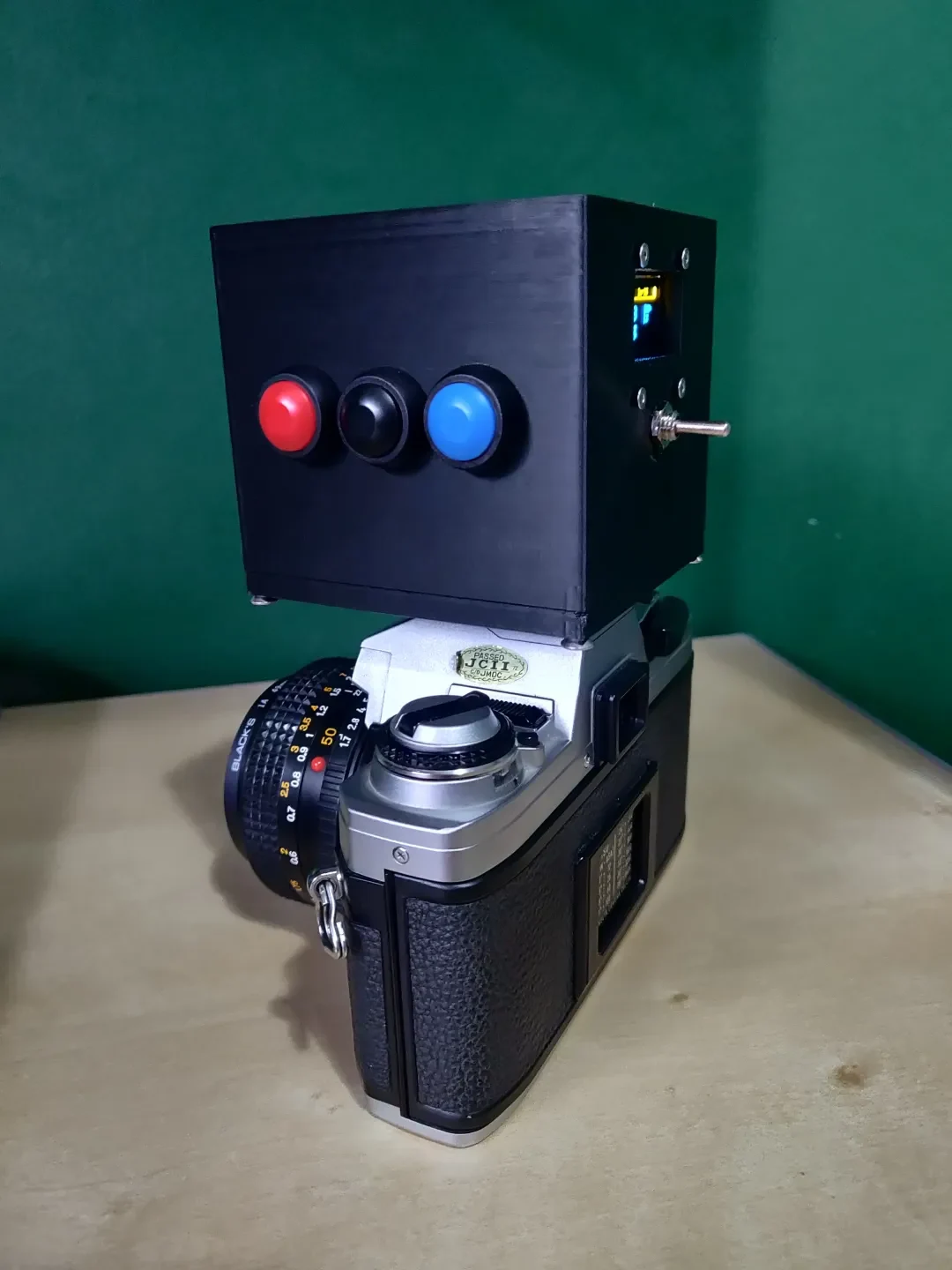

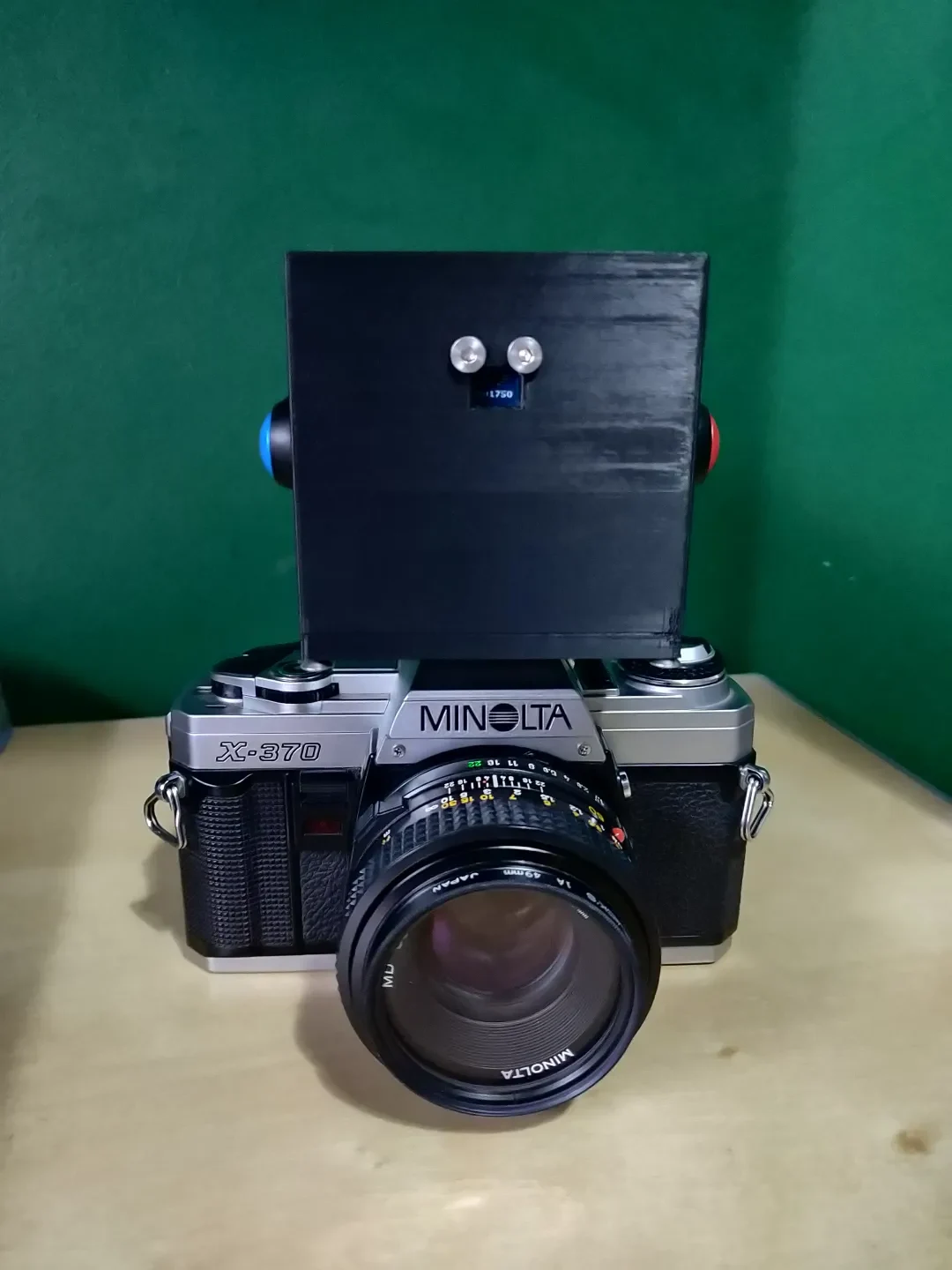

This model can be used as a lightmeter. There are two bottom plates available, depending on where you want the meter to sit on your camera. The front one is used for my Minolta X-370, while the centered one is for my Pentax SFXn. This should be able to fit onto any camera that uses a standard shoe mount. It has space to accommodate a 4 AA battery pack.

Parts used:

1 x Arduino Nano

1 x BH1750 Light Sensor

1 x SSD1306 I2C OLED Display

6 x 12 MM Buttons

1 x Toggle Switch

6 x M3 x 12mm Screws

2 x M3 Nut

4 x M2 x 12mm Screws

4 x M2 Nut

Uses shoe mount found at on bottom plate

Original software

My fork of software for I2C OLEDS, with Blue and White OLED compatibility
