Meshtasitc монтаж солнечной панели

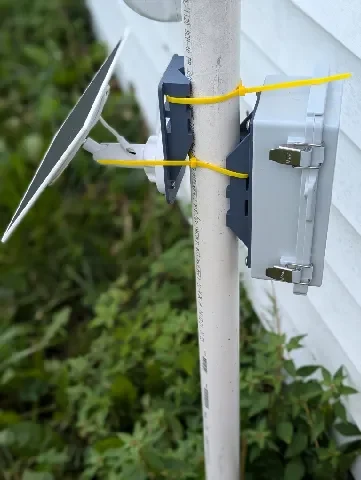

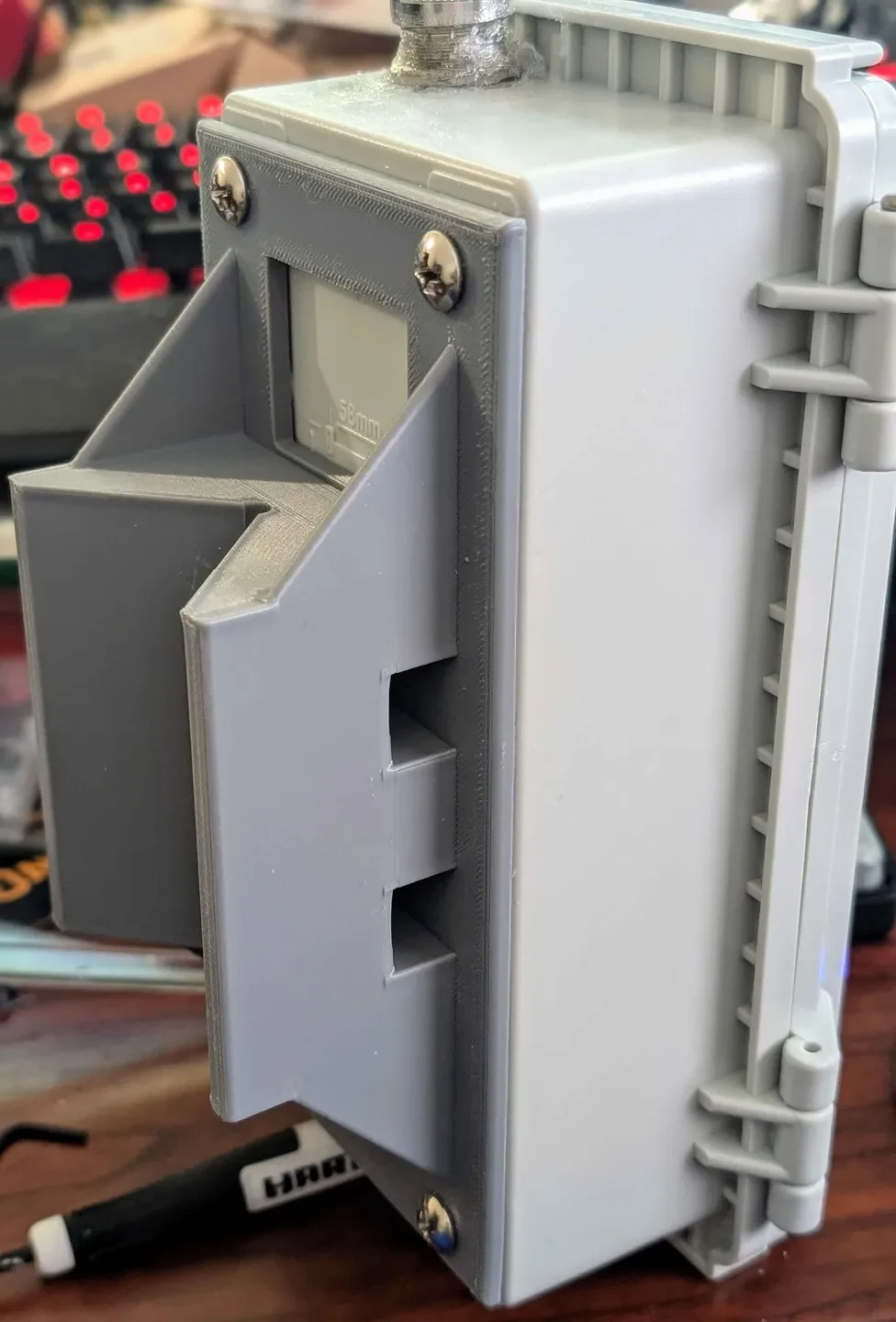

Easy method to mount an outdoor project box commonly used for Meshtastic solar nodes to a mast. Model fits boxes with mount holes spaced 58mm x 158mm such as the AIRTAK 200×100×70mm.

https://www.amazon.com/dp/B0B2RH6Y9G?ref=ppx_yo2ov_dt_b_product_details&th=1

Mount should be printed in a heat and UV resistant filament such as ABS or ASA. I didn't require supports for a good outcome however there are cutouts through the bottom of the model to allow supports to be easily removed if you require them. Also suggest using strength profiles with 5-6 walls and at least 25% infill.

REV2

Extended and widened braces, increased base thickness and added cutouts on the top of the vblock to accommodate smaller diameter masts and to guide clamps without putting stress directly on the edge of the adapter.

REV3

Additional strength improvements. Fillets added in select areas to improve adhesion to base section.
