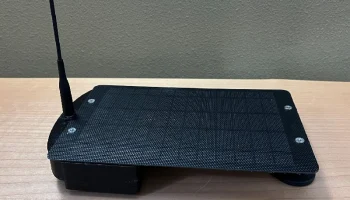

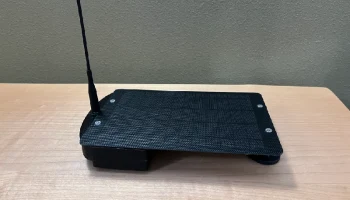

Автомобильный корпус для Meshtastic and Meshcore

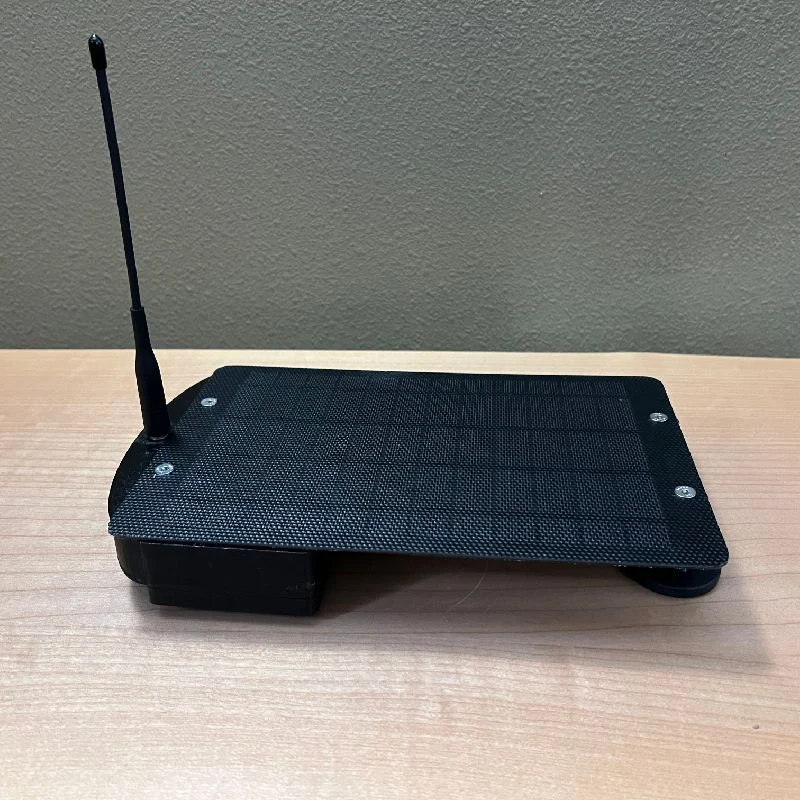

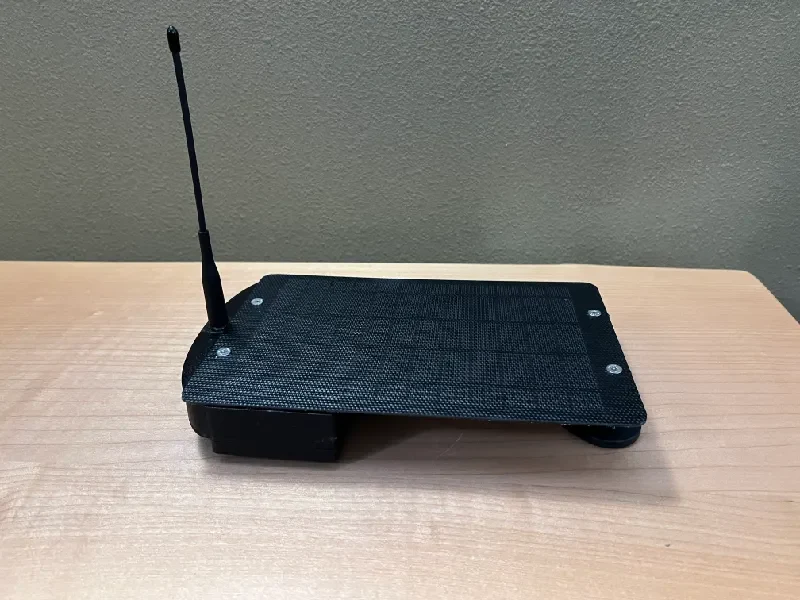

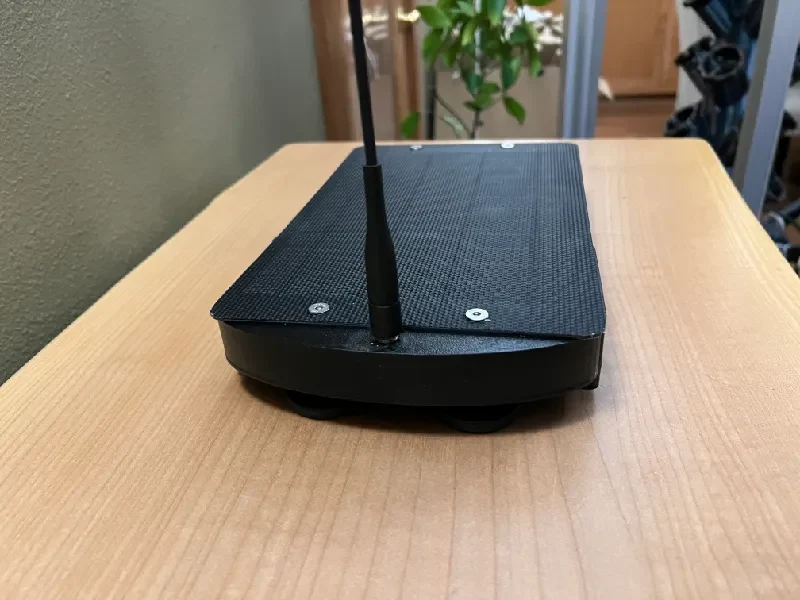

My first attempt at making a car node for Meshtastic and Meshcore that helps keep the radio from overheating, and also has room to expand for new radios.

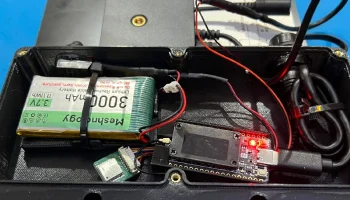

Heltec V4 with Solar and Battery Cables (Any Radio will Work) https://a.co/d/d0vpOnw

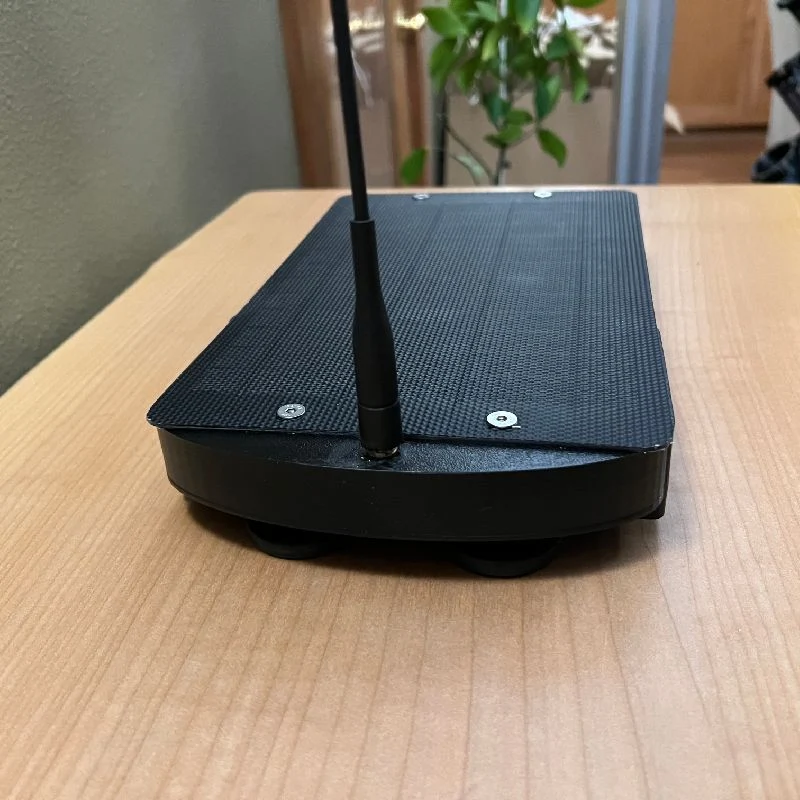

915 MHz Antenna (When mounting, I did not add the lockwasher because the plastic is thick at this location to allow for a full connection) https://a.co/d/92rdFty
Solar Panel https://a.co/d/6FUWaz5
Heltec v4 Holder 3d Printed https://www.printables.com/model/1441867-meshtasticmeshcore-heltec-v4-holder Use any radio of your choice.

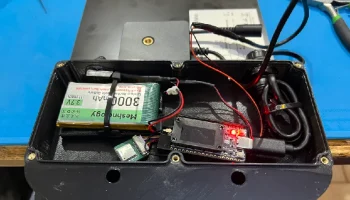

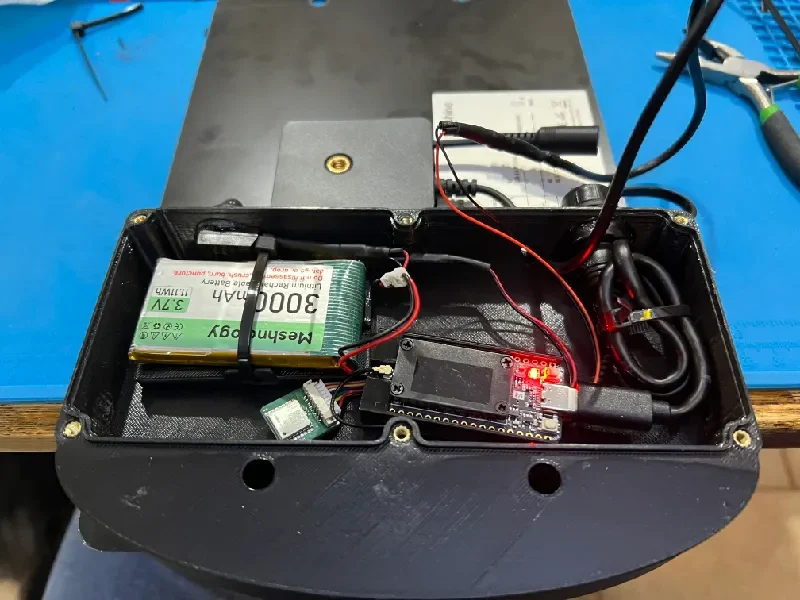

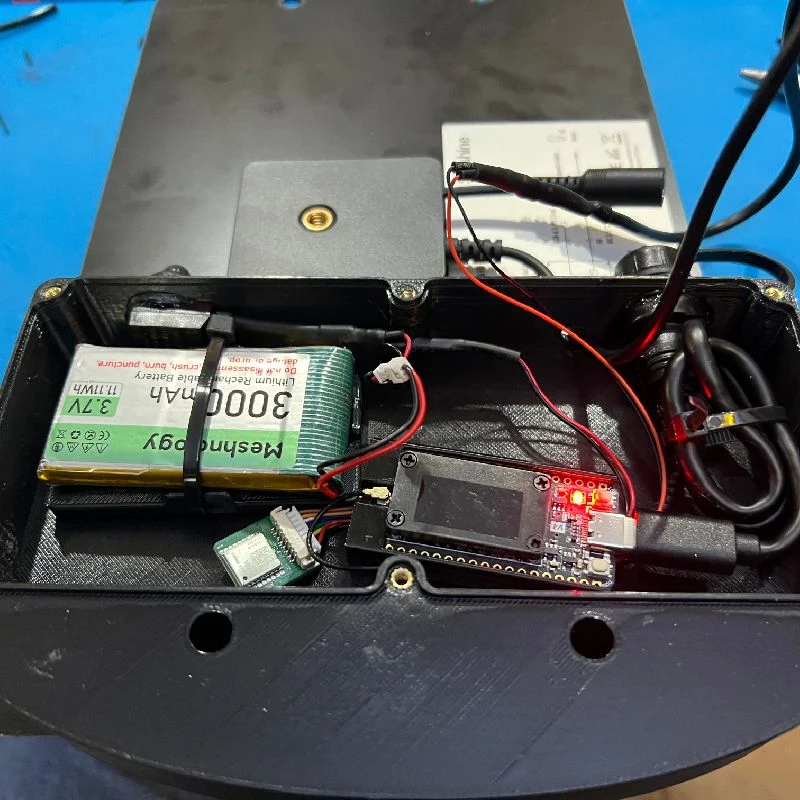

Battery Sled for 3000 mah battery https://www.printables.com/model/1581557-meshnology-3000mah-battery
Double-sided Tape

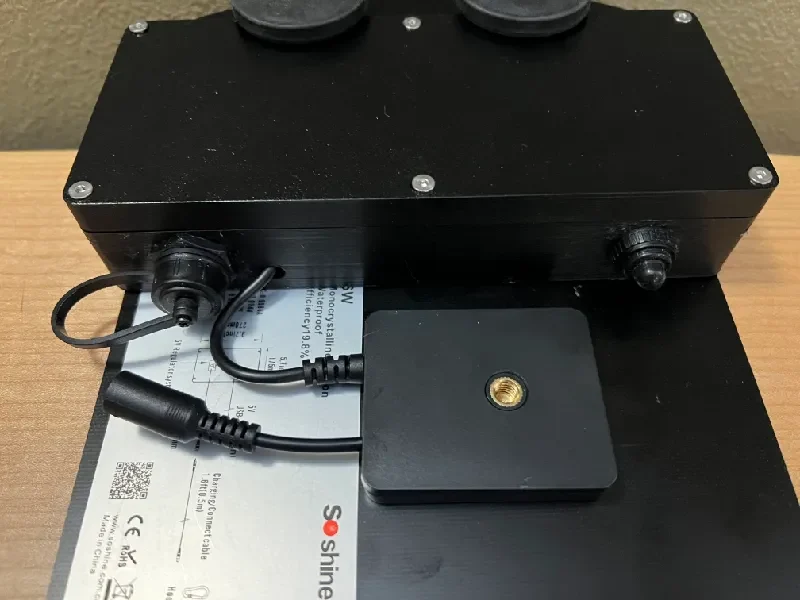

4 Count M5 45mm stainless steel bolts to secure solar panel with 4 1/4 Inch Flat Washers Stainless Steel https://a.co/d/0iEkisS and https://a.co/d/ektCVut
Stainless Steel M3 x 16mm bolts For Lid https://a.co/d/f4wmKMA
Brass Knurled Nuts M3 x 5 For Main Body https://a.co/d/4FVT9gJ

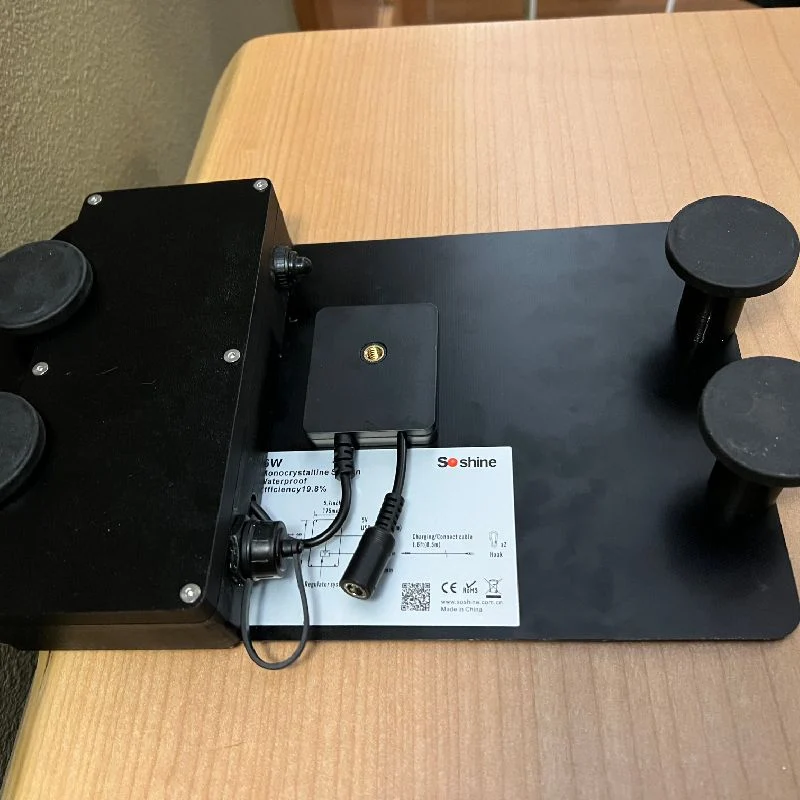

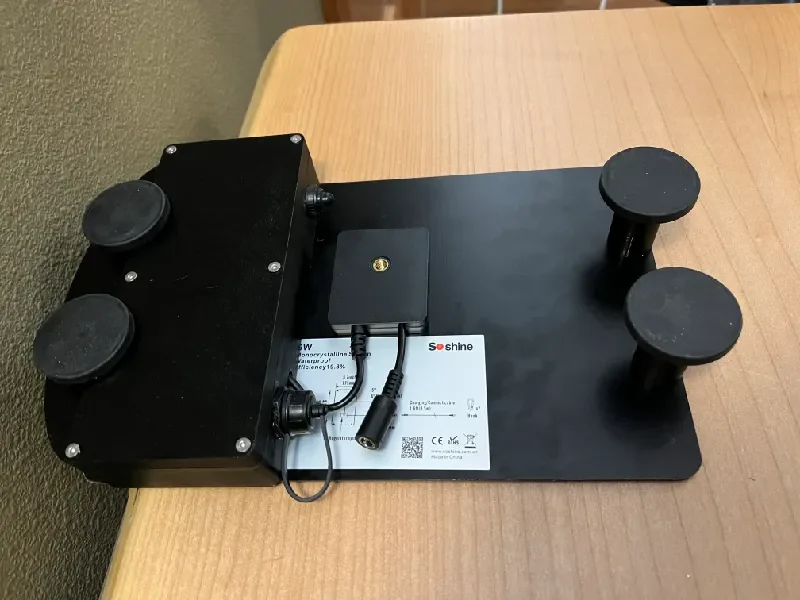

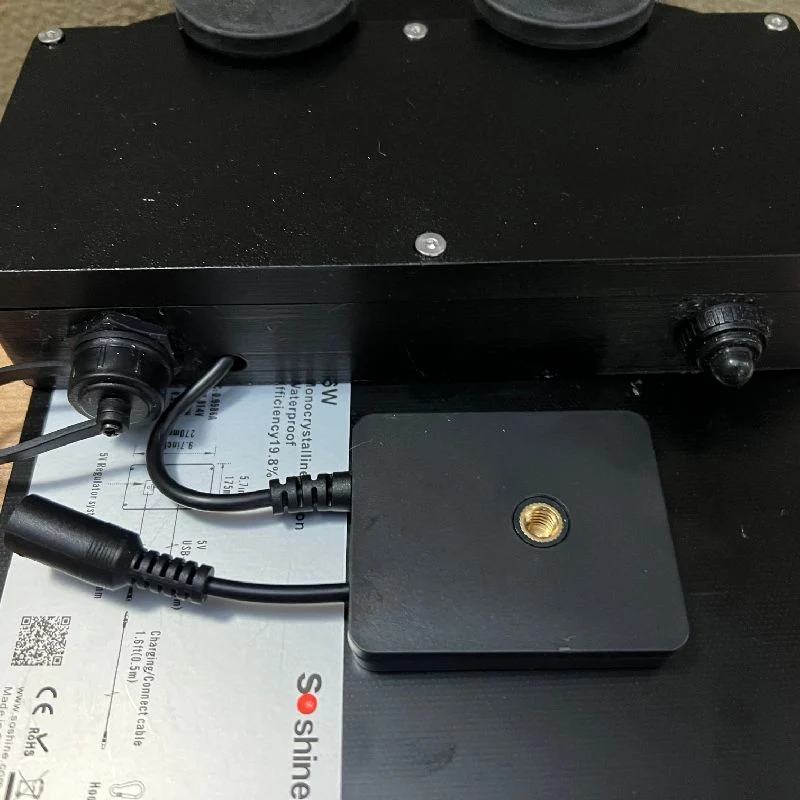

Magnets M5 Threaded https://a.co/d/e0e3Yzq
USB-C Extension https://a.co/d/dw0DSHc
On/Off Button https://a.co/d/dFAsXx4
Silicone Foam Seal Strip, 1mm for lid https://a.co/d/aSp7JNY
I recommend printing the infill at 100% to help make it waterproof. and siliconing every edge or cutout that may leak. I also placed a thin/strong double-sided tape between the solar panel and the top piece on the end without bolts near it. That will provide enough strength to avoid any separation. Enjoy!.
